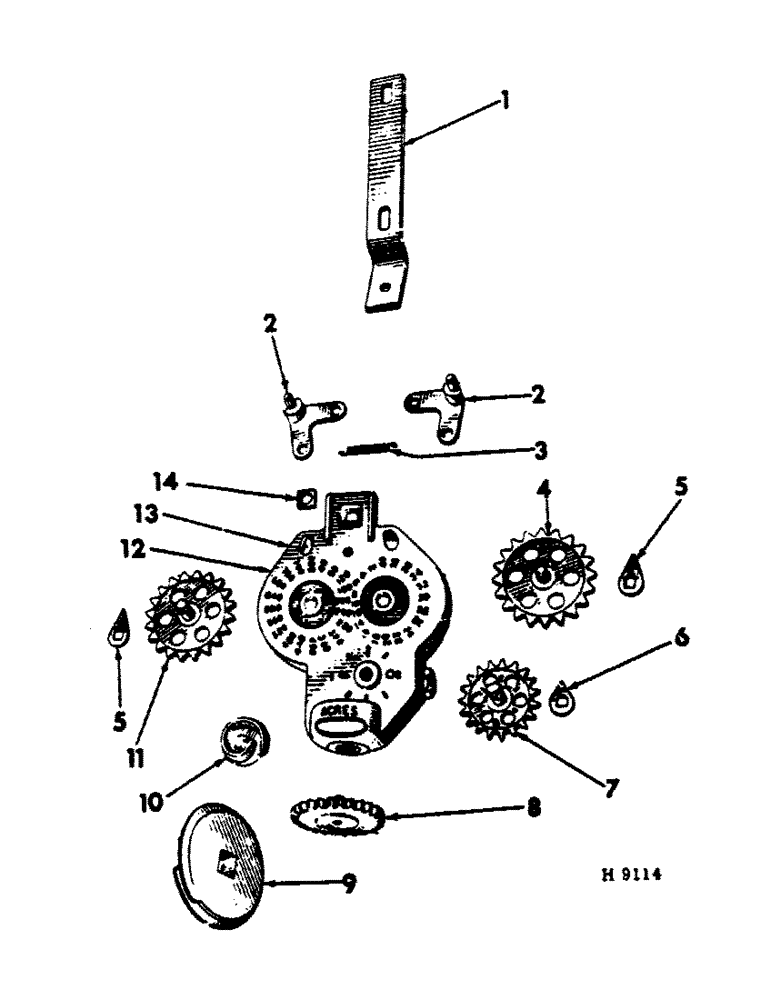

Запчасти Case IH 100 (B-14) - LAND MEASURE

1

604248R2

BRACKET, land measure

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

510579R1

WASHER

13/32 X 1-1/4 X 16 GA WASHER (14 x 6 & 24 x 7)

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

N2591

STOP, land measure gear

2шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 X 1-1/8" RD-HD RIVET

1шт.

3

N62683

SPRING

gear stop

1шт.

4

N2586

GEAR, 20T 2-40 acres measure

1шт.

Q3641

WASHER

13/32 X 3/4 X 22 GA WASHER

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

N62677

POINTER, indicator long

2шт.

6

N62678

POINTER, indicator short

1шт.

7

N2585

GEAR

19T worm

1шт.

Q3641

WASHER

13/32 X 3/4 X 22 GA WASHER

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

8

620960R1

GEAR, 30T outside (10 x 6)

1шт.

8

620961R1

GEAR

22T outside (12 x 6, 24 x 6 & 20 x 7)

1шт.

8

N2589

GEAR

26T outside (12 x 6, 24 x 6 & 20 x 7)

1шт.

8

620403R1

GEAR

38T outside (16 x 6)

1шт.

13268R1

1/4 X 1-1/4" SQ-HD BOLT

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

9

604420R1

GEAR

WORM, land measure

1шт.

10

N2588

CAM, inside worm LH

1шт.

13268R1

1/4 X 1-1/4" SQ-HD BOLT

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

11

N2587

GEAR, 20T 40-800 acres measure

1шт.

107762

WASHER,3/32" x 5/8"

GEAR, 20T 40-800 acres measure

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

12

604245R1

CASE, (10 x 6, 12 x 6 & 14 x 6)

1шт.

12

604246R1

CASE, (24 x 6, 20 x 7, 24 x 7 & 16 x 6)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

1шт.

129-410

WING NUT,3/8"-16

3/8" WING NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

604504R91

LAND MEASURE, 10 x 6 (See note)

1шт.

13

604249R91

LAND MEASURE, 12 x 6 (See note)

1шт.

13

604250R91

LAND MEASURE, 14 x 6 (See note)

1шт.

13

604251R91

LAND MEASURE, 24 x 6 & 20 x 7 (See note)

1шт.

13

604252R91

LAND MEASURE, 24 x 7 (See note)

1шт.

13

609204R92

LAND MEASURE, 16 x 6 (See note)

1шт.

14

N62810

NUT, lock

1шт.
