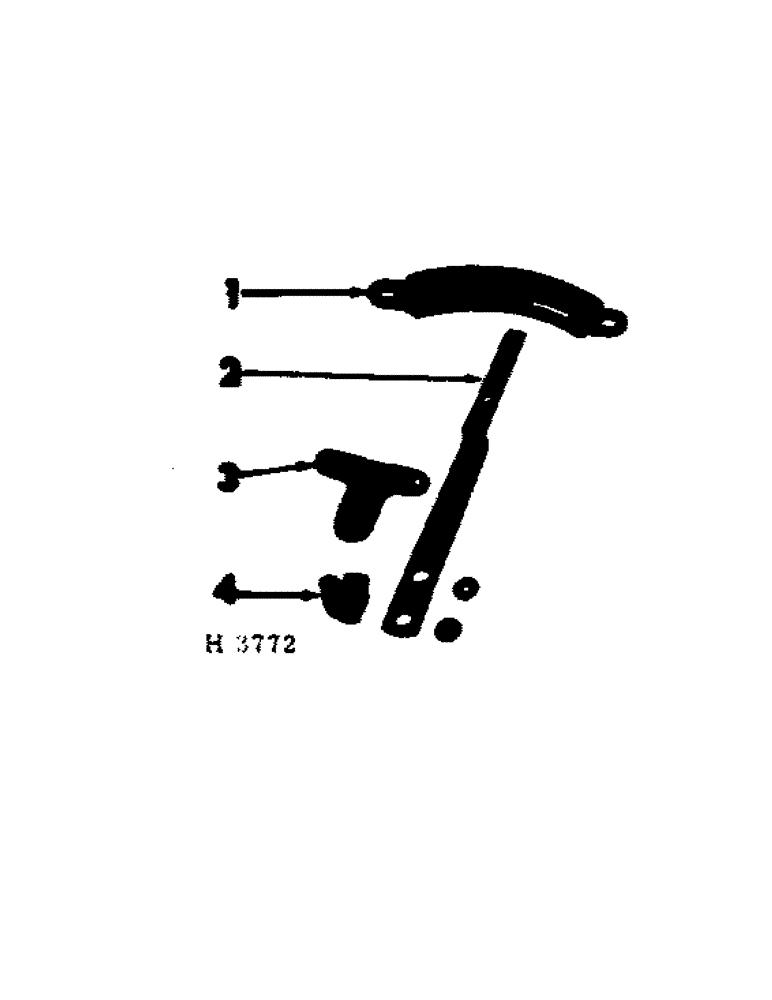

Запчасти Case IH 100 (B-13) - GRAIN FEED SHIFTER, 10 X 6 PRIOR TO 1964 SEASON, 16 X 6 SIZE, 1964 SEASON ONLY

1

603126R1

PLATE, grain indicator 6"

1шт.

1

603127R1

INDICATOR

PLATE, grain indicator 7"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

603258R1

ARM

SHIFTER, grain feed shaft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

142745

NUT, WING

5/16" WING NUT

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

103916

5/16 X 1" WB-HD RIVET

1шт.

3

603128R1

BRACKET, grain feed shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

15542R1

5/16 X 3/4" NO. 3 PLOW BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

602164R1

FORK, feed shaft shifter

1шт.

14035R1

5/16 X 1-1/2" - 74 DEGREE CSK-HD RIVET

1шт.

20893R1

WASHER

11/32 X 1 X 11 GA WASHER

1шт.
