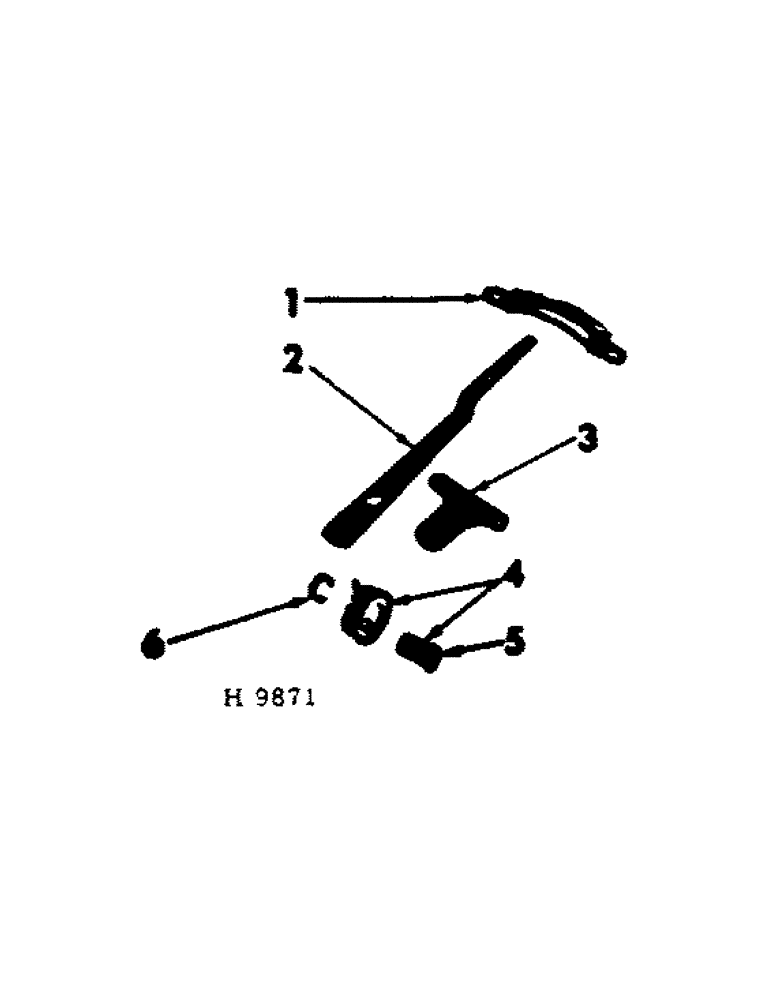

Запчасти Case IH 100 (B-13[1]) - GRAIN FEED SHIFTER, 16 X 6 FOR 1964 AND SINCE, OTHER SIZES 1965 AND SINCE

1

603126R1

PLATE, grain indicator 6"

1шт.

1

603127R1

INDICATOR

PLATE, grain indicator 7"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

609381R91

LEVER

SHIFTER, grain feed shaft lever

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

7500032

BUSHING

5/16" WING NUT

1шт.

3

603128R1

BRACKET, grain feed shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

15542R1

5/16 X 3/4" NO. 3 PLOW BOLT

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

NLS

NO LONGER SERVICED

5/16" JAM NUT

1шт.

120376

NUT,5/16"-18, G5

2шт.

12214

BOOM

5/16" LK-WASHER

4шт.

4

609384R91

THRUST BEARING

fed shifter (Includes 609388R1, spacer)

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

609388R1

SPACER

feed shifter housing nylon

1шт.

6

609389R1

SPACER

feed shifter brg

1шт.

816573C1

SHIM

grain feed shifter level (1969 season & since)

1шт.
