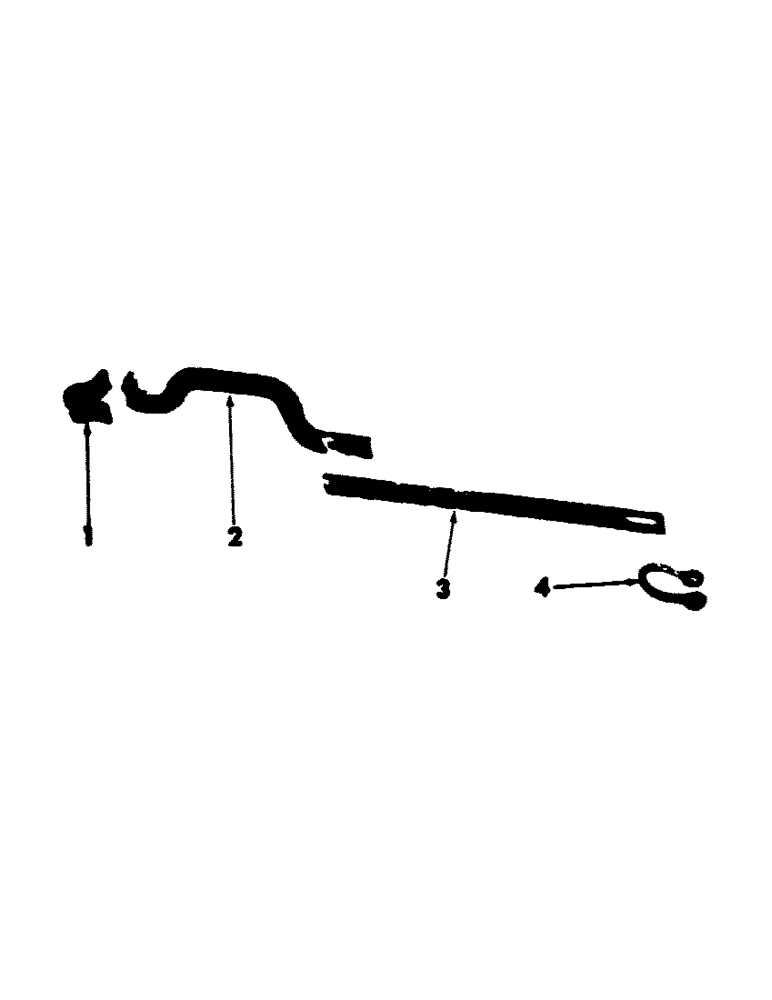

Запчасти Case IH 100 (B-12[1]) - FORECARRIAGE WHEEL DRAWBAR, 10 X 6, 12 X 6, 14 X 6 AND 16 X 6

1

604422R1

STRAP, connecting drawbar

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

604421R1

DRAWBAR, wheel

1шт.

3

601277R1

BAR, hitch

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 X 2-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

PO13563

CLEVIS COUPLING

CLEVIS, forecarriage wheel

1шт.

N42375

PIN

3/4 X 3-1/2" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.
