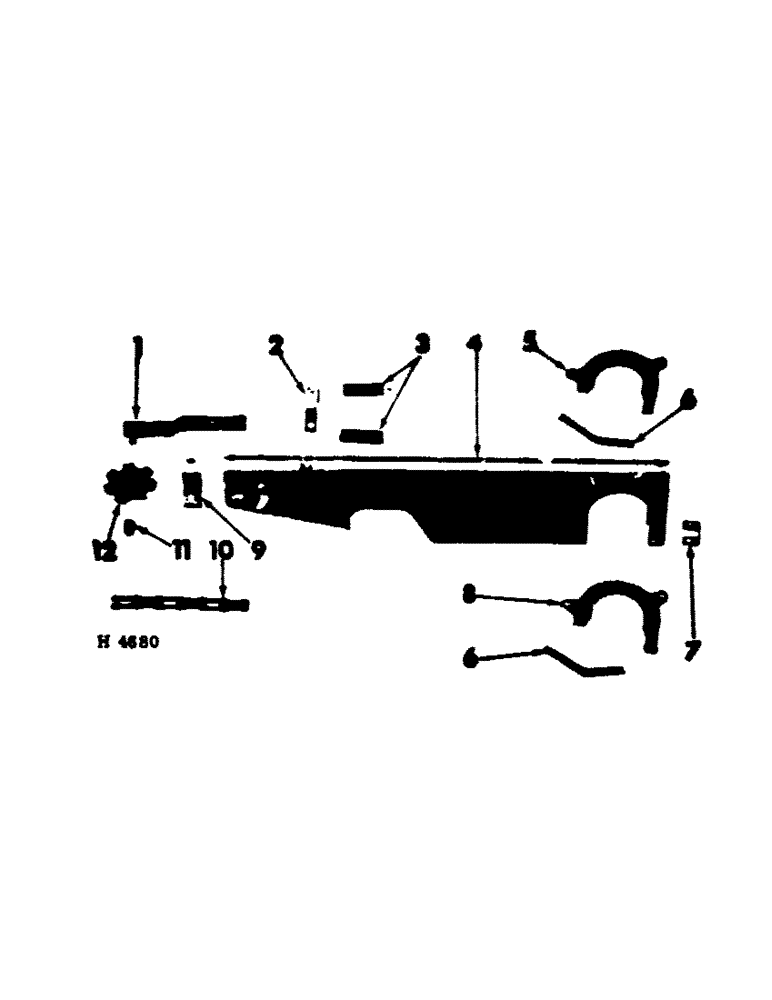

Запчасти Case IH 100 (B-11) - MAIN DRIVE CHAIN SHIELD AND TIGHTENER, PRIOR TO 1964, NOT 16 X 6

1

603981R11

ARM

chain tightener

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG

1шт.

104183

5/16 X 1" - 90 DEGREE CSK-HD RIVET

1шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

2

N62701

SADDLE, chain shield

1шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 X 5/8" B-HD RIVET

1шт.

3

2427-1

SPRING

chain shield

1шт.

108652

GIFTS, VACUUM FLASK

5/16 X 1-1/4" C-PIN (14 x 6)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

601266R2

SHIELD, main drive chain

1шт.

5

601225R1

SHIELD

BEARING, shield RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

605979R1

BRACE

STRAP, chain shield

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" BOLT

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

601241R1

CHANNEL

CLIP, chain shield

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

601226R1

SHIELD

BEARING, shield LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

604397R1

STIFFENER, chain shield

1шт.

10

CHAIN, 1-1/4" extended pitch agricultural type main drive (For service order 1 - 569089R91, 10 ft chain, reduce to 91 links, add 2 - 456929R91, offset links & 1 - 456980R91, connecting link)

1шт.

104181

RIVET

5/16 X 3/4" - 90 DEGREE CSK-HD RIVET

1шт.

10

CHAIN, 1-1/4" extended pitch agricultural type main drive (For service order 1 - 569089R91, 10 ft chain, reduce to 91 links, add 2 - 456929R91, offset links & 1 - 456980R91, connecting link)

1шт.

11

604344R1

BUSHING

chain tightener

1шт.

12

604342R1

SPROCKET ASSY.

SPROCKET, 7T chain tightener

1шт.
