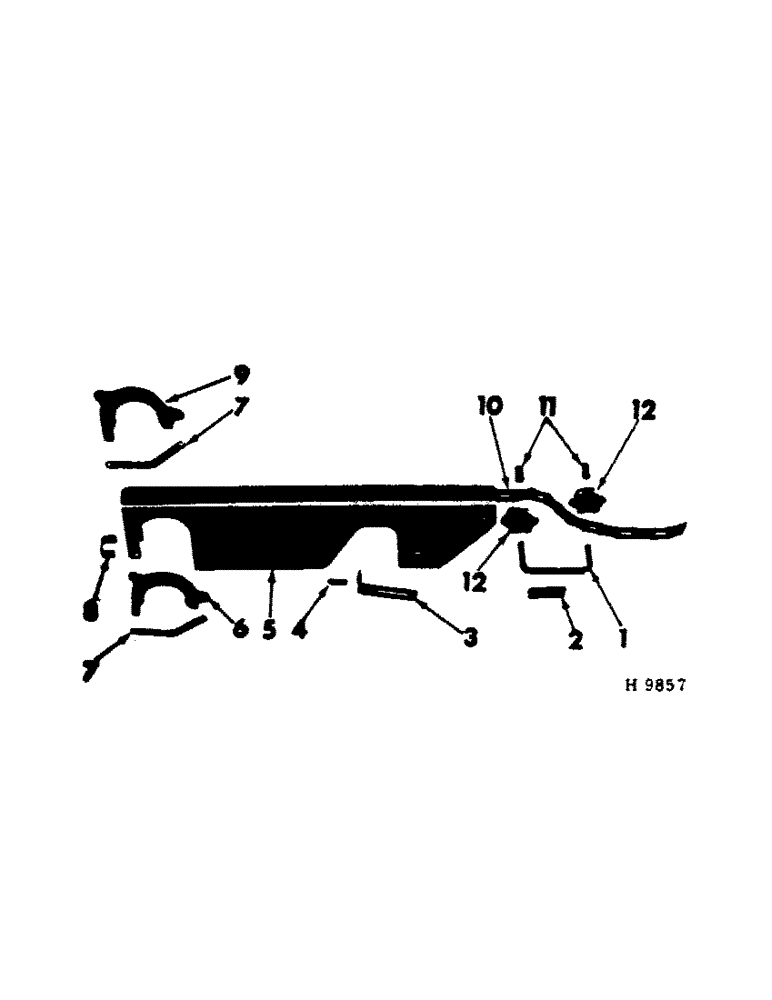

Запчасти Case IH 100 (B-11[1]) - MAIN DRIVE CHAIN SHIELD AND TIGHTENER, 1964 AND SINCE
№
Артикул
Название
Примечание
Количество
1
609392R1
ROD
chain tightener
1шт.
178373R1
WASHER
17/32 X 1 X 16 GA WASHER
6шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
2
626206R1
SPRING
chain shield
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
3
609391R2
SUPPORT
chain shield
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 X 3/4" CRG BOLT
2шт.
469668R1
WASHER
13/32 X 3/4 X 16 GA WASHER
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
4
NA141
AXLE PIN,1/2" x 1 7/8"
PIN, 1/2 x 1-7/8" dld (12 x 6)
1шт.
4
W6001
PIN, 3/8 x 1-5/16" dld (14 x 6, 16 x 6)
1шт.
4
L1125
PIN, 3/8 x 1-3/16" dld (24 x 6, 20 x 7 & 24 x 7)
1шт.
469668R1
WASHER
13/32 X 3/4 X 16 GA WASHER
2шт.
178373R1
WASHER
17/32 X 1 X 16 GA WASHER (12 x 6)
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), (Not 12 x 6) 1/8" x 3/4"
1шт.
5
609390R1
SHIELD
main drive chain
1шт.
6
601225R1
SHIELD
BEARING, shield RH
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 X 3/4" BOLT
1шт.
598803R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd
5/16 X 1" CRG BOLT
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
7
605979R1
BRACE
STRAP, chain shield
2шт.
8
601241R1
CHANNEL
CLIP, chain shield
1шт.
9
601226R1
SHIELD
BEARING, shield LH
1шт.
NLS
NO LONGER SERVICED
5/16 X 3/4" BOLT
1шт.
598803R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd
5/16 X 1" CRG BOLT
1шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
10
CHAIN, 1-1/4" extended pitch agricultural type main drive (Order 1 - 56989R91, 10 ft chain reduce to 91 links, add 2 - 456929R91, offset links & 1 - 456980R91, connecting link)
1шт.
11
603328R1
BUSHING
chain tightener sprocket
2шт.
12
603327R1
NO LONGER SERVICED
SPROCKET, 6T chain tightener
2шт.
Выбрано товаров: 34
