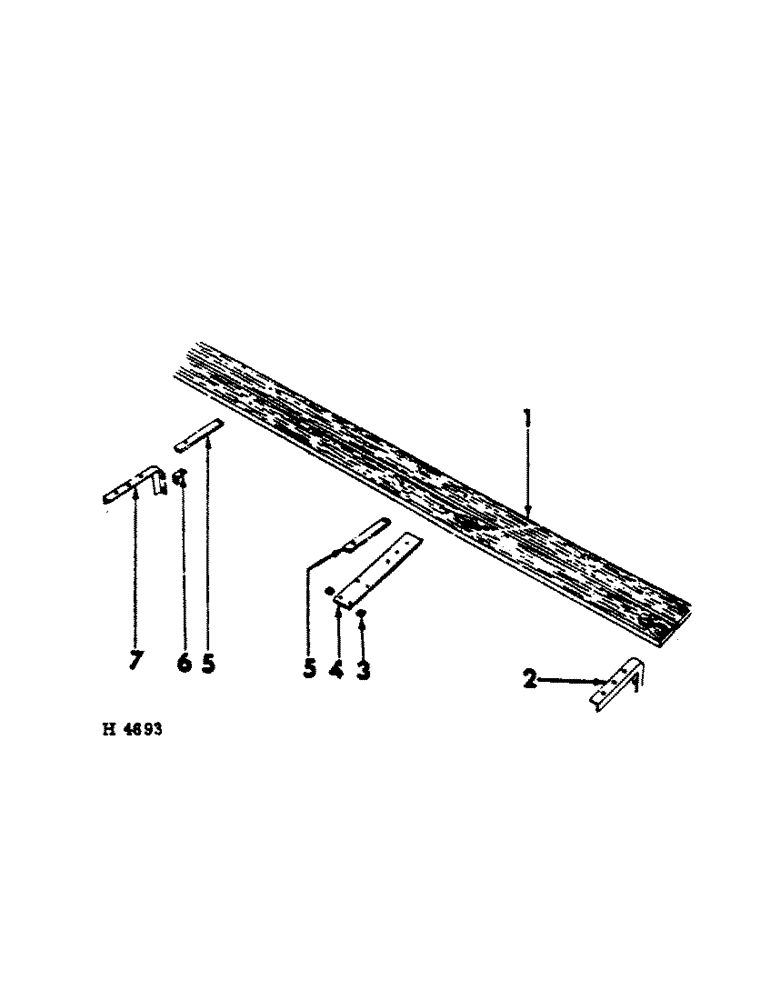

Запчасти Case IH 100 (B-09) - TWO BOARD FOOTBOARD, PRIOR TO JUNE 1965

1

604489R1

FOOTBOARD (10 x 6)

2шт.

1

604118R1

FOOTBOARD (12 x 6)

2шт.

1

604119R1

FOOTBAORD (14 x 6)

2шт.

1

609184R1

FOOTBOARD (16 x 6)

2шт.

1

604120R1

FOOTBOARD (24 x 6)

1шт.

1

604121R1

FOOTBOARD (20 x 7)

2шт.

1

604122R1

FOOTBOARD (24 x 7)

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 X 1-3/4" CRG BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

5/8" NUT

2шт.

2

604117R1

ANGLE, support outer RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

603901R1

WASHER

tapered special (Not 16 x 6)

1шт.

4

604114R1

SUPPORT, intermediate (Not 16 x 6)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

603773R1

EXTENSION, footboard

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT (Not intermediate)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT (Intermediate only)

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 X 1-3/4 CRG BOLT

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8 X 2" CRG BOLT

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

3/8 X 2-1/4" CRG BOLT (Intermediate only for 16 x 6, 24 x 6, 20 x 7 & 24 x 7)

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

604115R1

SUPPORT, angle (16 x 6, 24 x 6, 20 x 7 & 24 x 7)

1шт.

3

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

604116R1

ANGLE, support outer LH & center

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

16038R1

WASHER

17/38 X 1 X 11 GA WASHER (Center)

1шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER (Center)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
