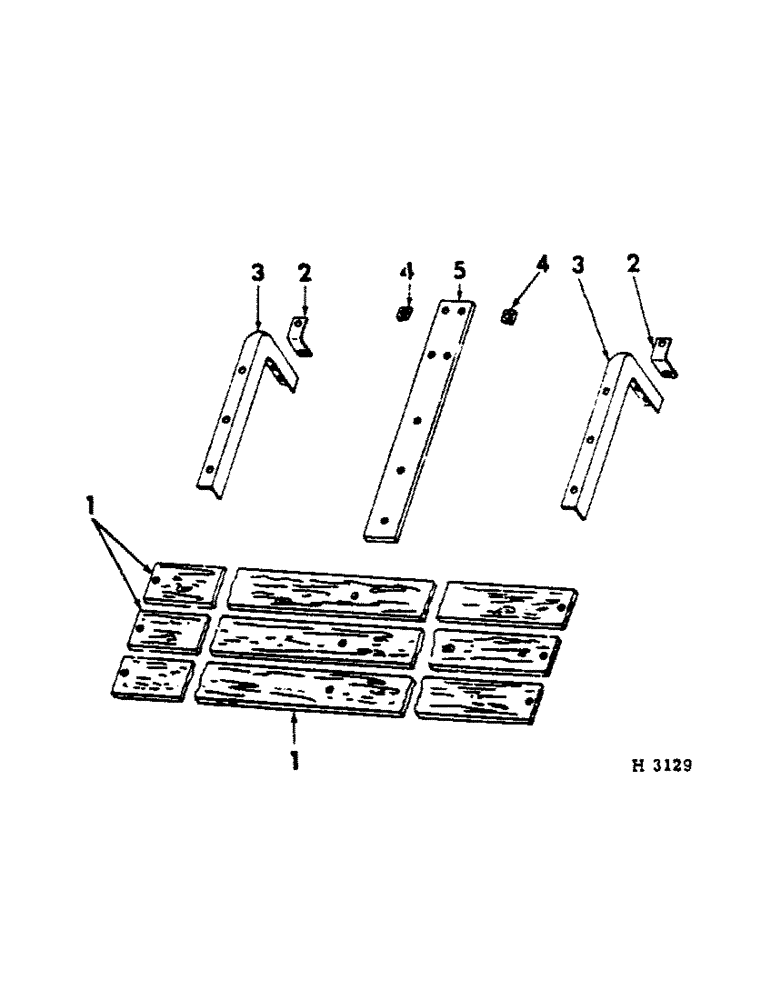

Запчасти Case IH 100 (B-09[1]) - THREE BOARD FOOTBOARD, JUNE 1965 AND SINCE

1

604118R1

FOOTBOARD (12 x 6)

3шт.

1

604119R1

FOOTBOARD (14 x 6)

3шт.

1

609184R1

FOOTBOARD (16 x 6)

3шт.

1

604120R1

FOOTBOARD (24 x 6)

3шт.

1

604121R1

FOOTBOARD (20 x 7)

3шт.

1

604122R1

FOOTBOARD (24 x 7)

3шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT

3шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 X 1-3/4" CRG BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

3/8" NUT (1 used per bolt)

1шт.

2

604115R1

SUPPORT, angle (1 used 24 x 6, 20 x 7 & 24 x 7) (2 used 16 x 6 w/double rockshaft)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

1шт.

16038R1

WASHER

17/32 X 1 X 11 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

592735R1

ANGLE, footboard support (1 used 10 x 6) (2 used 12 x 6 & 14 x 6) (3 used 24 x 6, 20 x 7 & 24 x 7) (4 used 16 x 6)

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

603901R1

WASHER

special tapered (Not 16 x 6) (4 used 10 x 6, 12 x 6 & 14 x 6) (8 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

5

592734R1

SUPPORT, intermediate (Not 16 x 6) (1 used 10 x 6, 12 x 6 & 14 x 6) (2 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(24 x 6, 20 x 7 & 24 x 7) Hex, 3/8"-16 x 1 3/4", G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
