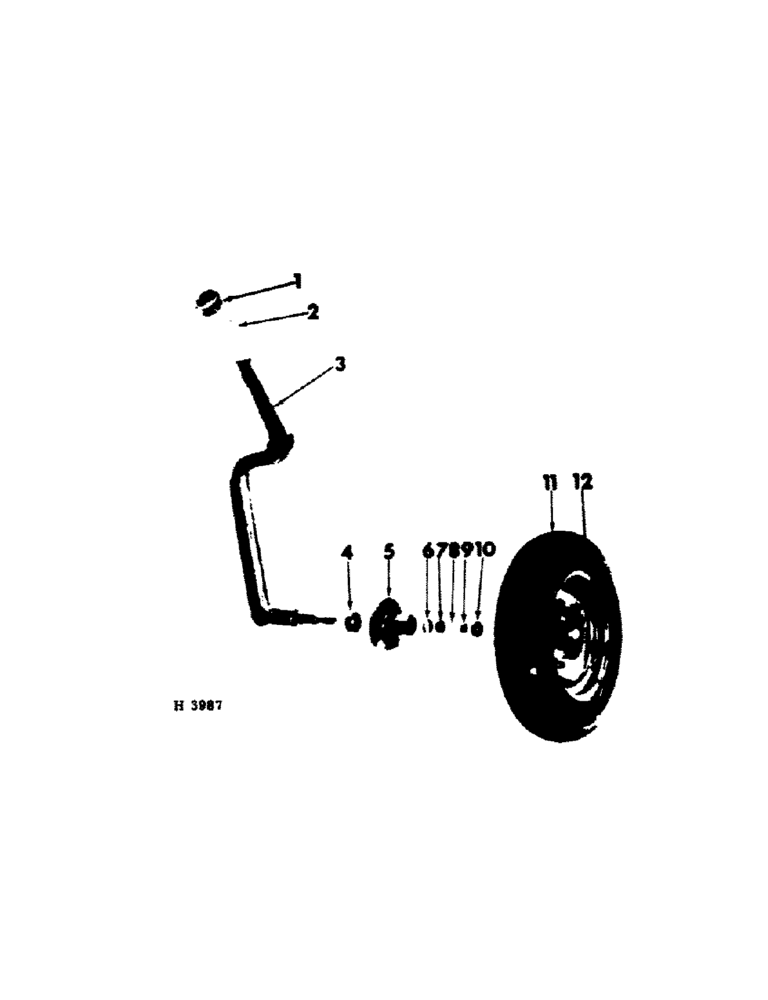

Запчасти Case IH 100 (B-08) - FORECARRIAGE WHEEL

1

619930R1

BUSHING

wheel pivot

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

2

Q3861

WASHER, 2-1/32 x 2-3/4 x 11 ga (10 x 6, 12 x 6, 14 x 6 & 16 x 6)

1шт.

3

619931R91

AXLE

wheel LH (Shown)

1шт.

3

619932R91

AXLE

wheel RH (24 x 6, 20 x 7 & 24 x 7)

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

wheel inner

1шт.

5

619353R1

HUB

forecarriage wheel

1шт.

6

651814R1

BEARING CUP

CUP, hub outer brg

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, hub outer brg

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x .134" ga

1шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" - NF slt

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

10

602959R1

PLUG

CAP, wheel hub

1шт.

11

TIRE & TUBE, 6.70 x 15" implement

1шт.

11

TIRE & TUBE, 8.00 x 14" implement

1шт.

11

TIRE & TUBE, 5.90 x 15" implement

1шт.

12

455169R92

WHEEL

15 x 4-1/2 KB (Opt w/463036R1)

1шт.

12

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5 KB (Opt w/455169R92)

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 - NF X 7/8" WHEEL BOLT (4 per wheel)

1шт.
