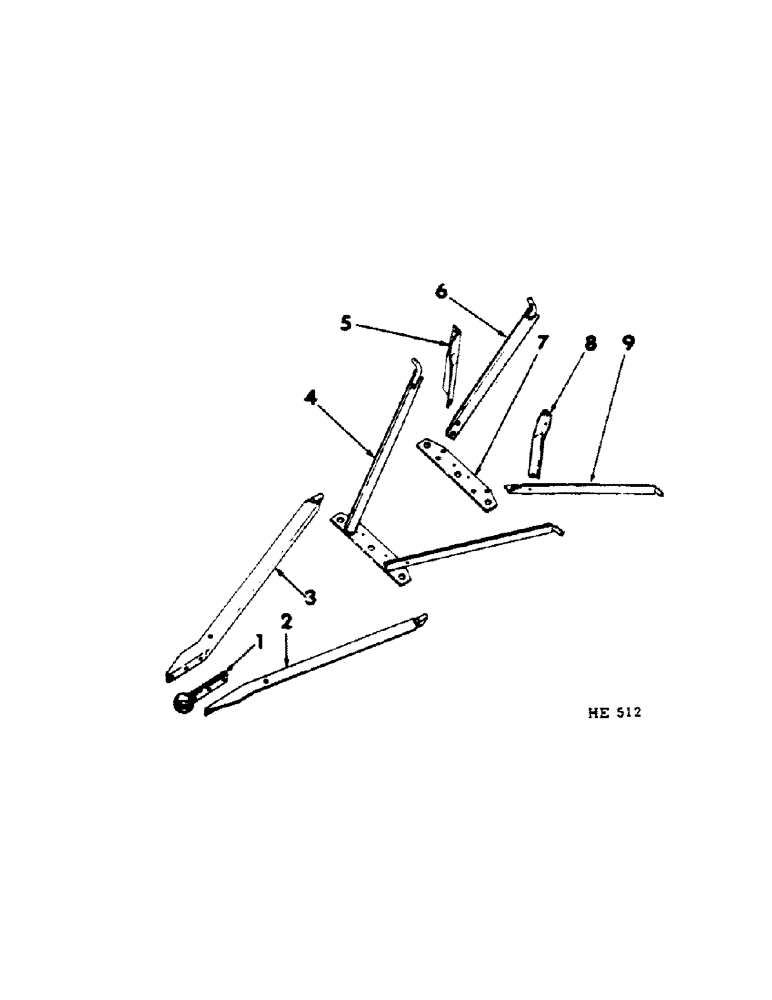

Запчасти Case IH 100 (B-08[1]) - FORECARRIAGE DRAWBAR, 24 X 6, 20 X 7 AND 24 X 7

1

NA42030

DRAWEYE, hitch

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

2

600889R1

ANGLE, hitch LH

1шт.

3

600890R1

ANGLE, hitch RH

1шт.

150724C1

SPLIT PIN/SAFETY PIN

QUICK-ATTACHABLE C-PIN

2шт.

4

606369R91

ANGLE, hitch (1962 & since)

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

4шт.

5

604026R1

BRACE, hitched angle RH

1шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16 X 7/8" BOLT

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

664646R1

LOCK NUT,7/16"-14, GB

7/16" TWO-WAY LK-NUT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

604014R1

ANGLE, hitch RH (1959-1962)

1шт.

NLS

NO LONGER SERVICED

5/8 X 1-3/4" BOLT

2шт.

604339R1

5/8" TWO-WAY LK-NUT

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

2шт.

7

600882R1

PLATE, hitch drawbar (1959-1962)

1шт.

8

604025R1

BRACE, hitch angle LH

1шт.

180144

RETAINER

7/16 X 7/8" BOLT

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

664646R1

LOCK NUT,7/16"-14, GB

7/16" TWO-WAY LK-NUT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

9

604013R11

ANGLE, hitch LH (1959-1962)

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 X 1-3/4" BOLT

2шт.

604339R1

5/8" TWO-WAY LK-NUT

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.
