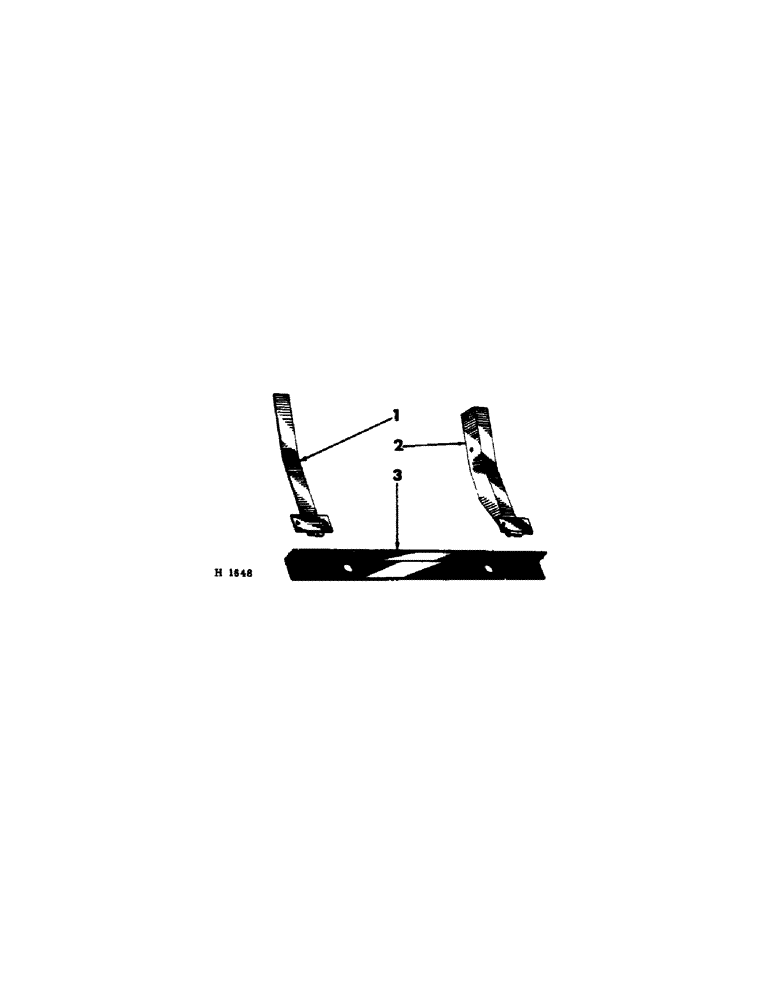

Запчасти Case IH 100 (B-07[1]) - TWO DRILL TRANSPORT YOKE, SPECIAL

1

601870R91

YOKE, transport LH

1шт.

2

601871R91

YOKE, transport RH

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

7/16 X 2-1/4" BOLT

4шт.

NLS

NO LONGER SERVICED

7/16" NUT

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

3

601867R1

DRAWBEAM, transport yoke

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

4шт.

271501

SOCKET

7/16" NUT

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.
