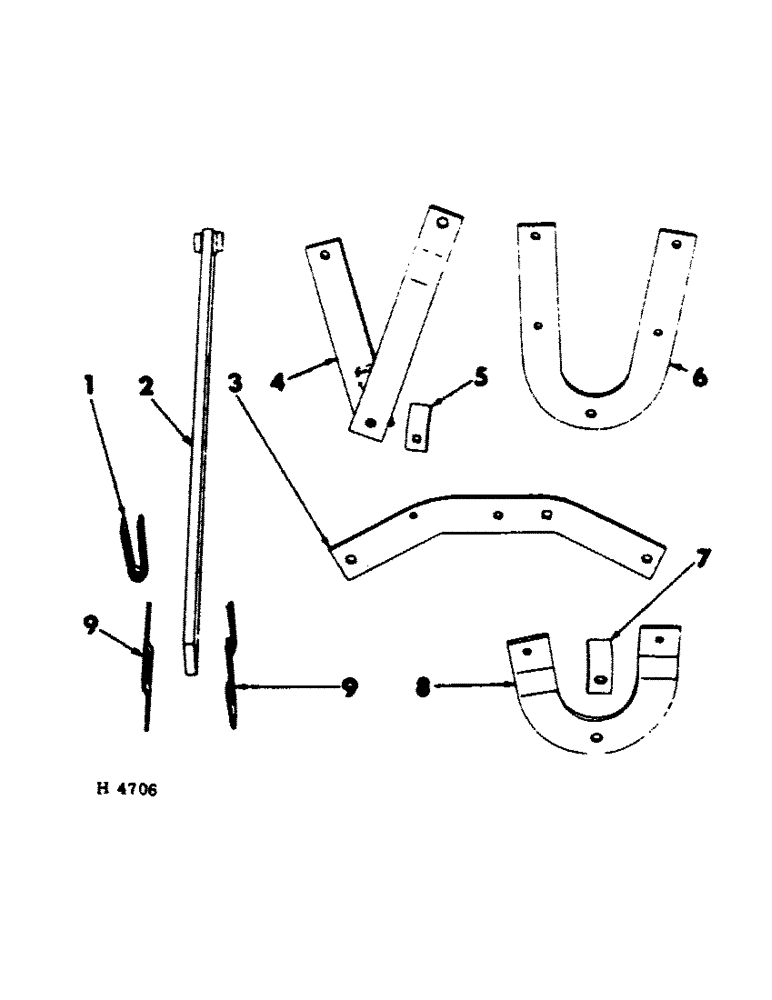

Запчасти Case IH 100 (B-06) - DRAWBARS AND EVENERS, 10 X 6, 12 X 6, 14 X 6, AND 16 X 6

1

604061R1

CLEVIS

gang drawbar

4шт.

110435

LINK

7/16 X 1-1/4" B-HD RIVET

4шт.

PG141

PIN

1/2 X 2" STD-HD-DLD PIN

4шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

2

604049R91

DRAWBAR, press wheel (4 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6)

1шт.

3

603941R1

BAR, evener (12 x 6)

2шт.

3

603942R1

BAR, evener (10 x 6 & 14 x 6)

2шт.

3

609162R1

BAR, evener (16 x 6)

2шт.

Q1396

AXLE PIN,1/2" x 1 5/8"

1/2 X 1-5/8" STD-HD-DLD PIN

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

604043R91

SUPPORT, evener RH (1 used 10 x 6) (2 used 14 x 6 & 16 x 6)

1шт.

4

604484R91

SUPPORT, evener LH (10 x 6) (Shown)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

605185R1

SLIDE, main chain (10 x 6, 14 x 6 & 16 x 6) (1960 - 1964)

1шт.

605291R1

3/8 X 1-1/4" SPECIAL CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

603950R1

SUPPORT, evener (12 x 6)

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 X 1-1/8" B-HD RIVET

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

605186R1

SLIDE, main chain (12 x 6) (1960 - 1964)

1шт.

M609-1/2

1/2 X 1-3/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

603951R1

BRACE, evener support (12 x 6)

2шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 X 1-1/8" B-HD RIVET

2шт.

9

603961R1

HANGER

gang axle drawbar

8шт.

180140

7/16 X 1-1/2" BOLT

4шт.

271501

SOCKET

7/16" NUT

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

1003902R2

CHART, 6" drill grain sowing

1шт.

1003903R1

CHART, 7" drill grain sowing

1шт.

1003904R2

CHART, 6" drill fertilizer sowing

1шт.

1003905R2

CHART, 7" drill fertilizer sowing

1шт.

1003906R1

CHART, 6" drill grass seed sowing

1шт.

1003907R1

CHART, 7" drill grass seed sowing

1шт.

2753809R1

PRODUCT GRAPHIC

seeding rate (For speed reducer attachment)

1шт.

2752020R1

PRODUCT GRAPHIC

"IH"

2шт.

2752017R1

PRODUCT GRAPHIC

"IH" (Grass hopper)

1шт.

2752314R1

DECAL

PRODUCT GRAPHIC, "International"

1шт.
