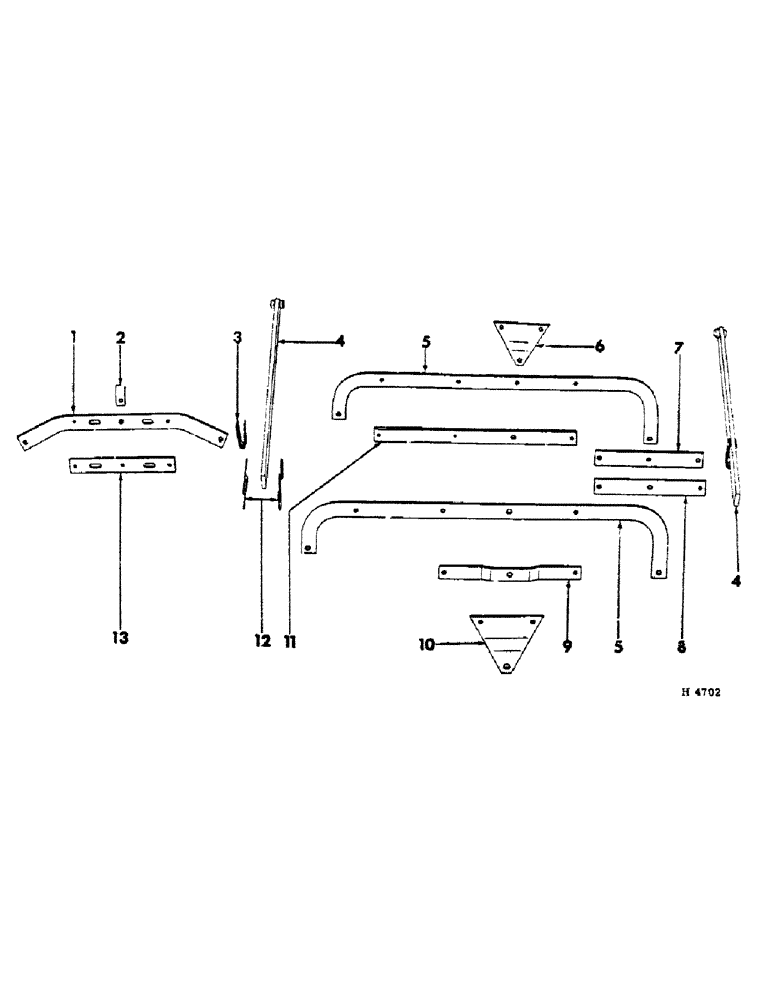

Запчасти Case IH 100 (B-05) - DRAWBARS AND EVENERS, 24 X 6, 20 X 7 AND 24 X 7

1

603943R1

BAR, center evener (24 x 6)

1шт.

1

603945R1

BAR, center evener (20 x 7 & 24 x 7)

1шт.

604321R1

DOWEL

1/2 X 1-3/4" STD-HD-DLD PIN

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

605185R1

SLIDE, main chain (1960-1964)

1шт.

605291R1

3/8 X 1-1/4" SPECIAL CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

N62606

CLEVIS

gang drawbar

6шт.

110435

LINK

7/16 X 1-1/4" B-HD RIVET

1шт.

PG141

PIN

1/2 X 2" STD-HD-DLD PIN

1шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

604049R91

DRAWBAR, press wheel (24 x 6)

6шт.

4

604050R91

DRAWBAR, press wheel (20 x 7 & 24 x 7)

6шт.

5

603936R1

BAR, equalizer (24 x 6)

4шт.

5

603937R1

BAR, equalizer (20 x 7)

4шт.

5

603938R1

BAR, equalizer (24 x 7)

4шт.

6

603940R1

SUPPORT, equalizer rear

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

2шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

603944R1

BAR, outer evener (24 x 6)

2шт.

7

603946R1

BAR, outer evener (20 x 7)

2шт.

7

603947R1

BAR, outer evener (24 x 7)

2шт.

604321R1

DOWEL

1/2 X 1-3/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

603949R2

REINFORCEMENT, outer evener bar (24 x 6 & 24 x7)

2шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 X 1-1/8" B-HD RIVET

2шт.

9

603935R1

REINFORCEMENT, equalizer outer (24 x 6 & 24 x 7)

2шт.

134756

3/8 X 2-1/8" B-HD RIVET

1шт.

496496R1

HEADED PIN,5/8" x 2 3/4"

5/8 X 2-3/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

603939R1

SUPPORT, equalizer front

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

2шт.

271501

SOCKET

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

11

603933R1

REINFORCEMENT, equalizer inner (20 x 7)

2шт.

108084

SPARE PART

3/8 X 1-7/8" B-HD RIVET

3шт.

PR146

AXLE PIN,5/8" x 2 1/2"

5/8 X 2-1/2" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

603034R1

REINFORCEMENT, equalizer inner (24 x 6 & 24 x 7)

2шт.

108684

CROSS PIN

3/8 X 1-7/8" B-HD RIVET

1шт.

134756

3/8 X 2-1/8" B-HD RIVET

1шт.

496496R1

HEADED PIN,5/8" x 2 3/4"

5/8 X 2-3/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

603961R1

HANGER

gang axle drawbar

12шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

1шт.

NLS

NO LONGER SERVICED

7/16" NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

13

603948R1

REINFORCEMENT, center evener bar

1шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 X 1-1/8" B-HD RIVET

2шт.
