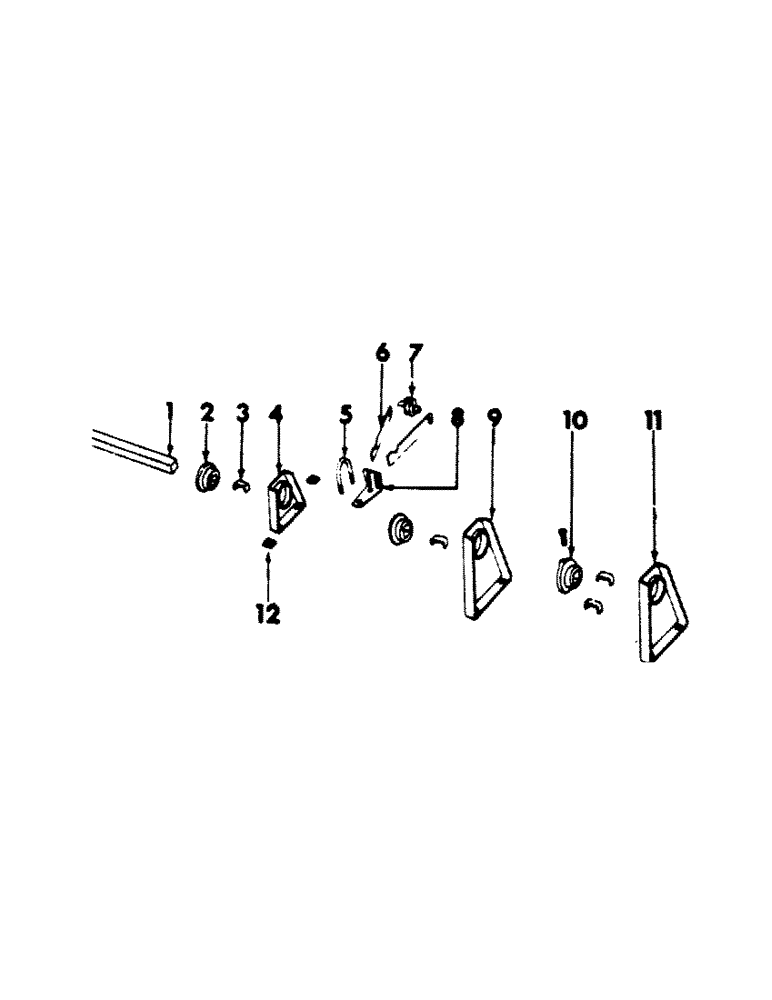

Запчасти Case IH 100 (B-04) - ROCKSHAFT AND LIFT ARM

1

ROCKSHAFT (10 x 6 - 59-1/2" long)

1шт.

1

603919R1

BAR

ROCKSHAFT (12 x 6 - 71-1/2" long)

1шт.

1

ROCKSHAFT (14 x 6 - 83-1/2" long)

1шт.

1

ROCKSHAFT (16 x 6 prior to June, 1966 - 47-1/2" long) (Double rockshaft)

2шт.

1

594763R1

ROCKSHAFT (16 x 6 June, 1966 & since - 95-1/2" long) (Single rockshaft)

1шт.

1

603919R1

BAR

ROCKSHAFT (24 x 6 - 71-1/2" long)

2шт.

1

ROCKSHAFT (20 x 7 - 68" long)

2шт.

1

ROCKSHAFT (24 x 7 - 81" long)

2шт.

2

603113R1

TRUNNION

rockshaft intermediate (2 used 16 x 6) (3 used 10 x 6, 12 x 6 & 14 x 6) (6 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

2

609175R1

BEARING

TRUNNION, rockshaft intermediate (2 used 16 x 6)

1шт.

3

603196R1

CHANNEL

CLIP, rockshaft trunnion (8 used 16 x 6) (10 used 10 x 6, 12 x 6 & 14 x 6) (20 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

4

603973R1

BRACKET

I-Beam rockshaft brg (1 used 10 x 6, 12 x 6 & 14 x 6) (2 used 16 x 6, 24 x 6, 20 x 7 & 24 x 7)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

603150R1

BOLT,3/8" - 16 x 2.8"

U-BOLT, lift arm (1 per feed cup)

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

603180R1

ARM

rockshaft lift (2 used per grain feed)

1шт.

7

NA2540

TRUNNION

lift arm (1 per feed cup)

1шт.

8

603179R1

CLAMP

lift arm (1 used per grain feed)

1шт.

9

603971R1

BRACKET

rockshaft brg inner (2 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) 6 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

603114R11

TRUNNION

rockshaft end (Includes 102906, screw) (2 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (4 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

102906

CAPSCREW

7/16 X 7/8" SQ-HD CUP-PT SCREW

1шт.

11

603972R1

BRACKET

rockshaft brg outer

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

603901R1

WASHER

tapered special (8 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6 w/single rockshaft) (10 used 16 x 6 w/double rockshaft) (16 used 24 x 6, 20 x 7 & 24 x 7)

1шт.
