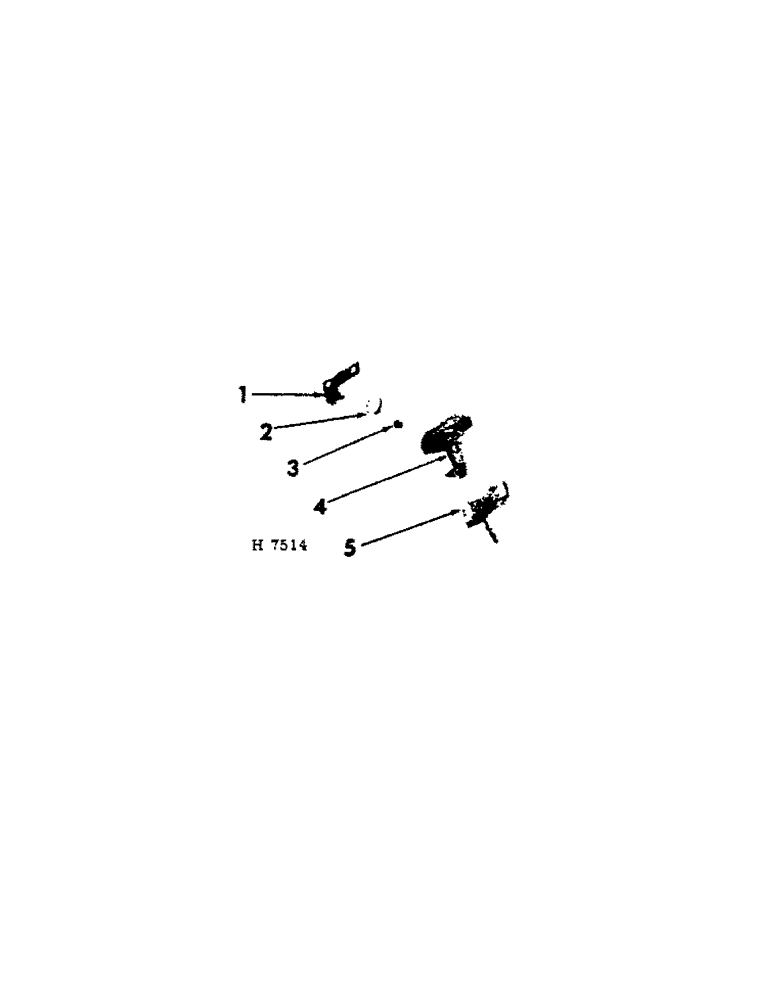

Запчасти Case IH 10 (D-03[2]) - LID FASTENER

1

604451R1

ANGLE

BRACKET, lid fastener

1шт.

120571

SCREW

1/4 X 1/2" SLT-TR-HD SCREW

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

2

604448R1

SPRING

cover fastener

1шт.

3

604447R1

BUSHING

cover fastener latch

1шт.

4

607222R1

LATCH, cover fastener

1шт.

120573

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 X 1" STL-TR-HD SCREW

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

5

607223R91

STOP, cover fastener

1шт.

18404R11

BOLT

1/4 X 5/8" C-Z CRG BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
