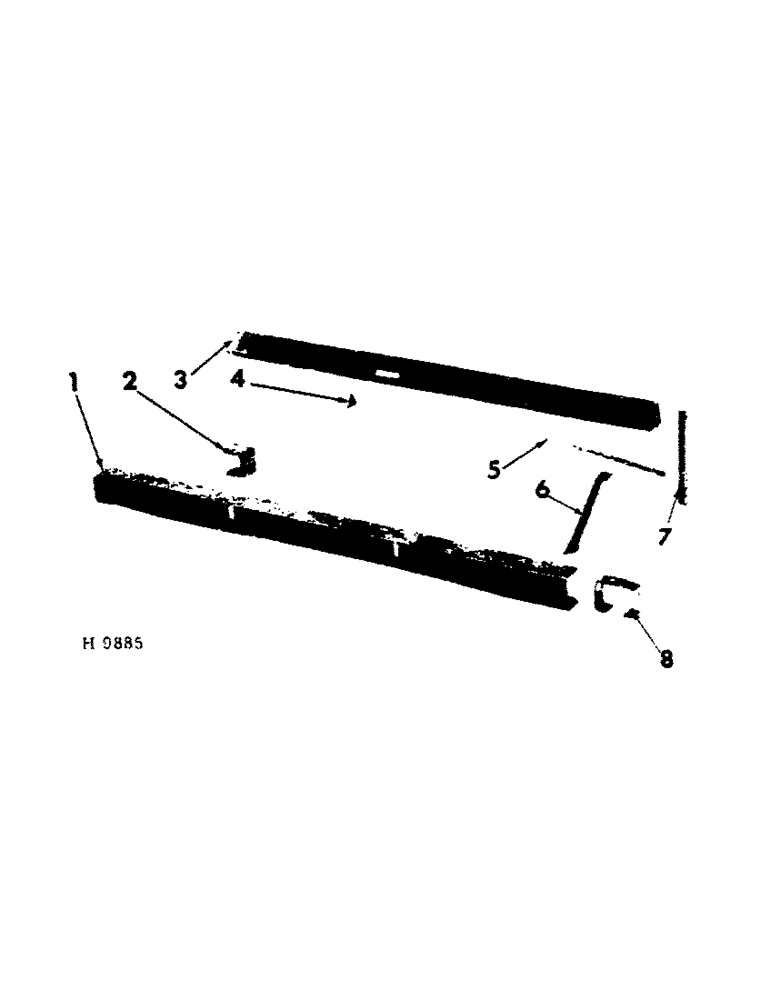

Запчасти Case IH 10 (D-02[1]) - FRAME

1

609429R1

CHANNEL

hitch

1шт.

2

609430R1

CHANNEL

hitch support

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" TYPE 2 C-Z BOLT

8шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" TYPE 2 C-Z BOLT

8шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

3

609453R1

GUIDE, pressure bar

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" TYPE 2 C-Z BOLT

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

4

609454R1

BRACE, pressure bar guide

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" TYPE 2 C-Z BOLT

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" TYPE 2 C-Z BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

609473R1

BAR, gauge wheel reinforcing

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

609445R1

BRACE, channel LH

1шт.

6

609446R1

BRACE, channel RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" TYPE 2 C-Z BOLT

4шт.

18695R11

BOLT

7/16 X 1-1/4" C-Z CRG BOLT W/NUT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

609471R1

ANGLE, gauge wheel adjusting LH

1шт.

7

609472R1

ANGLE, gauge wheel adjusting RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" TYPE 2 C-Z BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

609435R1

BRACKET

gauge wheel axle

2шт.

18421R11

SCREW

7/16 X 1" C-Z CRG BOLT W/NUT

6шт.

18695R11

BOLT

7/16 X 1-1/4" C-Z CRG BOLT W/NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.
