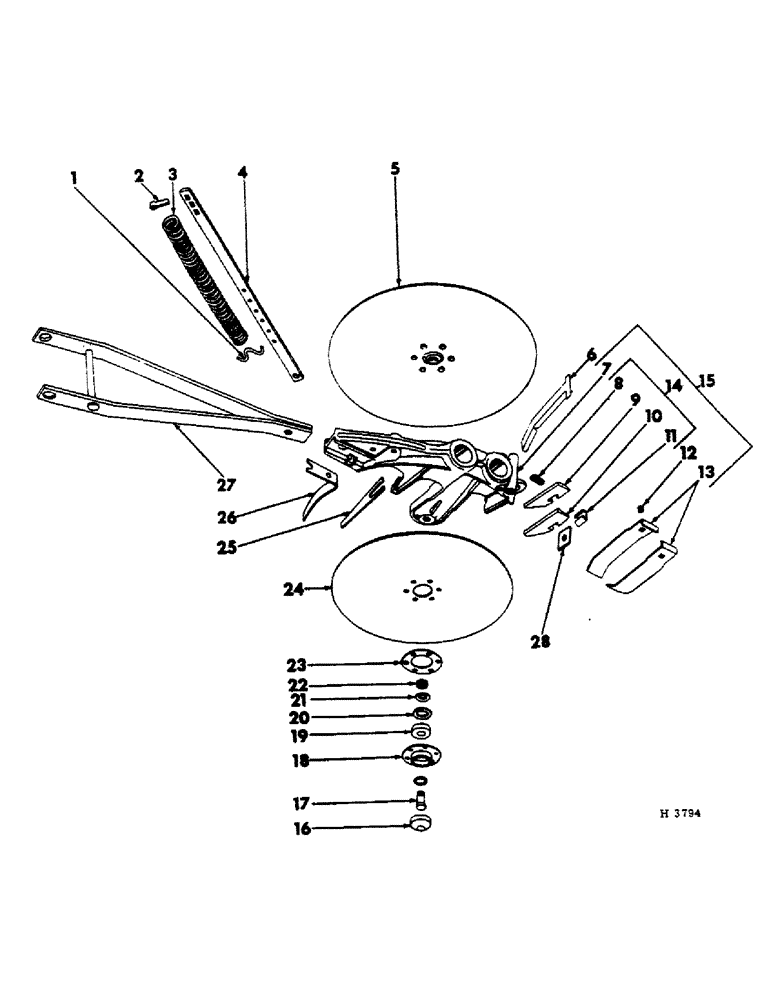

Запчасти Case IH 10 (D-16) - DOUBLE DISK FURROW OPENER

1

F6366

LOCK

pressure spg

1шт.

2

605964R1

CLIP

special flat cotter

1шт.

3

N42899

SPRING

pressure

1шт.

4

594206R1

BAR

front pressure spring

1шт.

4

594207R1

BAR

rear pressure spring

1шт.

594208R1

WASHER

SPECIAL SLOTTED WASHER

1шт.

1380S

PIN

5/16 X 1-3/4" STD-HD DLD PIN

1шт.

557265R1

WASHER

11/32 X 1 X 11 GA WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL (Includes parts reference no's 16 to 24 inclusive)

2шт.

6

603590R1

DEFLECTOR

fertilizer

1шт.

7

603663R2

BOOT

double disk

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

1-3/8" BUTTON PLUG

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" TYPE 2 C-Z BOLT

1шт.

271501

SOCKET

7/16" C-Z NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

14A

SPRING

inside scraper

1шт.

9

605975R1

BLADE

SCRAPER, inside LH

1шт.

10

605974R1

BLADE

SCRAPER, inside RH

1шт.

11

N62537

HINGE

inside scraper

1шт.

620723R1

BOLT

SPECIAL HINGE BOLT

1шт.

9413936

NUT,5/16"-24, GA

5/16" - NF SELF-LOCKING NUT

1шт.

Q398

WASHER

11/32 X 7/8 X 16 GA WASHER

1шт.

12

NA62774

SPRING

outside scraper

1шт.

13

601291R1

SCRAPER

outside

2шт.

15219R11

BOLT

5/16 X 4-1/4" CRG BOLT W/NUT

1шт.

14

603822R92

BLADE

SCRAPER, disk inside, Composed of

1шт.

620723R1

BOLT

1шт.

N62537

HINGE

1шт.

94139396

NUT

1шт.

605974R1

BLADE

SCRAPER

1шт.

605975R1

BLADE

SCRAPER

1шт.

N62538

KNIFE ASSY

SPREADER

1шт.

14A

SPRING

1шт.

Q398

WASHER

1шт.

15

603670R93

BOOT

double disk, Composed of

1шт.

15219R11

BOLT

1шт.

603663R2

BOOT

1шт.

601291R1

SCRAPER

2шт.

603822R92

BLADE

SCRAPER

1шт.

NA62774

SPRING

1шт.

16

603012R1

DUST CAP

CAP, dirt

2шт.

17

603010R1

BOLT (SPREADER)

BOLT (LH THREAD)

1шт.

17

603011R1

BOLT (SPREADER)

BOLT (RH THREAD)

1шт.

141706

WASHER

11/16" INT-T LK-WASHER

2шт.

18

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

brg

2шт.

19

602996R91

BEARING

disk

2шт.

20

602993R1

WASHER

SEAL, dirt

2шт.

21

602994R1

FLANGE

seal

2шт.

22

602988R1

SPACER

seal retainer

2шт.

23

602992R1

GASKET

paper

2шт.

24

603013R2

PLOW DISC

BLADE, double disk

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" B-HD RIVET

12шт.

25

N62294

DEFLECTOR

grain

1шт.

26

NA62293

GUARD ASSY.

GUARD, disk

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" TYPE 2 C-Z BOLT

1шт.

25-285

SQUARE NUT,Sq, 5/16"-18

5/16" SQ-NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

594202R91

BAR

DRAWBAR, front

1шт.

27

594203R91

DRAWBAR, rear

1шт.

28

N62538

KNIFE ASSY

SPREADER, inside scraper

1шт.
