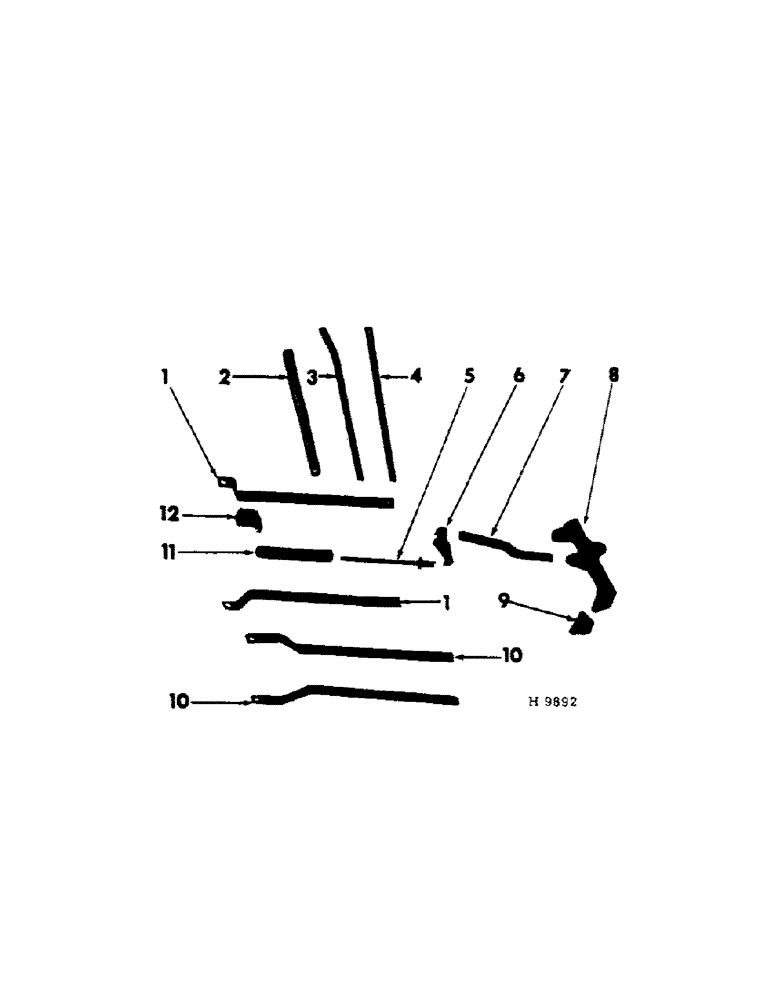

Запчасти Case IH 10 (D-14[2]) - HOE FURROW OPENER

1

609493R1

DRAWBAR, front

2шт.

2

N42899

SPRING

pressure bar

1шт.

3

609497R1

BAR

pressure spring (Curved)

1шт.

4

609496R1

BAR, pressure spring (Straight)

1шт.

605964R1

CLIP

PRESSURE SPG ROD CLIP

1шт.

F6366

LOCK

PRESSURE SPG LOCK

1шт.

V487-1/2

1/2 X 1-13/16" STD-HD-DLD PIN

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

29/32 X 1-3/4 X 11 GA C-Z WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

601860R91

SHAFT

PLUNGER, spg

1шт.

6

NB1521

LOCK

trip spg

1шт.

7

606430R11

LINK

trip front

1шт.

7

609495R11

LINK, trip rear

1шт.

SE235

HEADED PIN,3/8" x 1 1/8"

3/8 X 1-1/8" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

8

606429R2

BOOT

hoe furrow opener

1шт.

714257R1

3/8 X 1-9/16" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

9

606360R1

POINT

boot

1шт.

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

1/4 X 1-1/4" SLT-F-HD SCREW

1шт.

114380

NUT

1/4" SQ-NUT

1шт.

10

606426R2

BAR

DRAWBAR, rear

2шт.

B92-1/2

3/8 X 7/8" STD-HD-DLD PIN

1шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

600876R1

VALVE SPRING

SPRING, trip

1шт.

12

N256

SOCKET

BLOCK, spacer & guide

1шт.

180085

SPRING

5/16 X 1-3/4" TYPE 2 C-Z BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
