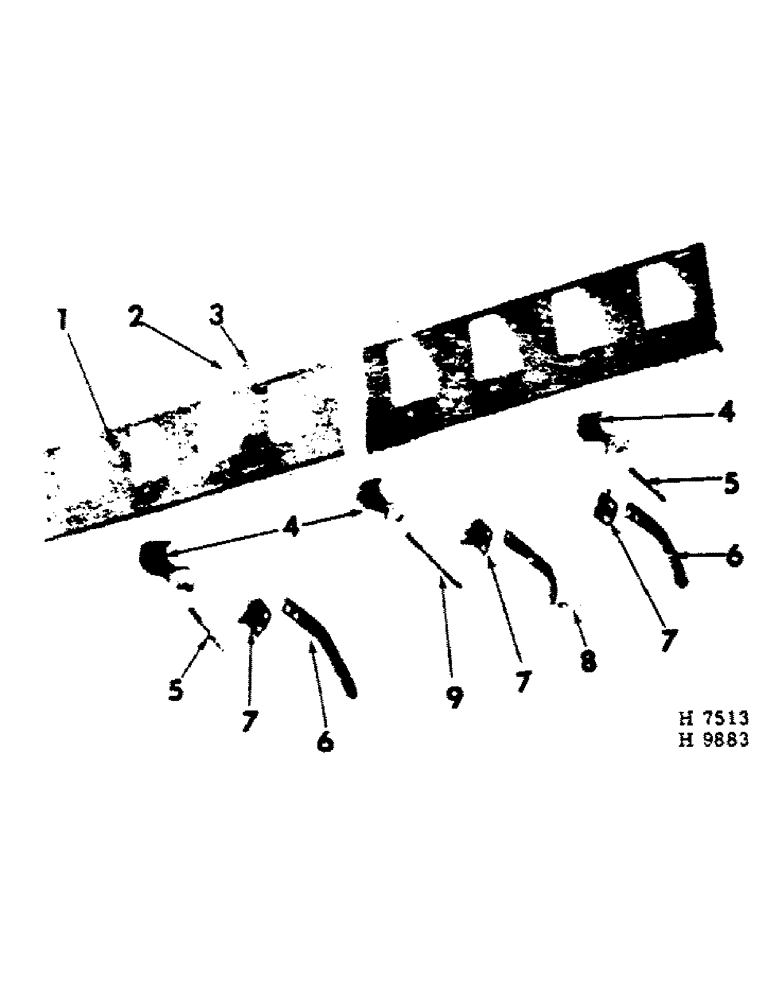

Запчасти Case IH 10 (D-13) - FERTILIZER DROP BOTTOM

1

603525R11

BOTTOM, drop

1шт.

2

604404R1

CLAMP

HINGE, drop bottom

5шт.

180021

SPRING

1/4 X 7/8" TYPE 2 C-Z BOLT

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

3

604403R1

CLAMP

STOP, drop bottom hinge

5шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 X 7/8" TYPE 2 C-Z BOLT

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

4

603497R1

CATCH

drop bottom rod

5шт.

5

603469R1

BOLT,3/8" - 16 x 3.3", Steel

ROD, drop bottom short

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

4шт.

6

603500R1

LEVER

drop bottom short

4шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 X 9/16" F-HD RIVET

4шт.

7

603498R1

ANGLE

BRACKET, drop bottom lever

5шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4" C-Z CRG BOLT W/NUT

4шт.

12872R11

BOLT

5/16 X 1" C-Z CRG BOLT W/NUT

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

8

603501R1

LEVER

drop bottom long

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 X 9/16" F-HD RIVET

1шт.

9

603470R1

BOLT,3/8" - 16 x 5.1", Steel

ROD, drop bottom long

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
