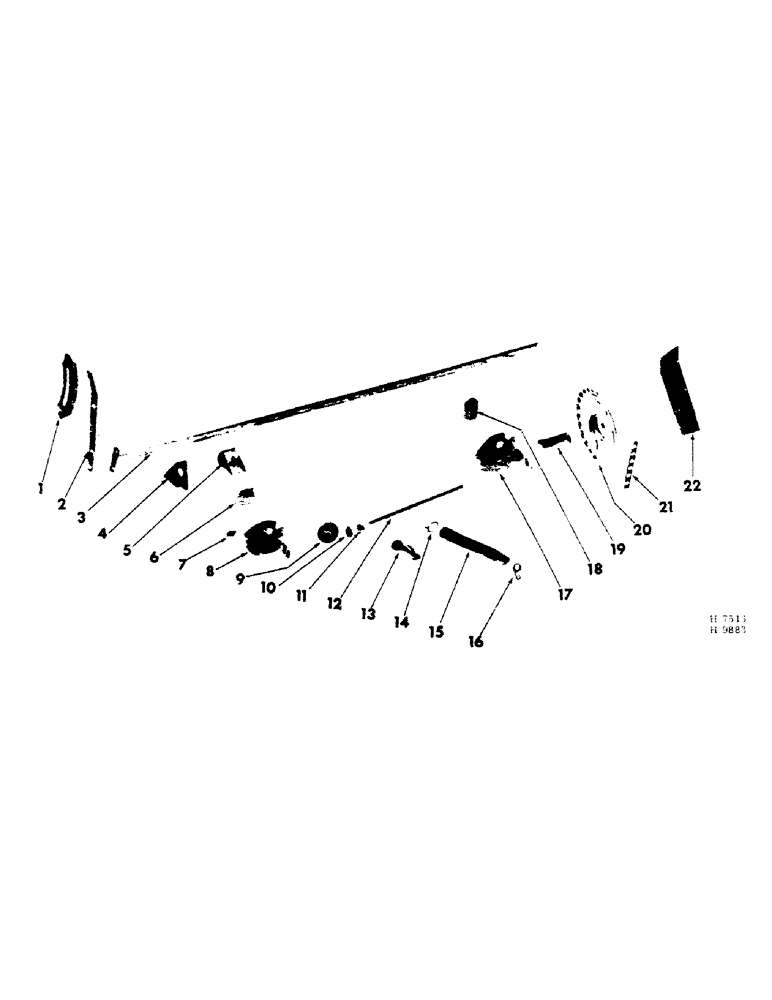

Запчасти Case IH 10 (D-12) - FERTILIZER FEED SHAFT

1

603458R1

INDICATOR, fertilizer

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

605116R1

LEVER

fertilizer indicator

1шт.

12653R11

1/4 X 3/4" C-Z CRG BOLT W/NUT

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16 X 7/8" C-Z CRG BOLT

1шт.

142745

NUT, WING

5/16" C-Z WING NUT

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

605121R92

ROD, fertilizer gate

1шт.

4

607276R1

BEARING, gate rod

6шт.

18404R11

BOLT

1/4 X 5/8" C-Z CRG BOLT W/NUT

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" TYPE 2 C-Z BOLT

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

603456R1

PANEL

GATE, fertilizer

13шт.

NLS

NO LONGER SERVICED

5/16 X 1/2" CD-PLTD SQ-HD CUP-PT SET SCREW

13шт.

6

602554R11

DRIVE SPROCKET

WHEEL, star (Includes N62414, pin)

13шт.

N62414

PIN,3.96mm OD x 28mm L

STAR WHEEL SHEAR PIN

13шт.

7

603457R1

SPACER

bottom plate

12шт.

8

603453R1

PLATE

intermediate

11шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" TYPE 2 C-Z BOLT

22шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

1/4 X 5/8" C-Z SLT-FIL-HD SCREW

11шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

33шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

33шт.

9

F282C

GEAR

feed shaft bevel

13шт.

10

603463R1

GEAR

bevel pinion

13шт.

11

603462R1

TRUNNION

pinion gear

13шт.

12

609469R1

BAR, fertilizer feed shaft

1шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 X 7/8" SQ-END PIN

1шт.

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

19/32 SQ-HOLE X 1-1/4 X 12 GA WASHER

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

13

607289R2

TUBE,1.25" OD, 7" Length

combined delivery

1шт.

14

603591R1

SPRING

fertilizer tube upper

1шт.

15

603589R3

TUBE

single disk separate delivery

1шт.

15

603588R3

TUBE,1.25" ID, 1.687" OD, 51, 3" Length

double disk separate delivery

1шт.

16

603592R1

SPRING CLIP

CLAMP, fertilizer tube lower

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

603451R1

PLATE

bottom end LH

1шт.

17

609467R1

PLATE

bottom end RH

1шт.

180018

CONNECTING LINK

1/4 X 5/8" TYPE 2 C-Z BOLT

4шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" TYPE 2 C-Z BOLT (2-RH)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120376

NUT,5/16"-18, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

603593R1

BLOCK

SHUT-OFF, fertilizer feed (Regular)

13шт.

19

609468R1

HUB, drive sprocket

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" TYPE 2 C-Z BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

609470R1

DRIVE SPROCKET

SPROCKET, 27T fertilizer drive

1шт.

21

CHAIN, fertilizer drive RH (For serivce order 1 - CS-32 (Steel) 10 ft chain & reduce to 56 links)

1шт.

22

609462R11

SHIELD, fertilizer drive

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 X 1/2" TYPE 2 C-Z BOLT

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 X 5/8" C-Z CRG BOLT

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
