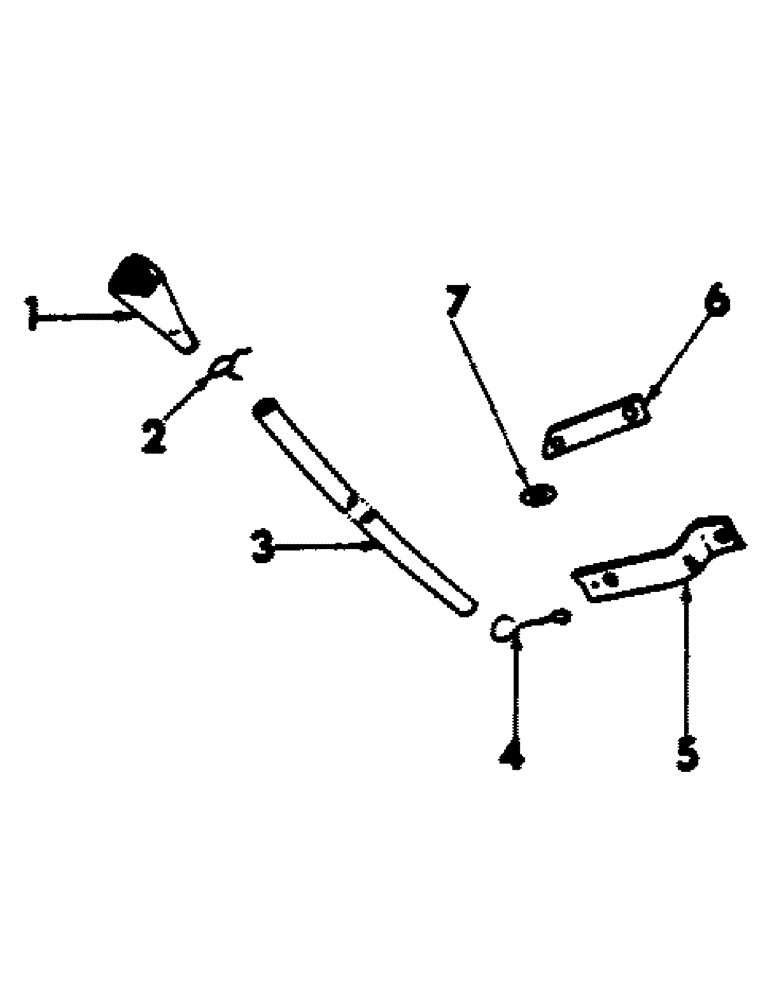

Запчасти Case IH 10 (D-11) - GRASS SEED TUBE

1

603817R1

TUBE

TOP, seed tube

13шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

13шт.

2

603699R2

CLAMP

tube upper

13шт.

3

603724R1

TUBE, grass

13шт.

4

R15708

HOOK, tube lower

13шт.

5

603722R2

BRACKET

SUPPORT, drag chain & tube (Single disk or hoe furrow opener)

13шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" TYPE 2 C-Z BOLT

13шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

13шт.

124824

NUT,Hex, 5/16" - 18

5/16" C-Z JAM NUT

13шт.

120376

NUT,5/16"-18, G5

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

6

594211R1

STRIP, drag chain & tube support (Double disk furrow openers)

13шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1/4 X 1-1/4" TYPE 2 C-Z BOLT

13шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

13шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

7

594212R1

WASHER, support strip backing (Double disk furrow openers)

13шт.

609487R93

PACKAGE, product graphic service, Composed of

1шт.

2752301R1

PRODUCT GRAPHIC

INTERNATIONAL PRODUCT GRAPHICS

1шт.

2752022R1

PRODUCT GRAPHIC

IH PRODUCT GRAPHICS

2шт.

2751693R1

PRODUCT GRAPHIC

CASTER WHEEL PRODUCT GRAPHICS

1шт.

NSS

NOT SOLD SEPARAT

SEMI-MOUNTED PRODUCT GRAPHICS

1шт.

NSS

NOT SOLD SEPARAT

"10" NAME PRODUCT GRAPHICS

1шт.

NSS

NOT SOLD SEPARAT

BE CAREFUL - speed PRODUCT GRAPHICS

1шт.

2752022R1

PRODUCT GRAPHIC

"IH"

2шт.

2752301R1

PRODUCT GRAPHIC

"International"

1шт.

2751693R1

PRODUCT GRAPHIC

"Caster Wheel Swing"

1шт.

2752017R1

PRODUCT GRAPHIC

"IH" (Grass hopper)

1шт.

2752326R1

PRODUCT GRAPHIC, "McCormick International" (Export)

1шт.
