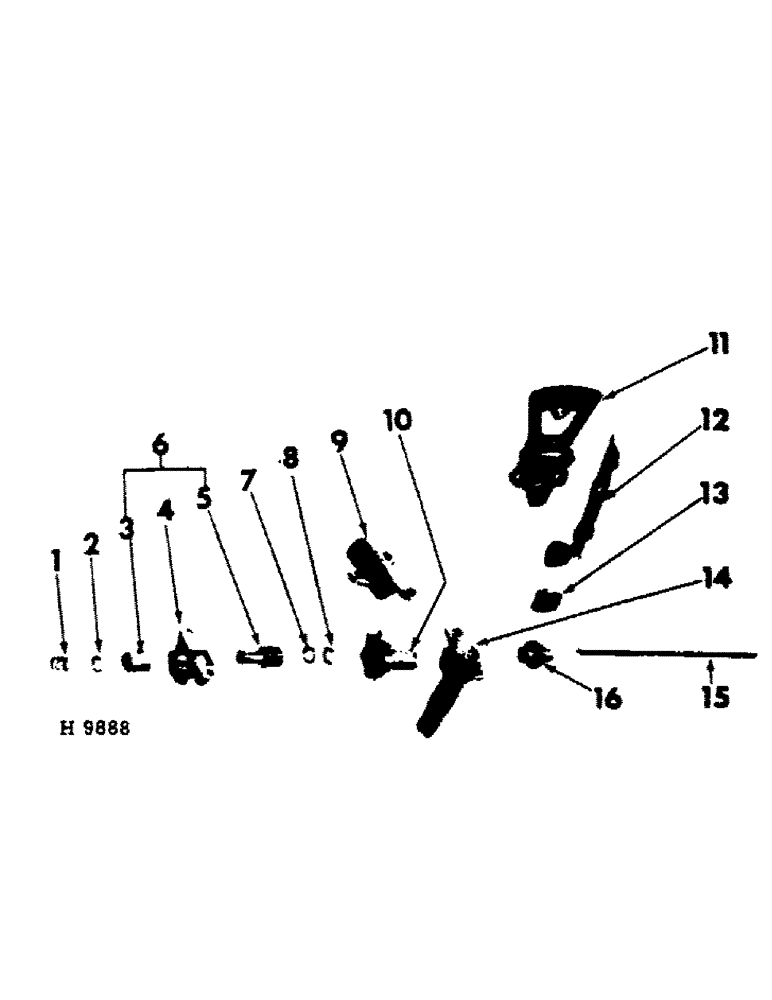

Запчасти Case IH 10 (D-10) - GRASS SEED FEEDSHAFT

1

N32176

SPRING

feed roll

13шт.

2

616422R1

WASHER, square hole

13шт.

3

600923R2

BLOCK

THIMBLE, cut-off

13шт.

4

615750R92

SUPPORT ASSY.

CUP, grass feed

13шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2" SLT-RD-HD C-Z SCREW

36шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

36шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

36шт.

5

601463R1

FINGER ASSY.

ROLL, feed cup

13шт.

6

600924R92

CUP ASSY.

CUP, grass feed (Includes 615750R92, cup; 601463R1, roll & 600923R2, thimble)

13шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2" SLT-RD-HD C-Z SCREW

36шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

36шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

36шт.

7

615023R1

SQ HOLE WASHER

square hole

39шт.

8

N32109

WASHER

slotted hole

10шт.

9

N1470

COVER

sprocket

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-RD-HD SCREW

1шт.

133046

GUARD

1/4 X 7/8" SLT-RD-HD C-Z SCREW

2шт.

109084

NUT,1/4"-20, G5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

N1475

SPROCKET ASSY.

SPROCKET, 7T feedshaft

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

11

603698R1

SECTOR

INDICATOR, grass seed

1шт.

110531

SCREW

NO. 10 X 1/2" SLT-F-HD SCREW

3шт.

110633

NUT,#10-24

3шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

12

N1468

INDICATOR

POINTER, indicator

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

86627130

WING NUT,1/4"-20

1/4" C-Z WING NUT

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 3/4" RD-HD RIVET

1шт.

13

R902

FORK, shifter

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 3/4" RD-HD RIVET

1шт.

14

N1474

BRACKET

HANGER, sprocket

1шт.

133046

GUARD

1/4 X 7/8" SLT-RD-HD C-Z SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

603709R1

SHAFT, feed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

26шт.

16

FA394

SLEEVE

feedshaft

1шт.

104056

RIVET

1/8 X 7/8" RD-HD RIVET

1шт.
