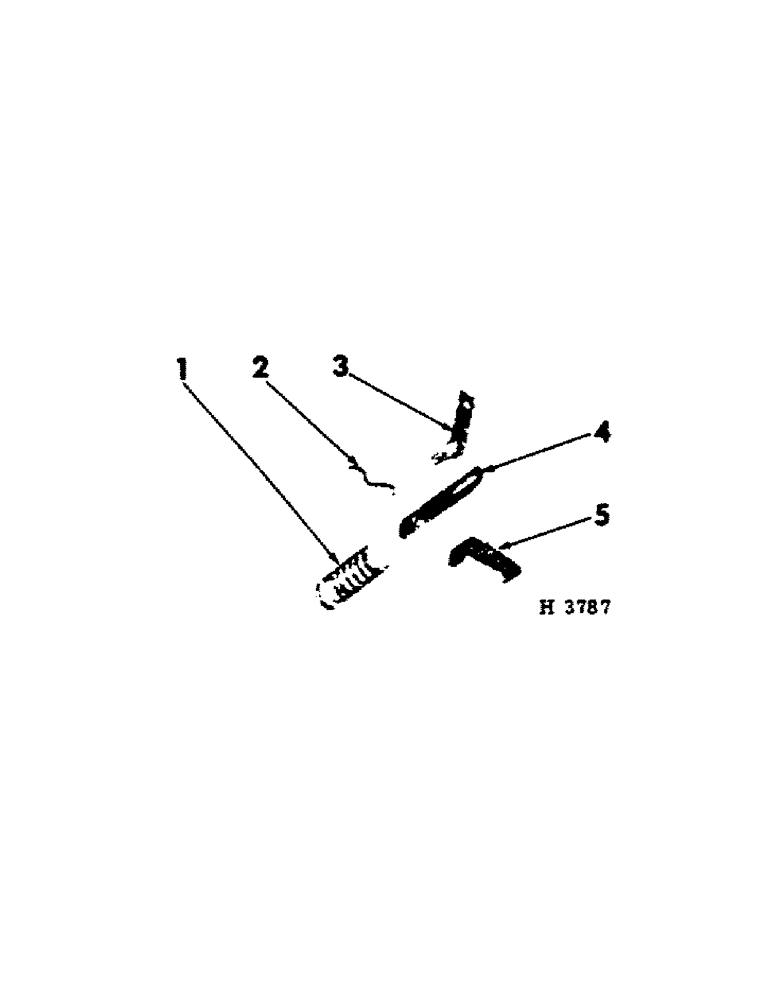

Запчасти Case IH 10 (D-10[1]) - GRASS SEED HOPPER LID FASTENER

1

6628

SPRING

plunger

2шт.

2

N32114

LINCH PIN

SADDLE, cover spg

2шт.

3

N32150

BRACKET, cover spg LH

1шт.

3

N32056

BRACKET, cover spg RH

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2" SLT-RD-HD SCREW

4шт.

110633

NUT,#10-24

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

4

N32052

BAR

PLUNGER, cover spg

2шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 X 3/8" RD-HD RIVET

2шт.

N32146

13/64 X 7/8 X 18 GA WASHER

2шт.

5

N32151

BRACKET, pivot

2шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 X 3/8" RD-HD RIVET

2шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2" SLT-RD-HD SCREW

2шт.

110633

NUT,#10-24

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
