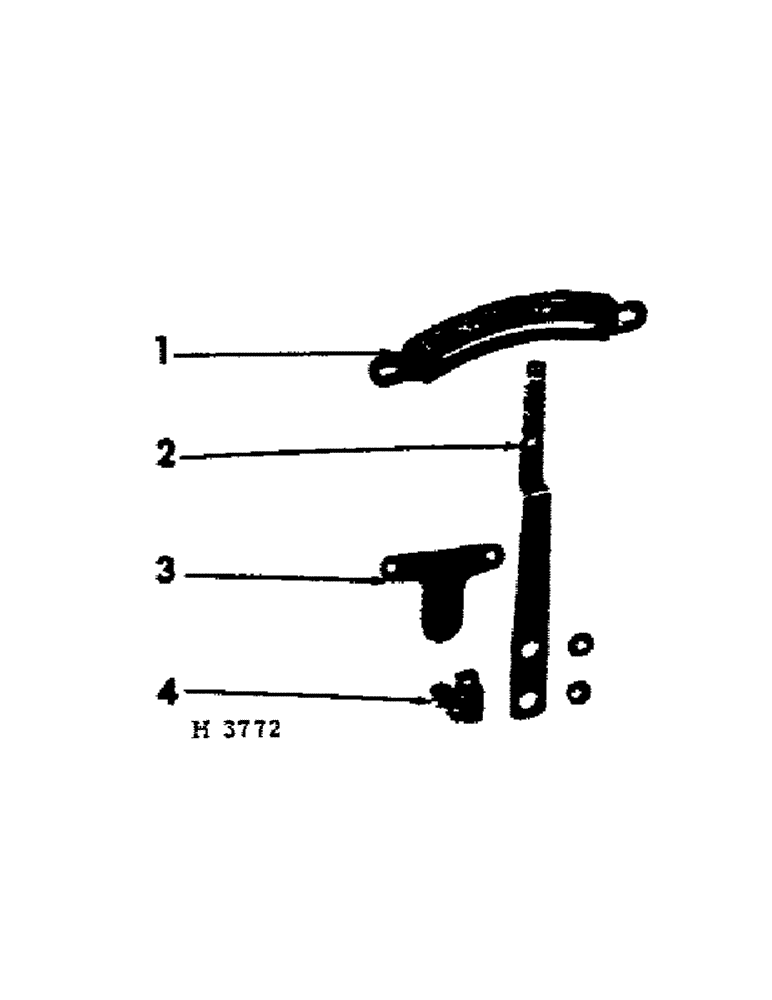

Запчасти Case IH 10 (D-09) - GRAIN INDICATOR, PRIOR TO JUNE 1965

1

603127R1

INDICATOR

grain

1шт.

16897R11

BOLT (SPREADER)

5/16 X 3/4" C-Z CRG BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

603258R1

ARM

SHIFTER, grain feed

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4" C-Z CRG BOLT

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA C-Z WASHER

1шт.

7500032

BUSHING

5/16" C-Z WING NUT

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16" C-Z JAM NUT

2шт.

3

603128R1

BRACKET, grain indicator shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

15542R11

5/16 X 3/4" NO. 3 PLOW BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

603898R1

FORK, grain feed shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

20893R1

WASHER

11/32 X 1 X 11 GA C-Z WASHER

1шт.
