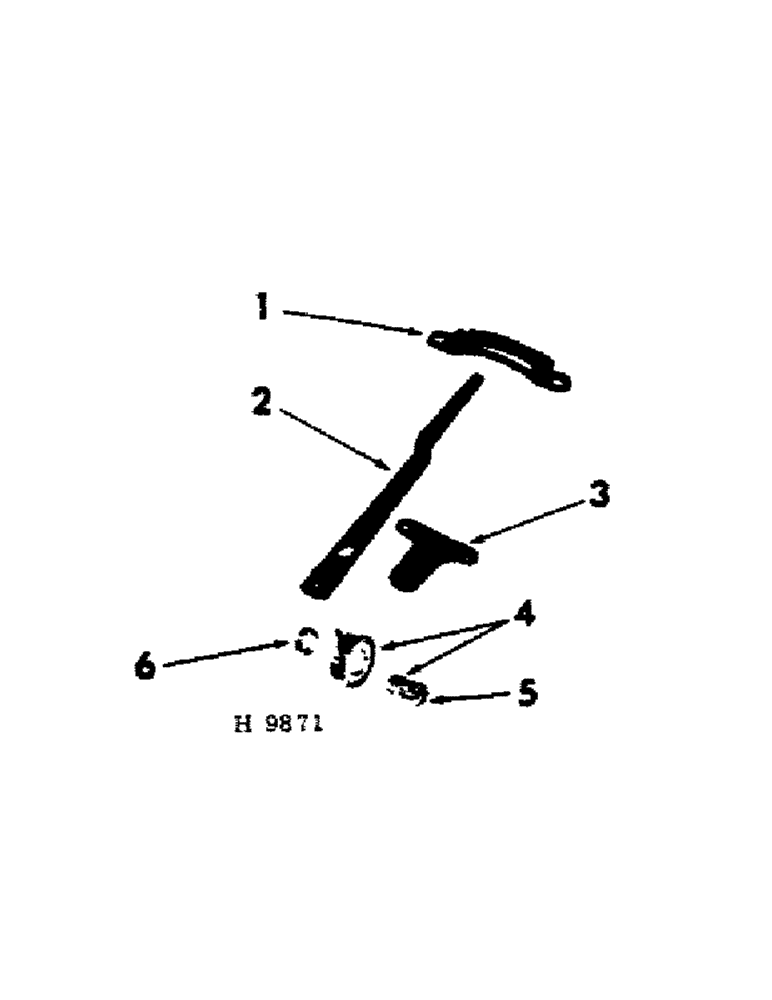

Запчасти Case IH 10 (D-09[1]) - GRAIN INDICATOR, 1965 AND SINCE

1

603127R1

INDICATOR

PLATE, grain indicator

1шт.

16897R11

BOLT (SPREADER)

5/16 X 3/4" C-Z CRG BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

609381R91

LEVER

SHIFTER, feed shaft lever

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4" C-Z CRG BOLT

1шт.

7500032

BUSHING

5/16" C-Z WING NUT

1шт.

3

603128R1

BRACKET, grain feed shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

15542R11

5/16 X 3/4" NO. 3 PLOW BOLT W/ NUT

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA C-Z WASHER

1шт.

NLS

NO LONGER SERVICED

5/16" C-Z JAM NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

609384R91

THRUST BEARING

feed shifter (Includes 609388R1, spacer)

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

609388R1

SPACER

shifter housing nylon

1шт.

6

609389R1

SPACER

feed shifter brg

1шт.
