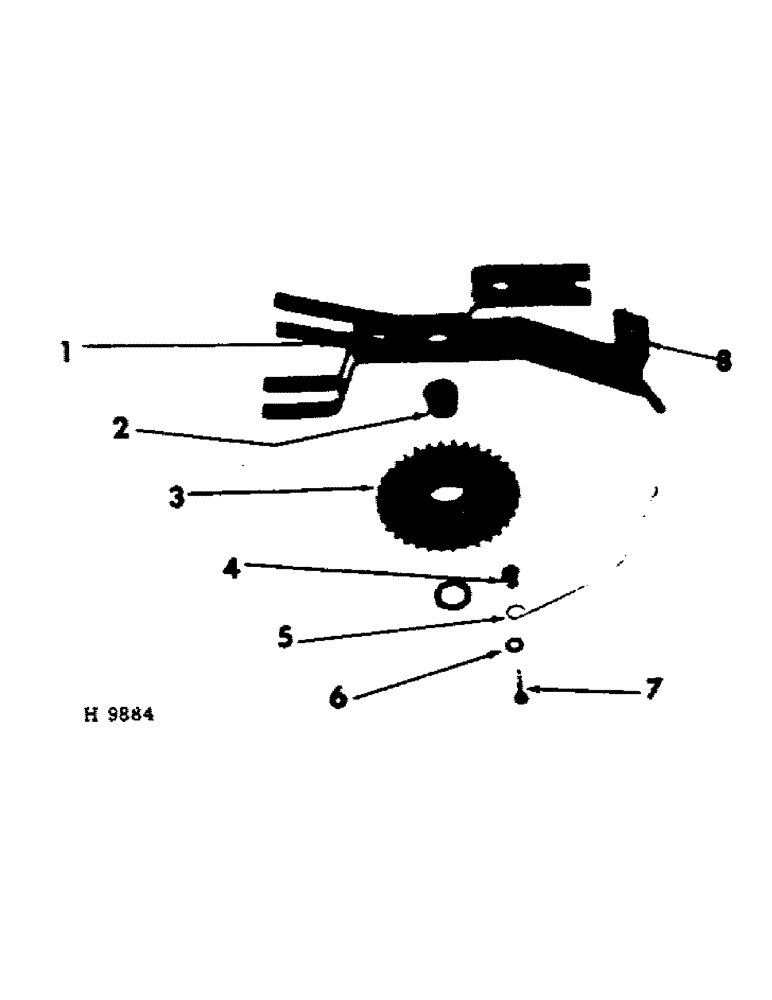

Запчасти Case IH 10 (D-08) - LAND MEASURE

1

609530R91

BRACKET, land measure

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" TYPE 2 C-Z BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

29793B

SPACER

drive gear

1шт.

3

609533R1

GEAR, 34T land measure

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" TYPE 2 C-Z BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

Q5035

WASHER

17/32 X 1 X 16 GA WASHER

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

609534R1

SPACER

machine screw

1шт.

5

609536R1

SPRING

land measure counter

1шт.

6

615002R1

WASHER

counter spg

1шт.

7

110506

SCREW, no. 10-NF x 1-1/4" slt-rd-hd Slotted Rd Hd, #10-24 x 1 1/4"

1шт.

110633

NUT,#10-24

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

609535R1

COUNER, land measure

1шт.

9401461

COUNTER SPECIAL RIVET

4шт.
