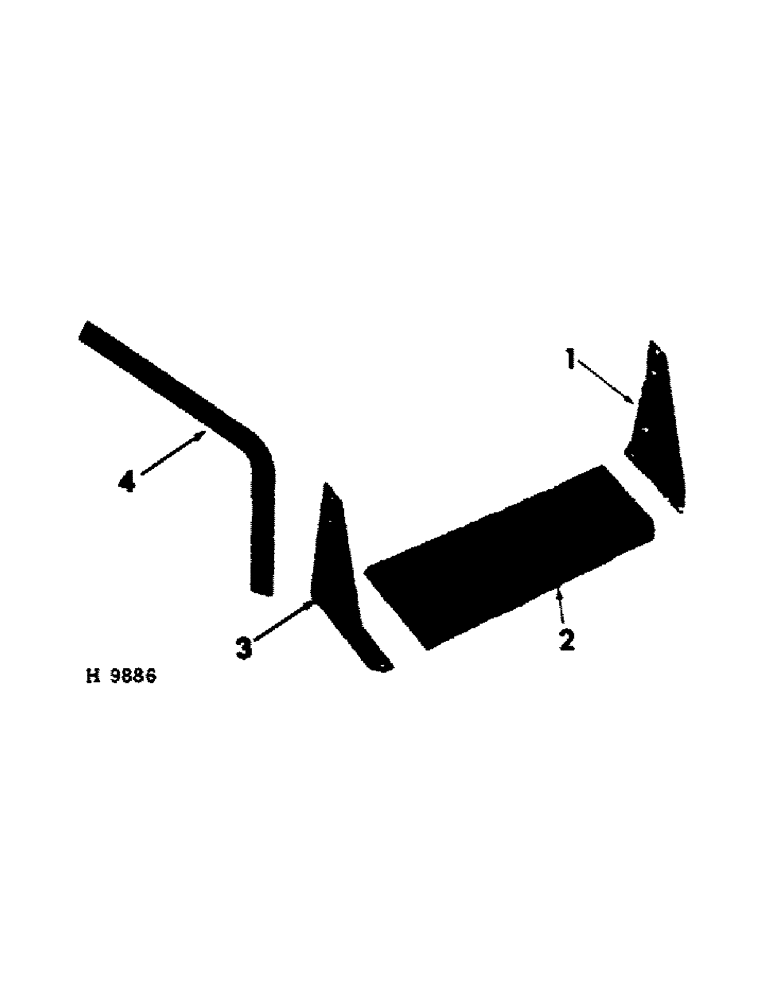

Запчасти Case IH 10 (D-08[1]) - FOOTBOARD

1

609526R1

SECTION, footboard support LH

2шт.

17351R11

BOLT

3/8 X 1" C-Z CRG BOLT W/NUT

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

2

609528R1

BOARD

foot

2шт.

18685R11

BOLT

3/8 X 1-1/2" C-Z CRG BOLT W/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

609527R1

SECTION, footboard support RH

2шт.

17351R11

BOLT

3/8 X 1" C-Z CRG BOLT W/NUT

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

609525R1

SUPPORT, footboard

2шт.

17351R11

BOLT

3/8 X 1" C-Z CRG BOLT W/NUT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
