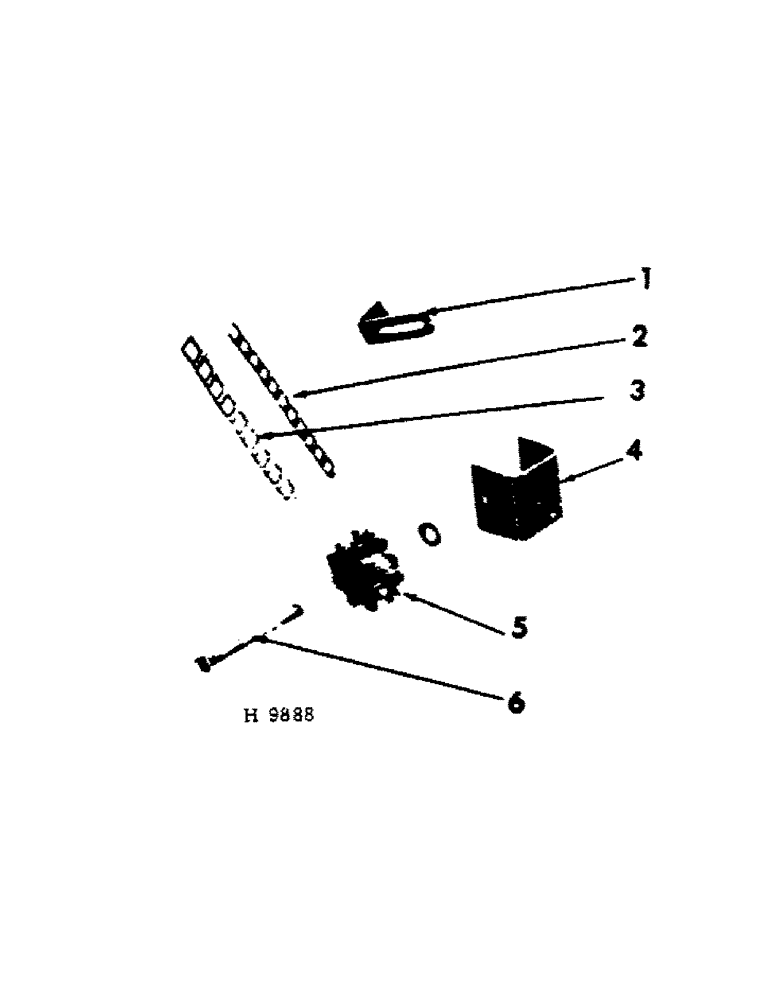

Запчасти Case IH 10 (D-07[1]) - GRASS SEED DRIVE

1

601791R1

SUPPORT

ANGLE, chain tightener

1шт.

17351R11

BOLT

3/8 X 1" C-Z CRG BOLT W/NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

CHAIN, feed shaft drive (For service order 1 - CM-26 (Malleable) 10 ft chain & reduce to 40 links)

1шт.

3

CHAIN, main drive (For service order 1 - CS-32 (Steel) 10 ft chain & reduce to 27 links)

1шт.

4

609521R1

CHANNEL, tightener sprocket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" TYPE 2 C-Z BOLT

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA C-Z WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

609522R1

SPROCKET, 8T & 11T drive

1шт.

6

Q618

HEADED PIN,5/8" x 5 3/4"

PIN, 5/8 x 5-3/4" std-hd-dld sprocket

1шт.

608701R1

WASHER

21/32 X 1-1/4 X 16 GA C-Z WASHER

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.
