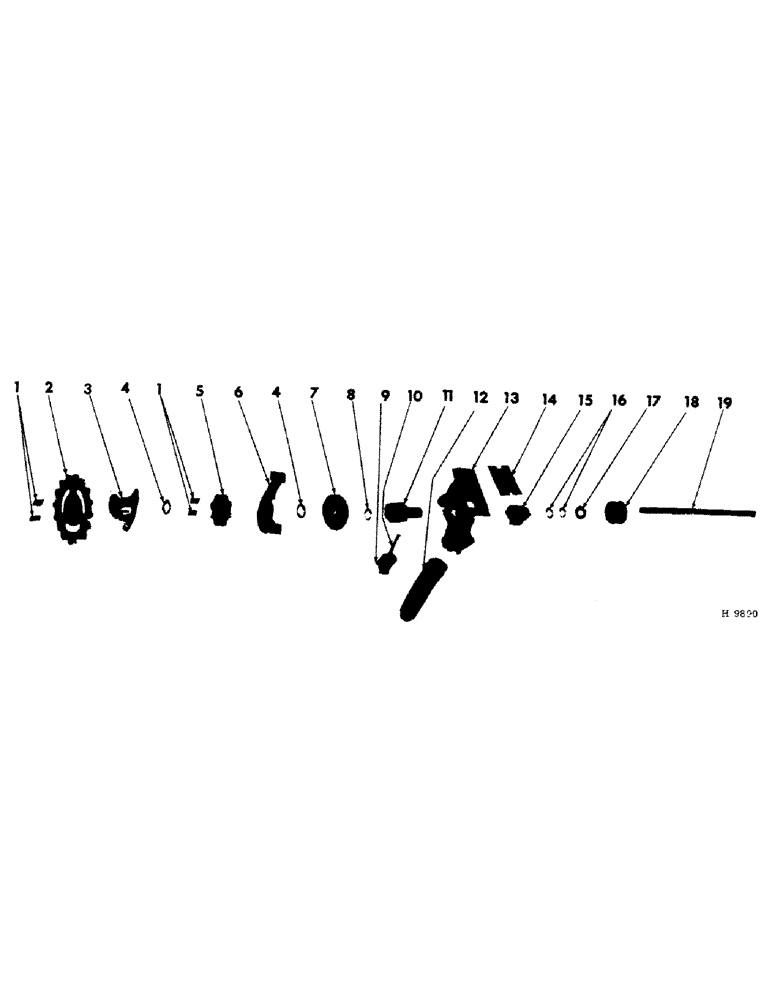

Запчасти Case IH 10 (D-06) - GRAIN FEED SHAFT

1

N11792

CLIP

sprocket retaining

4шт.

2

609465R1

DRIVE SPROCKET

SPROCKET, 16T grain feed shaft

1шт.

3

609466R1

HANGER

sprocket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" TYPE 2 C-Z BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

N11791

WASHER

sprocket retaining

2шт.

5

N1466

SPROCKET, 8T grass seed

1шт.

6

603119R2

HANGER

sprocket

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" TYPE 2 C-Z BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

604420R1

GEAR

land measure worm

1шт.

8

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

feed cup spg

13шт.

9

603108R11

BOTTOM

feed cup dump (Includes 603178R1, latch & 106883, rivet)

13шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

13шт.

10

603178R1

LATCH

dump bottom

13шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

13шт.

11

603111R1

ROLLER

ROLL, feed cup fluted

13шт.

603134R1

PIN,4.76mm OD x 29.37mm L

3/16 X 1-5/32" STRAIGHT PIN

13шт.

12

603263R2

TUBE,1.25" ID, 1.906" OD, 35, 9" Length

grain feed

13шт.

13

603295R91

CUP

feed (Less roll & block)

13шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" TYPE 2 C-Z BOLT

26шт.

120376

NUT,5/16"-18, G5

26шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

26шт.

13

603816R91

CUP

feed (Includes 603112R1, block; 603295R91, cup & 603111R1, roll)

13шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" TYPE 2 C-Z BOLT

26шт.

120376

NUT,5/16"-18, G5

26шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

26шт.

14

603677R2

PLATE

feed cup cover (Special)

13шт.

15

603112R1

BLOCK

feed shut-off

13шт.

16

N11720

WASHER

feed cups

13шт.

17

602106R1

SQ HOLE WASHER

(Between c-pin & N11720, washer)

1шт.

18

NA1340

SPOOL, grain shaft shifter

1шт.

104073

RIVET

3/16 X 1-1/4" B-HD RIVET

1шт.

19

609464R1

BAR, grain feed shaft

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

13шт.
