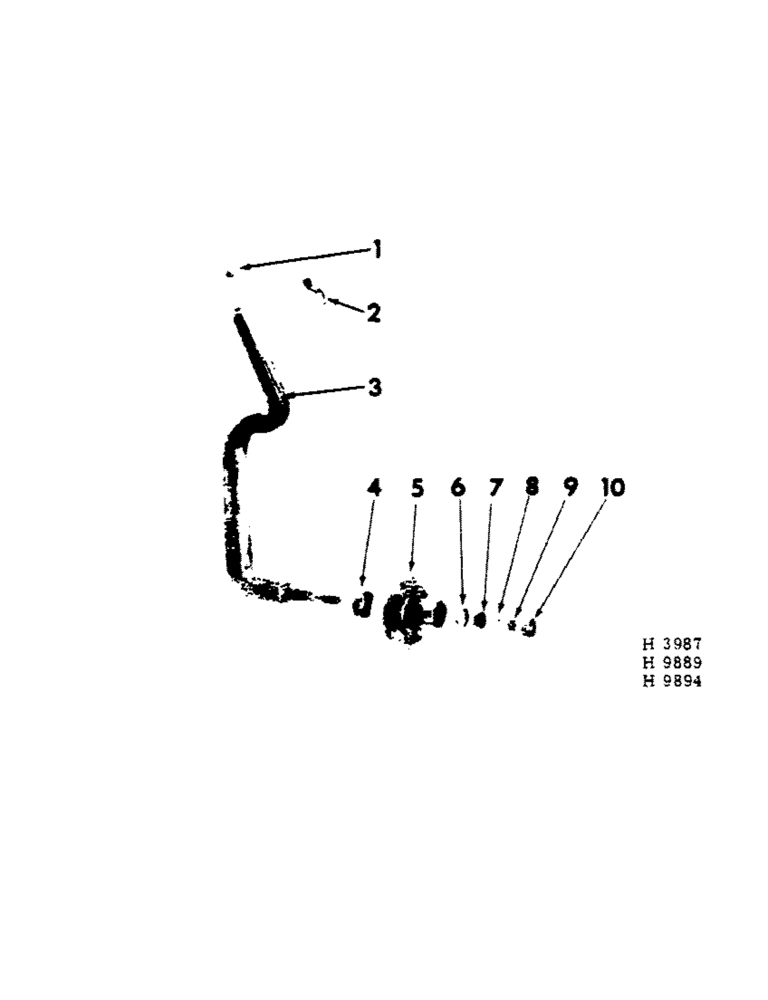

Запчасти Case IH 10 (D-05[1]) - CASTER WHEEL AXLE

1

16100R1

BALL BEARING

BALL, brg (For axle bracket)

1шт.

2

609483R1

LUG

axle bracket locking

1шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16 X 3/4" TYPE 2 C-Z BOLT

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

592636R91

AXLE

caster wheel

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

wheel inner

1шт.

5

619353R1

HUB

caster wheel

1шт.

6

651814R1

BEARING CUP

CUP, outer brg

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer brg

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x .134 ga

1шт.

9

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" - NF slt

1шт.

10

602959R1

PLUG

CAP, wheel hub

1шт.
