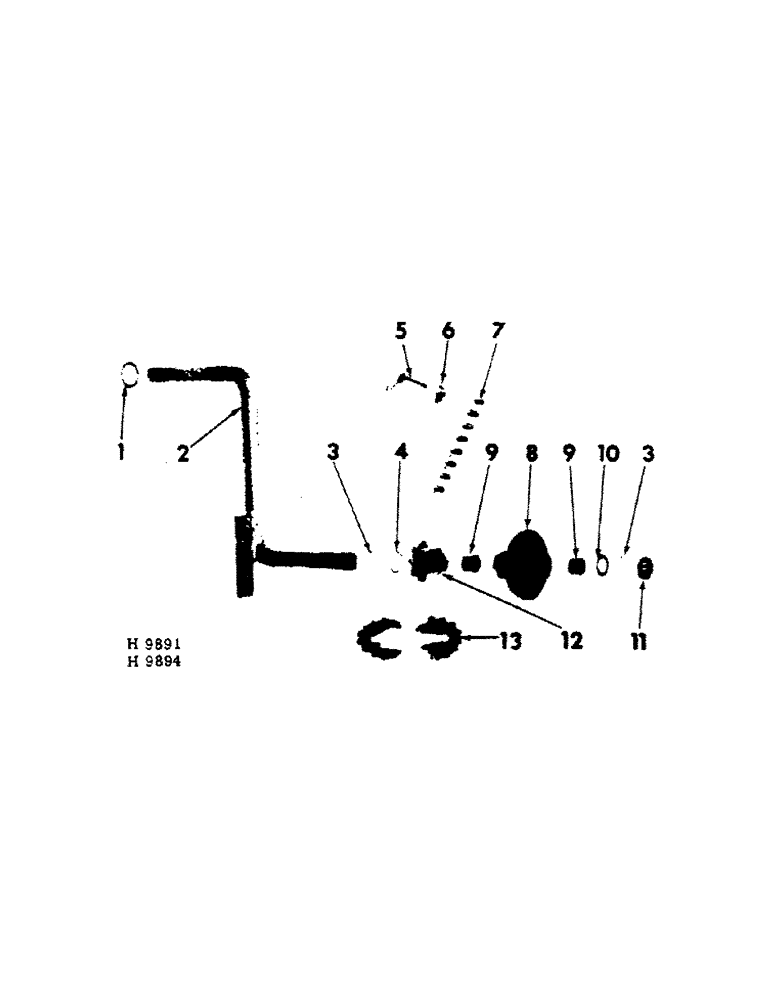

Запчасти Case IH 10 (D-04) - GAUGE WHEEL AXLE AND DRIVE

1

552423R1

WASHER

1-13/32 x 2-1/4 x 16 ga

1шт.

2

609476R11

SPARE PART

AXLE, gauge wheel LH

1шт.

2

609477R11

AXLE

gauge wheel RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" TYPE 2 C-Z BOLT

2шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

32-2032

COTTER PIN,5/16" x 2"

PIN, SPLIT (COTTER), 5/16" x 2"

4шт.

3

600765R1

WASHER

special axle

4шт.

4

615290R1

WASHER

1-13/32 x 1-15/16 x 16 ga

1шт.

5

609474R92

BRACKET

chain tightener

2шт.

17351R11

BOLT

3/8 X 1" C-Z CRG BOLT W/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

1шт.

6

603450R1

DRIVE SPROCKET

SPROCKET, 5T tightener

2шт.

603369R1

BUSHING

SPROCKET BUSHING

2шт.

7

CHAIN, fertilizer drive RH (For service order 1 - CS-32 (Steel) 10 ft chain & reduce to 56 links)

1шт.

7

CHAIN, grain drive LH (For service order 1 - CS-32 (Steel) 10 ft chain and reduce to 40 links)

1шт.

8

609480R11

HUB

wheel (Includes 609481R1, bushing)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

609481R1

BUSHING

wheel hub

4шт.

10

615290R1

WASHER

1-13/32 x 1-15/16 x 16 ga

1шт.

11

663908R1

CAP

hub

2шт.

12

609479R1

DRIVE SPROCKET

SPROCKET, 8T grain & fertilizer

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

3/16" DRIVE LUB-FITTING

2шт.

13

F1103R

DRIVE SPROCKET

SPROCKET, 16T fast speed half (Special)

2шт.

18674R11

BOLT

5/16 X 1-1/2" C-Z CRG BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
