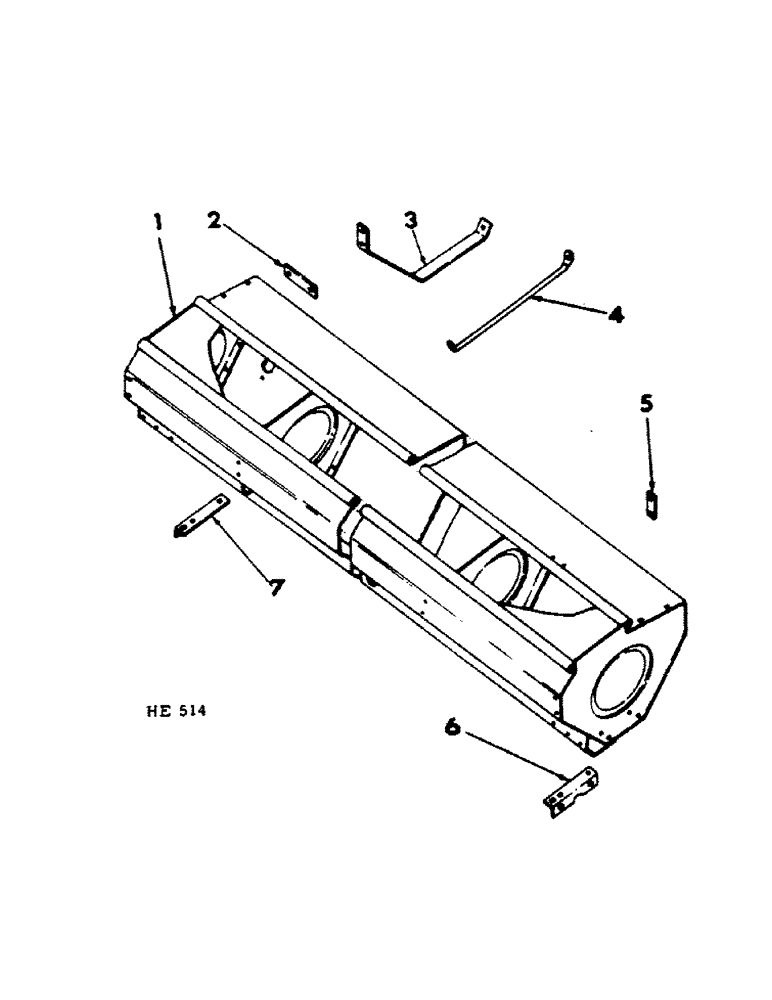

Запчасти Case IH 10 (A-02) - HOPPER UNIT, NOT COMBINATION HOPPER

1

603280R91

HOPPER, 16 x 6 grain

1шт.

1

603281R91

HOPPER, 20 x 6 grain

1шт.

1

603282R91

HOPPER, 24 x 6 grain

1шт.

1

603283R91

HOPPER, 12 x 7 grain

1шт.

1

603284R91

HOPPER, 13 x 7 grain

1шт.

1

603285R91

HOPPER, 16 x 7 grain

1шт.

1

603286R91

HOPPER, 18 x 7 grain

1шт.

1

604372R91

HOPPER, 16 x 8 grain

1шт.

1

606388R91

HOPPER, 20 x 8 grain

1шт.

1

605144R91

HOPPER, 16 x 10 grain

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 user per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

603211R1

PLATE, end panel backing

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

603401R1

BRACE, hopper inner (1 used on 20 x 8 & 16 x 10) (2 used on 20 x 6, 18 x 7 & 16 x 8)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT (3 used per brace)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (1 used per brace)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

4

603472R1

BRACE, grain hopper baffle plate (Not combination drill) (When ferilizer attachment used) (2 used on 16 x 6, 20 x 6, 16 x 7, 18 x 7 & 16 x 8) (4 used on 20 x 8 & 16 x 10) (5 used on 24 x 6)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT (1 used per brace)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

5

603212R1

PAD, hopper side stiffener (1 used on 16 x 6, 20 x 6, 12 x 7, 13 x 7, 18 x 7 & 16 x 8) (3 used on 16 x 7)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (2 used per pad)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120982

3/8" LK-WASHER (1 used per bolt)

1шт.

6

603322R2

BRACKET, axle support upper RH

1шт.

7

603321R2

BRACKET, axle support upper LH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT (Combination drill only)

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
