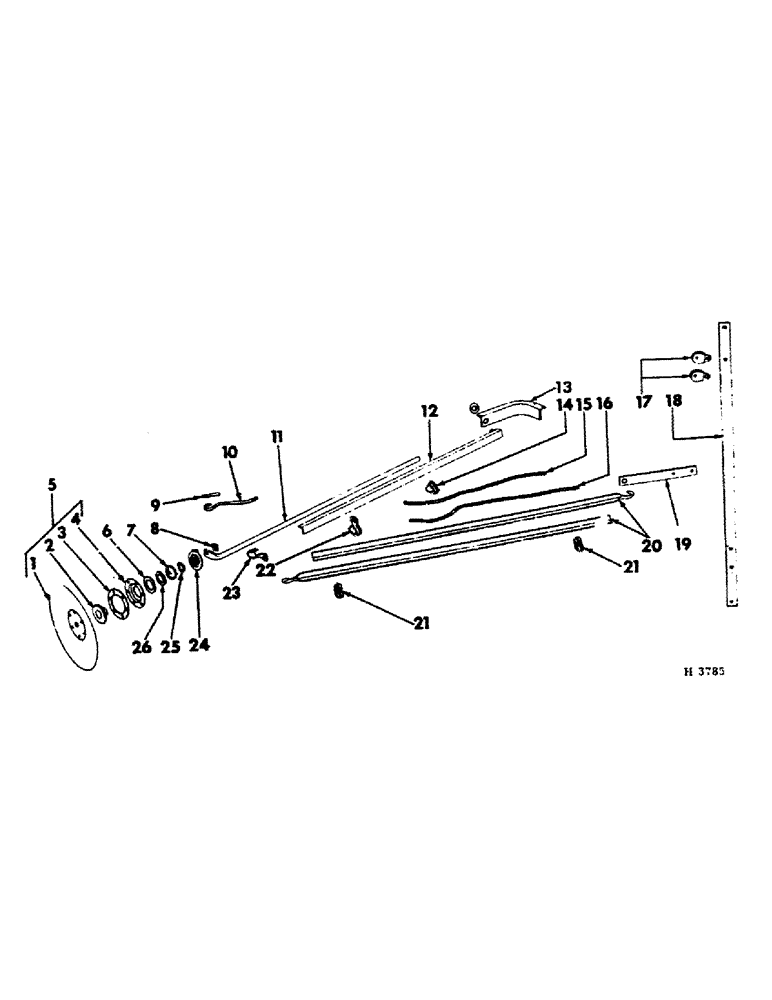

Запчасти Case IH 10 (A-40) - DISK MARKER, 16 X 6, 20 X 6, 24 X 6, 16 X 7, 18 X 7, 16 X 8, 16 X 10, AND 20 X 8

1

NA42304

DISC

BLADE, marker (Includes 1 - N42900, plug)

1шт.

N42900

MARKER BLADE PLUG

1шт.

13945R1

RIVET,Csk, 1/4" x 5/8"

1/4 X 5/8" - 74 DEGREE CSK-HD RIVET

6шт.

2

N2614

BLOCK

disk brg

1шт.

620156R1

BOLT

1/2 - NF X 2" SQ-HD BOLT

1шт.

120371

NUT,1/2"-20, G5

1шт.

3

N62375

GASKET

disk blade

1шт.

4

N6215

HUB, disk blade

1шт.

5

620446R91

DISK ASSEMBLY, marker, Composed of:

1шт.

NA42304

DISC

BLADE

1шт.

N2614

BLOCK

1шт.

620156R1

BOLT

1шт.

N62375

GASKET

1шт.

N2615

HUB

1шт.

120371

NUT,1/2"-20, G5

1шт.

13945R1

RIVET,Csk, 1/4" x 5/8"

6шт.

6

N2616

WASHER

RING, dust

1шт.

7

620075R1

RETAINER

felt spg LH

1шт.

7

620076R1

RETAINER

felt spg RH (Shown)

1шт.

8

N32572

CLIP

bolt nut locking

1шт.

9

FA4916

SPRING

rope guard locking

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

10

615712R91

GUIDE

marker rope (Includes 1 - 106883, rivet & 1-FA4916, spring)

1шт.

18508R11

BOLT

3/8 X 3/4" CRG BOLT

1шт.

Q1581

13/32 SQ-HOLE X 1-1/2 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

NA62676

SHAFT, disk

1шт.

12

600537R91

ANGLE, marker rear LH

1шт.

12

600538R91

ANGLE, marker rear RH (Shown)

1шт.

615196R1

WASHER

29/32 X 1-3/4 X 11 GA WASHER

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

13

603689R1

BRACKET, rear support LH

1шт.

13

603690R1

BRACKET, rear support RH (Shown)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT

1шт.

18479R11

3/8 X 2" CRG BOLT

1шт.

18687R11

BOLT

3/8 X 2-1/2" CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

600529R11

CLAMP, rear angle inner (Includes 19579R1, screw)

1шт.

19579R1

SET SCREW

7/16 X 7/8" SQ-HD CUP-PT SET SCREW

1шт.

15

ROPE, 3/8" sisal x 27 ft balance

1шт.

16

ROPE, 3/8" sisal x 42 ft pull (Dealer to purchase locally)

1шт.

17

43323A

PULLEY

lifting & balance rope

2шт.

13065R1

3/8 X 1" C-PIN

2шт.

18

603688R1

POST, pulley

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

19

603683R1

BRACKET, marker front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

600536R1

ANGLE, marker front

2шт.

21

457A

CLAMP, front marker angle

2шт.

184366

SUPPORT

7/16 X 1-1/4" SQ-HD CUP-PT SET SCREW

2шт.

22

600530R11

CLAMP

rear marker angle (Includes 1 - 19579R1, screw)

1шт.

19579R1

SET SCREW

7/16 X 7/8" SQ-HD CUP-PT SET SCREW

1шт.

23

600534R1

CONNECTION, front marker angle

1шт.

18422R11

BOLT

3/8 X 1-1/2" CRG BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

24

620479R1

CLAMP

HANGER, marker disk

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

25

615991R1

WASHER

1-3/32 x 1-1/2 x 26 ga

1шт.

26

M10

FELT

WASHER, special felt

1шт.
