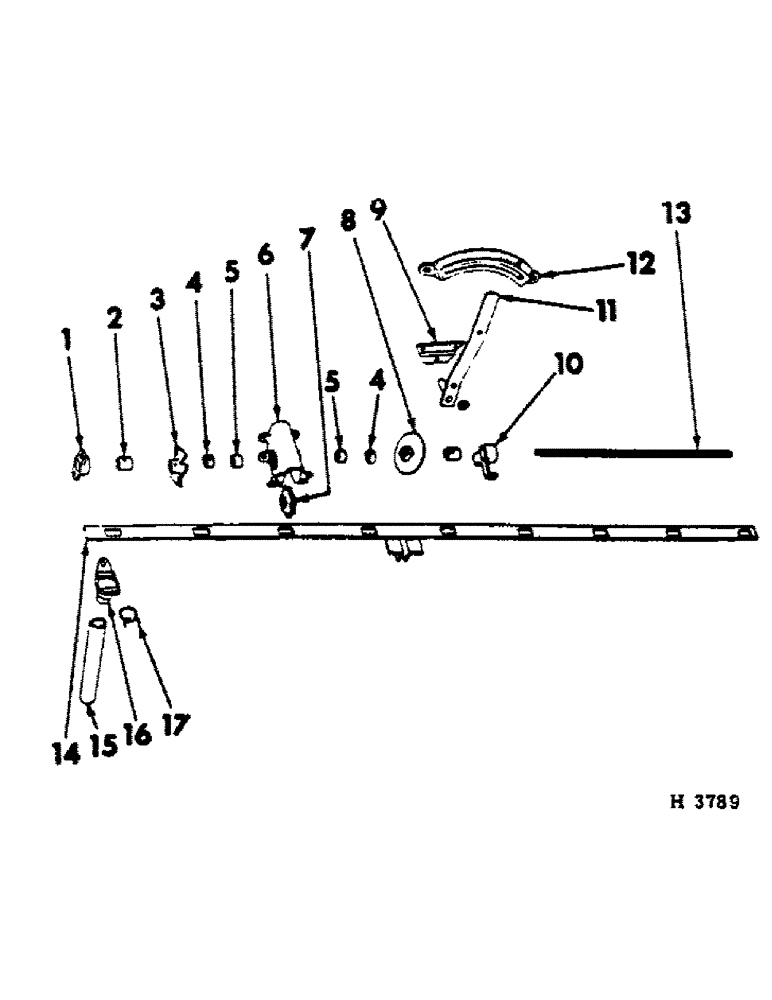

Запчасти Case IH 10 (A-39) - BROME SEED FEEDSHAFT

1

603733R1

BRACKET

BEARING, feedshaft

2шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

1/4 X 3/4" BOLT

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

603734R1

COLLAR

feedshaft brg (5 used 16 x 6, 12 x 7 & 13 x 7) (6 used 20 x 6 & 16 x 7) (7 used 24 x 6, 18 x 7)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4" HDLS CUP-PT SET SCREW (1 used per collar)

1шт.

3

603738R1

WHEEL, brome seed (1 used per feed)

1шт.

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

1/4 X 5/16" HDLS CUP-PT SET SCREW (1 used per wheel)

1шт.

4

603859R1

COLLAR, sprocket cover journal

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4" HDLS CUP-PT SET SCREW

2шт.

5

603860R1

JOURNAL, sprocket cover

2шт.

6

603739R1

COVER, sprocket

1шт.

120222

NO. 10 X 5/8" SLT-RD-HD SCREW

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

7

603735R1

DRIVEN SPROCKET

SPROCKET, 7T drive

1шт.

Q1577

SPECIAL FEEDSHAFT WASHER

2шт.

8

603737R1

DRIVE SPROCKET

WHEEL, feedshaft agitator (7 used 12 x 7) (8 used 13 x 7) (10 used 16 x 7) (11 used 16 x 6 & 18 x 7) (14 used 20 x 6) (17 used 24 x 6)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4" HDLS CUP-PT SET SCREW (1 used per wheel)

1шт.

9

603764R1

BRACKET, indicator level pivot (1 used per indicator plate)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT (2 used per bracket)

1шт.

120376

NUT,5/16"-18, G5

(1 used per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

10

603736R1

SUPPORT, shaft bearing (3 used on 16 x 6, 12 x 7 & 13 x 7) (4 used on 20 x 6 & 16 x 7) (5 used on 24 x 6 & 18 x 7)

1шт.

180018

CONNECTING LINK

1/4 X 5/8" BOLT (2 used per support)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

11

603747R11

POINTER, indicator plate (1 per indicator)

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

7500032

BUSHING

5/16" WING NUT

1шт.

104110

TUBE

3/8 X 5/8" B-HD RIVET

1шт.

12

603741R1

PLATE, indicator (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7 & 18 x 7)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

603757R1

SHAFT, 16 x 6 feed

1шт.

13

603758R1

SHAFT, 20 x 6 feed

1шт.

13

603759R1

SHAFT, 24 x 6 feed

1шт.

13

603760R1

SHAFT, 12 x 7 feed

1шт.

13

603761R1

SHAFT, 13 x 7 feed

1шт.

13

603762R1

SHAFT, 16 x 7 feed

1шт.

13

603763R1

SHAFT, 18 x 7 feed

1шт.

14

603801R91

SLIDE, 12 x 7 feed regulator

1шт.

14

603802R91

SLIDE, 13 x 7 feed regulator

1шт.

14

603795R91

SLIDE, 16 x 6 feed regulator LH

1шт.

14

603797R91

SLIDE, 20 x 6 feed regulator LH

1шт.

14

603799R91

SLIDE, 24 x 6 feed regulator LH & RH

2шт.

14

603803R91

SLIDE, 16 x 7 feed regulator LH

1шт.

14

603805R91

SLIDE, 18 x 7 feed regulator LH

1шт.

14

603796R91

SLIDE, 16 x 6 feed regulator RH

1шт.

14

603798R91

SLIDE, 20 x 6 feed regulator RH

1шт.

14

603804R91

SLIDE, 16 x 7 feed regulator RH

1шт.

14

603806R91

SLIDE, 18 x 7 feed regulator RH

1шт.

15

603794R1

TUBE,10.75" Length

brome seed (1 used per feed)

1шт.

16

603740R1

CUP, brome seed (1 used per feed)

1шт.

18404R11

BOLT

1/4 X 5/8" CRG BOLT (2 per cup)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt) 1/4"-20, G5

1шт.

17

603743R1

CLAMP

brome tube (1 used per tube)

1шт.
