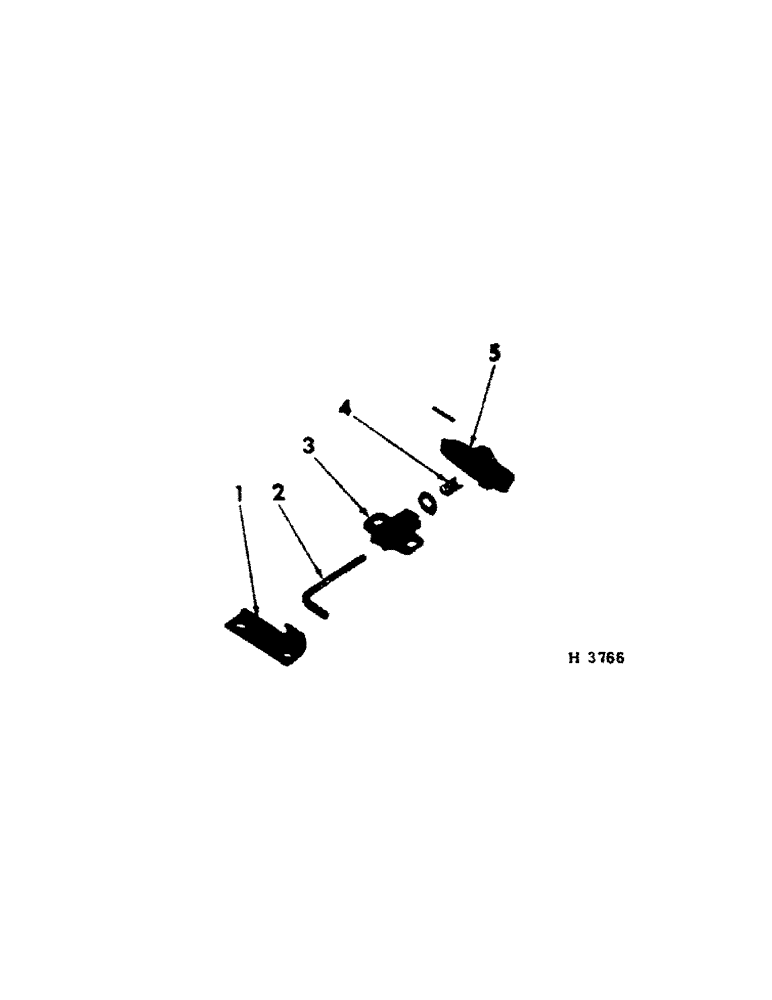

Запчасти Case IH 10 (A-02[1]) - LID FASTENER, 1959 SEASON

1

603259R1

BRACKET, grain lid fastener

1шт.

1

603502R1

BRACKET, fertilizer lid fastener

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-RD-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

603135R1

SHAFT, lid fastener

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

3

603130R1

BEARING, lid fastener

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-RD-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

66A

SPRING, lid fastener

1шт.

5

603129R1

HANDLE, lid fastener

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.
