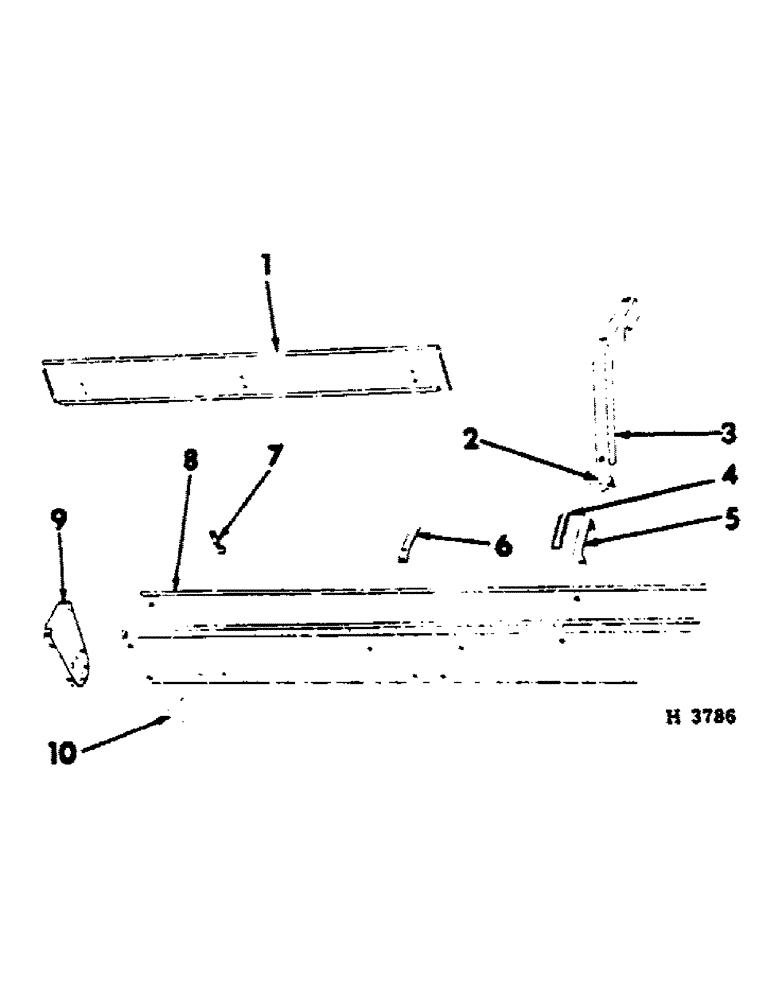

Запчасти Case IH 10 (A-38) - BROME SEED HOPPER UNIT, LOW REAR MOUNTED

1

603780R1

LID, 24 x 6 hopper center

1шт.

1

603789R1

LID, 18 x 7 hopper center

1шт.

1

603774R1

LID, 16 x 6 hopper LH

1шт.

1

603776R1

LID, 20 x 6 hopper LH

1шт.

1

603778R1

LID, 24 x 6 hopper LH

1шт.

1

603781R1

LID, 12 x 7 hopper LH

1шт.

1

603783R1

LID, 13 x 7 hopper LH

1шт.

1

603785R1

LID, 16 x 7 hopper LH

1шт.

1

603787R1

LID, 18 x 7 hopper LH

1шт.

1

603775R1

LID, 16 x 6 hopper RH

1шт.

1

603777R1

LID, 20 x 6 hopper RH

1шт.

1

603779R1

LID, 24 x 6 hopper RH

1шт.

1

603782R1

LID, 12 x 7 hopper RH

1шт.

1

603784R1

LID, 13 x 7 hopper RH

1шт.

1

603786R1

LID, 16 x 7 hopper RH

1шт.

1

603788R1

LID, 18 x 7 hopper RH

1шт.

2

603755R1

SUPPORT, hopper front center

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT (Not 24 x 6 & 18 x 7)

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT (24 x 6 & 18 x 7)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

604100R1

SUPPORT, hopper center (For use w/brome seed hopper when machine equipped w/gang press wheel attachment) (Not used on 20 x 8 size) (Not combination drill)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT (Plain drills only)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (Plain drills only)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT (Combination drills only)

4шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

607385R1

SUPPORT, hopper center (Combination drill w/gang press wheels)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

N32063

GUTTER, water (1 used 16 x 6, 20 x 6, 12 x 7, 13 x 7 & 16 x 7) (2 used 24 x 6 & 18 x 7)

1шт.

5

603746R1

BRACE, under gutter center (1 used 16 x 6, 20 x 6, 12 x 7, 13 x 7 & 16 x 7) (2 used 24 x 6 & 18 x 7)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

N32054

BRACE, inside hopper (2 used 16 x 6, 20 x 6, 12 x 7, 13 x 7 & 16 x 7) (3 uses 24 x 6 & 18 x 7)

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16 X 3/4" BOLT (2 used per brace)

1шт.

120376

NUT,5/16"-18, G5

(1 used per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

7

N32057

HINGE, hopper lid (6 used 16 x 6, 20 x 6, 12 x 7, 13 x 7 & 16 x 7) (9 used 24 x 6 & 18 x 7)

1шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

NO. 10 X 3/8" SLT-RD-HD SCREW

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2" SLT-RD-HD SCREW

1шт.

110633

NUT,#10-24

(1 used per screw) #10-24

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, (1 used per screw) #10

1шт.

8

603766R1

HOPPER, 16 x 6 brome seed

1шт.

8

603767R1

HOPPER, 20 x 6 brome seed

1шт.

8

603768R1

HOPPER, 24 x 6 brome seed

1шт.

8

603769R1

HOPPER, 12 x 7 brome seed

1шт.

8

603770R1

HOPPER, 13 x 7 brome seed

1шт.

8

603771R1

HOPPER, 16 x 7 brome seed

1шт.

8

603772R1

HOPPER, 18 x 7 brome seed

1шт.

9

603765R1

HEAD, hopper

2шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2" SLT-RD-HD SCREW

16шт.

110633

NUT,#10-24

16шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

16шт.

10

603756R1

BLOCK, hopper support

2шт.

181651

SHIELD

3/8 X 2-5/8" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
