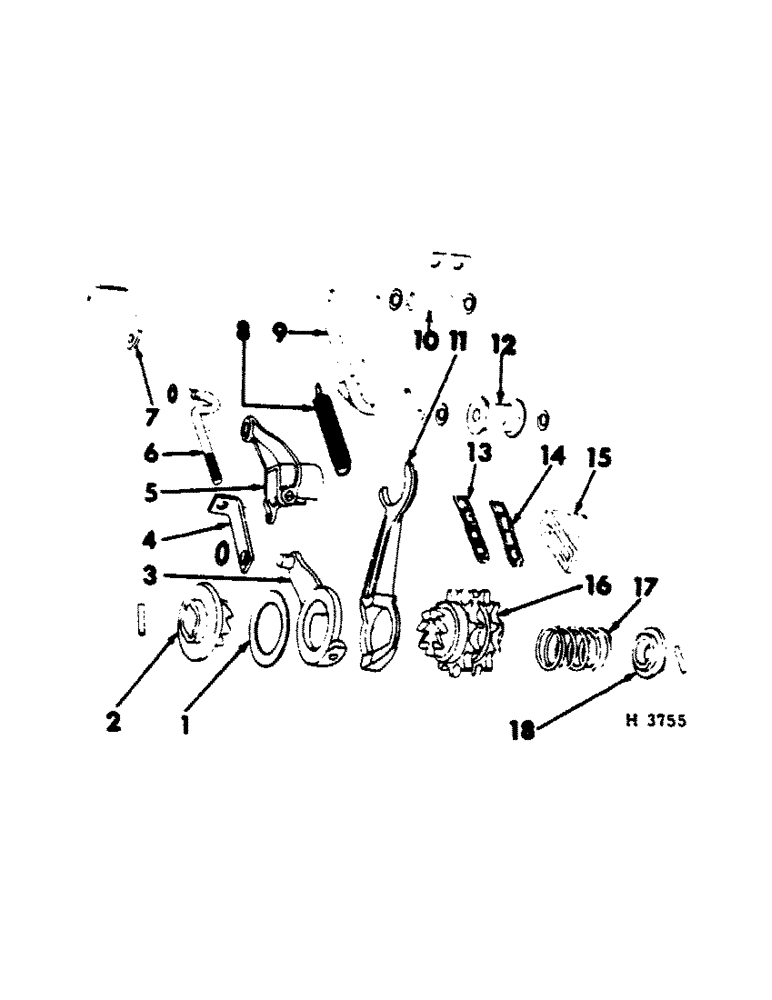

Запчасти Case IH 10 (A-37) - BROME AND GRASS DRIVE PARTS

1

603265R1

WASHER

2 x 3-1/8 x 14 ga clutch

1шт.

2

603116R1

COLLAR CLAMP

COLLAR, 8T drive clutch

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

3

603133R1

CAM

drive clutch throw-out

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1/8" - 65 DEGREE LUB-FITTING

1шт.

21782R1

WASHER

21/32 X 1-1/2 X 16 GA WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

4

603181R1

SUPPORT

EXTENSION, clutch rod

1шт.

5

603132R1

ARMATURE

CAM, clutch shifter rod rockshaft

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

5/16 X 2-1/4" CRG BOLT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

603809R1

BOLT,3/8" - 16 x 3-11/16"

ROD, clutch shifter

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

603721R1

BRACKET, clutch rest

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

165

SPRING

chain tightener

1шт.

9

606253R91

ARM

chain tightener (Brome)

1шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

6шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

7шт.

10

603182R1

BRACKET, chain tightener arm (Brome)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

603131R1

PLATE ASSY.

PLATE, clutch throw-out

1шт.

12

603118R1

ROLLER

chain tightener large (Brome)

1шт.

12

3240A

ROLLER

chain tighttener small (Brome)

1шт.

13

CHAIN, brome drive (1959) (Order 1 - CM-25 malleable 10 ft chain & reduce to 73 links)

1шт.

13

CHAIN, brome drive (1960 & since) (Order 1 - CS-25 steel 10 ft chain & reduce to 75 links)

1шт.

14

CHAIN, grass drive (Order 1 - CM-25 malleable 10 ft chain & reduce to 46 links)

1шт.

15

601791R1

SUPPORT

ARM, chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

16

603808R1

SPROCKET ASSY.

SPROCKET, 11T double (Not 16 x 10 & 20 x 8)

1шт.

16

604268R1

SPROCKET ASSY.

SPROCKET, 11T drive (16 x 10)

1шт.

17

35AC

SPRING

clutch drive

1шт.

18

603117R1

COLLAR CLAMP

COLLAR, clutch drive spg (Not 20 x 8)

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.
