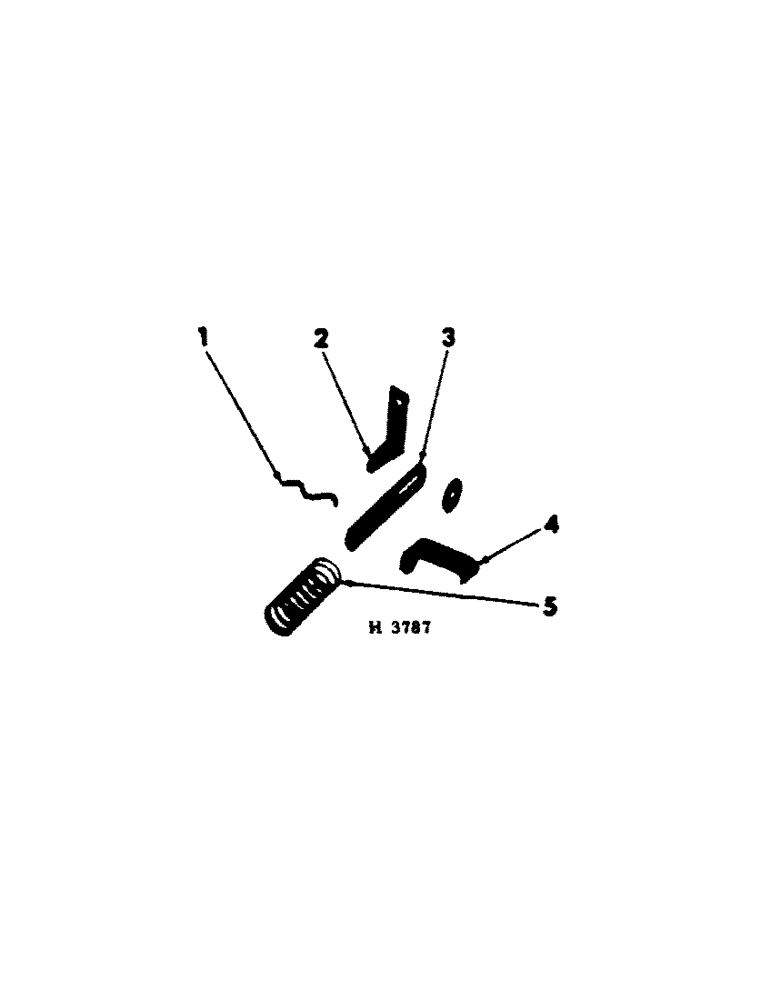

Запчасти Case IH 10 (A-37[1]) - BROME AND GRASS HOPPER LID FASTENER

1

N32114

LINCH PIN

SADDLE, lid spg plunger

1шт.

2

N32150

BRACKET, lid spg LH

1шт.

2

N32056

BRACKET, lid spg RH

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2" SLT-RD-HD SCREW

1шт.

110633

NUT,#10-24

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

N32052

BAR

PLUNGER, lid spg

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16" X 3/8" B-HD RIVET

1шт.

N32146

13/64 X 7/8 X 18 GA WASHER

1шт.

4

N32151

BRACKET, spg plunger pivot

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2" SLT-RD-HD SCREW

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

110633

NUT,#10-24

1шт.

5

6628

SPRING

lid plunger

1шт.
