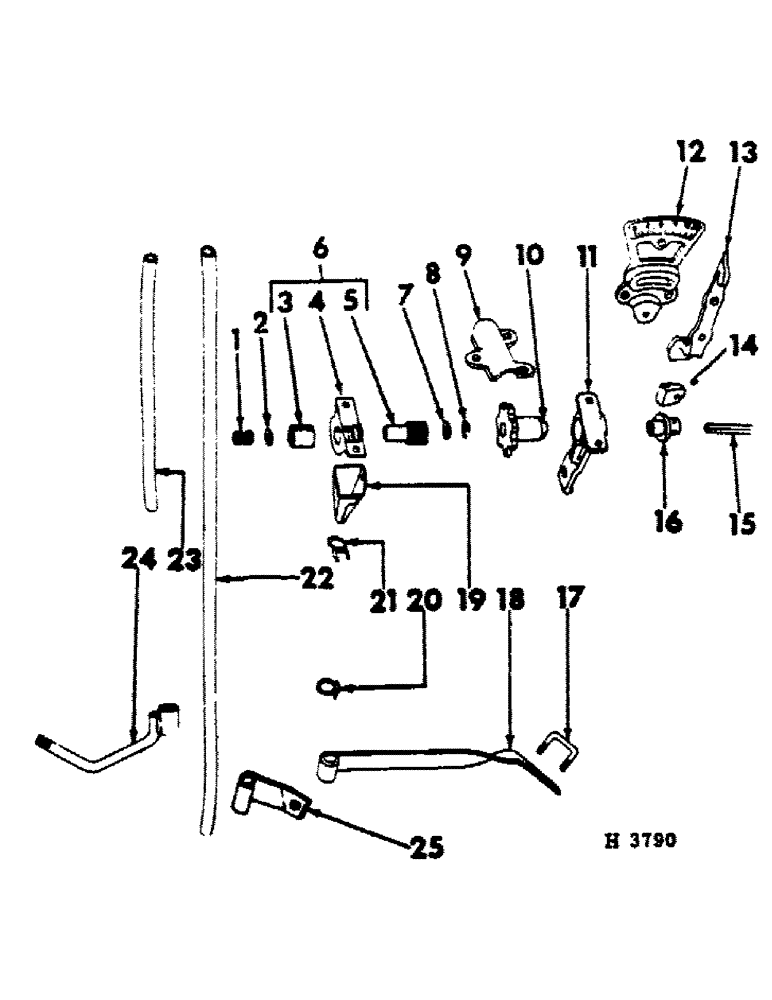

Запчасти Case IH 10 (A-36) - GRASS SEED FEEDSHAFT

1

N32176

SPRING

feed cup (1 per cup)

1шт.

2

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

11/32 sq-hole x 3/4 x 16 ga feed cup (1 used per feed cup)

1шт.

3

600923R2

BLOCK

feed cup shut-off (1 used per feed cup)

1шт.

4

615750R92

SUPPORT ASSY.

CUP, grass feed

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW (2 per feed cup)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per screw) 1/4"

1шт.

5

601463R1

FINGER ASSY.

ROLL, grass feed cup (1 used per feed cup)

1шт.

6

600924R92

CUP ASSY.

CUP, grass feed (Includes 600923R2, block; 615750R92, cup & 601463R1, roll)

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW (2 used per feed cup)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per screw) 1/4"

1шт.

7

615023R1

SQ HOLE WASHER

11/32 sq-hole x 3/4 x 26 ga (3 used per feed cup)

1шт.

8

N32109

WASHER

slotted hole

1шт.

9

N1470

COVER

drive sprocket (1 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (2 used 16 x 10)

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-RD-HD SCREW (1 used per cover)

1шт.

133046

GUARD

1/4 X 7/8" SLT-RD-HD SCREW (2 used per cover)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

NA1475

DRIVE SPROCKET

SPROCKET, 7T driven (1 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (2 used 16 x 10)

1шт.

103046

3/16 X 3/4" C-PIN (1 used per sprocket)

1шт.

11

N1474

BRACKET

HANGER, driven sprocket (1 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (2 used 16 x 10)

1шт.

133046

GUARD

1/4 X 7/8" SLT-RD-HD SCREW (2 used per hanger)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

603698R1

SECTOR

PLATE, feed indicator (1 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (2 used 16 x 10)

1шт.

110531

SCREW

NO. 10 X 1/2" SLT-FT-HD SCREW (3 used per plate)

1шт.

110633

NUT,#10-24

(1 used per screw) #10-24

1шт.

104697

NO. 10 LK-WASHER (1 used per screw)

1шт.

13

N1468

INDICATOR

LEVER, indicator (1 used per plate)

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, , 1 used per lever Short NK, 1/4"-20 x 3/4", G2

1шт.

86627130

WING NUT,1/4"-20

1/4" WING NUT

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 3/4" B-HD RIVET

1шт.

14

F902

BLOCK

feedshaft shifter (1 used per lever)

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 3/4" B-HD RIVET (1 used per block)

1шт.

15

603705R1

SHAFT, 16 x 6 grass feed

1шт.

15

603706R1

SHAFT, 20 x 6 grass feed

1шт.

15

603707R1

SHAFT, 24 x 6 grass feed

1шт.

15

603708R1

SHAFT, 12 x 7 grass feed

1шт.

15

603709R1

SHAFT, 13 x 7 grass feed

1шт.

15

603710R1

SHAFT, 16 x 7 grass feed

1шт.

15

603711R1

SHAFT, 18 x 7 grass feed

1шт.

15

604393R1

SHAFT, 16 x 8 grass feed

1шт.

15

604174R1

SHAFT, 16 x 10 grass feed

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 2 used per feed cup 1/8" x 3/4"

1шт.

16

FA394

SLEEVE

feedshaft (1 used per lever)

1шт.

104056

RIVET

1/8 X 7/8" B-HD RIVET (1 used per sleeve)

1шт.

17

604423R1

TIGHTENER, band seed holder (1 used per tube)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(2 used per tightener) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (2 used per tightener) 1/4"

1шт.

18

603700R1

HOLDER, seeding tube (1959 season) 0.593" ID, 9.75" Length

1шт.

18

604424R1

HOLDER, seeding tube (1960 & since)

1шт.

110531

SCREW

NO. 10 X 1/2" SLT-F-HD SCREW

12шт.

19

603817R1

TUBE

TOP, grass seed tube (1 used per feed cup)

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

20

603882R1

HOOK

seed tube lower

1шт.

21

603699R2

CLAMP

seed tube upper (1 used per tube)

1шт.

22

603724R1

TUBE, band seeding

1шт.

23

603881R1

TUBE

broadcast seeding (1959 season)

1шт.

24

605067R11

HOLDER, tube (1960 & since) (For use on machines equipped w/high front mounted grass seed hopper & gang press wheel attachment)

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

25

594611R1

HOLDER, tube LH (w/separate placement furrow opener)

1шт.

25

594612R1

HOLDER, tube RH (w/separate placement furrow opener)

1шт.
