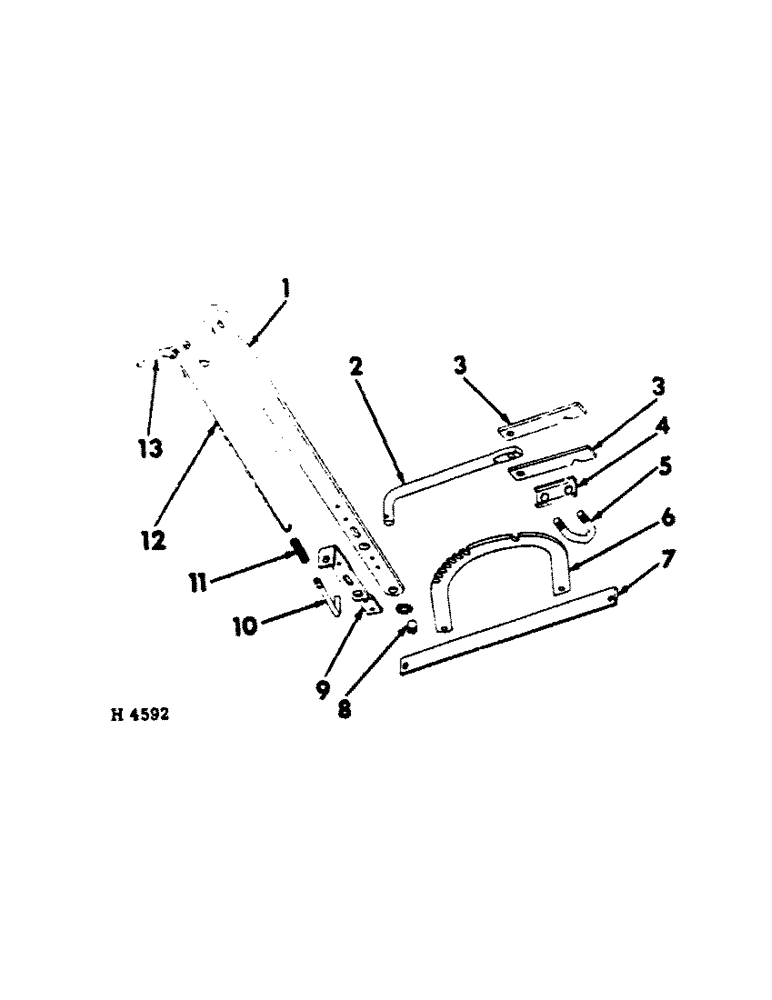

Запчасти Case IH 10 (A-34) - HAND LIFT, SPECIAL

1

604432R11

LEVER, lifting (Includes 600990R1, guide & 104100, rivets) (1959 - 1960, use w/non-adjustable link)

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

1шт.

659049R1

29/32 X 1-1/2 X 7 GA WASHER

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

1

606059R91

LEVER ASSY.

LEVER, lifting (Includes 1-606148R1, guide & 2 - 104100 rivets) (1961 & since) (For use w/adjustable link)

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

1шт.

656049R1

WASHER

29/32 X 1-1/2 X 7 GA WASHER

2шт.

20601R1

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

New part number

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

604431R1

LINK, non-adjustable (1959-60)

1шт.

2

606149R1

LINK, adjustable (1961 & since)

1шт.

5530S

PIN

5/8 X 1-5/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

604430R1

ARM, rockshaft lift clamp

2шт.

4

603393R1

CHANNEL

PLATE, rockshaft clamp

1шт.

5

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, rockshaft clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

604435R1

QUADRANT, hand lift

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

604436R1

ANGLE, lift support LH

1шт.

7

604437R1

ANGLE, lift support RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

604433R1

SPACER,1/2" Pipe x 13/16"

lever bolt

1шт.

9

600990R1

GUIDE, non-adjustable link lever (1959-60)

1шт.

9

606148R1

LEVER GUIDE

GUIDE, adjustable link lever (1961 & since)

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

5/16 X 1-1/8" RD-HD RIVET

2шт.

10

604434R1

ROD

detent

1шт.

11

2302

SPRING

detent rod

1шт.

12

M92872

LIFTING ROD

DETENT, lever

1шт.

New part number

1шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

13

PO15296

HANDLE

lever

1шт.

132-347

COTTER PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.
