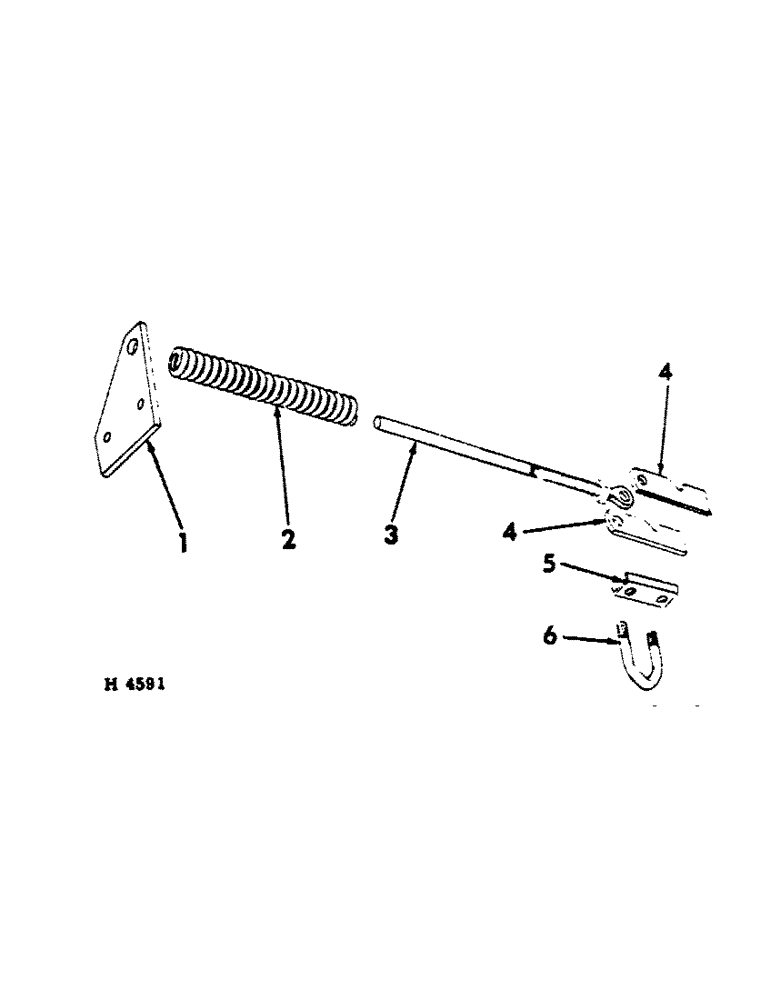

Запчасти Case IH 10 (A-34[1]) - HELPER SPRING, SPECIAL

1

604439R1

BRACKET, plunger support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

N32216

SPRING, helper

1шт.

3

N32502

PLUNGER, helper spg

1шт.

5530S

PIN

5/8 X 1-5/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

604438R1

ARM, lift

2шт.

5

603393R1

CHANNEL

PLATE, arm u-bolt clamp

1шт.

6

603422R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, rockshaft arm

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
