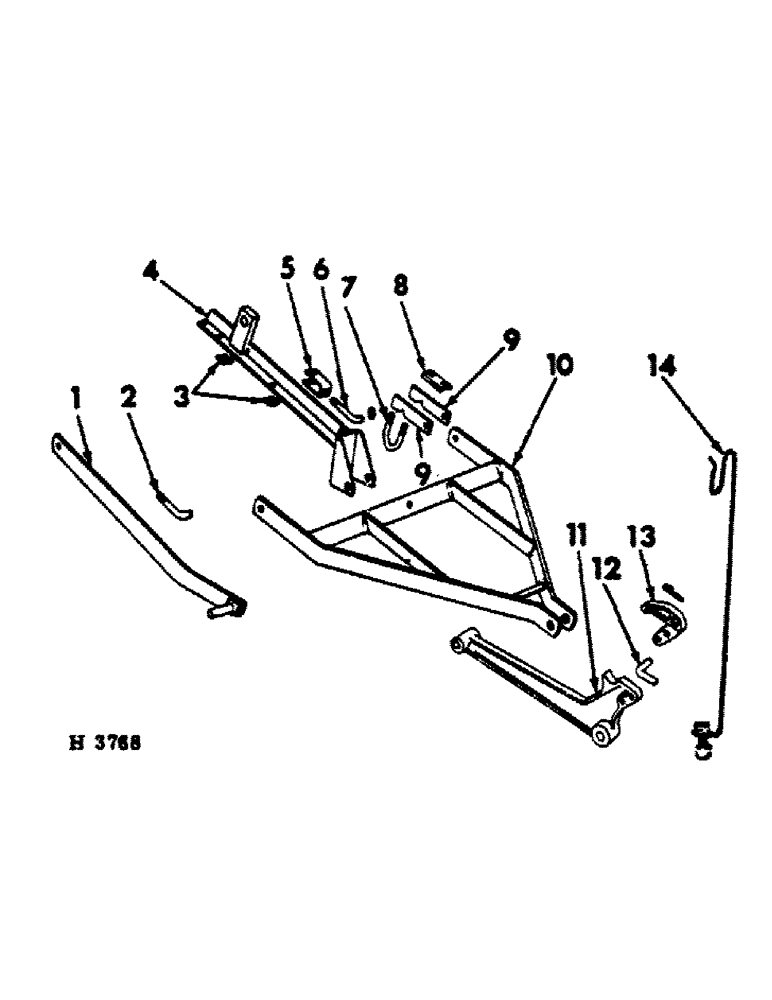

Запчасти Case IH 10 (A-31) - HYDRAULIC LIFT PARTS

1

603434R11

ROD, hyd lift (12 x 7 & 13 x 7)

1шт.

VC649

WASHER

29/32 X 1-3/4 X 16 GA WASHER

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

2

603423R1

LINK

lift locking (12 x 7, 13 x 7)

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" JAM NUT

1шт.

21796R1

WASHER

21/23 X 1 X 16 GA WSHERr

1шт.

432-1216

COTTER PIN,3/16" x 1"

1/8 X 1" C-PIN

1шт.

3

603437R1

SPACER, lift frame (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

4

603440R91

FRAME, hyd lid (All sizes)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

603426R1

LOCK, rocker (All sizes)

1шт.

6

603424R1

LINK, lift locking (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" JAM NUT

1шт.

21796R1

WASHER

21/32 X 1 X 16 GA WASHER

1шт.

432-1216

COTTER PIN,3/16" x 1"

1/8 X 1" C-PIN

1шт.

7

603422R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, rockshaft clamp (1 used 12 x 7 & 13 x 7) (2 used other sizes)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (2 used per u-bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 used per u-bolt 5/8"

1шт.

8

603393R1

CHANNEL

PLATE, lift arm clamp (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

9

603427R1

ARM, rockshaft clamp (2 used 12 x 7 & 13 x 7) (4 used other sizes)

1шт.

5530S

PIN

5/8 X 1-5/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

603441R91

YOKE, hyd lift (16 x 7 & 18 x 7)

1шт.

10

603442R91

YOKE, hyd lift (16 x 6, 20 x 6, 24 x 6, 16 x 8 & 20 x 8)

1шт.

10

605151R91

YOKE, hyd lift (16 x 10)

1шт.

11

603421R1

ARM, hyd rocker (All sizes)

1шт.

598845R1

ROCKER ARM TO BRACKET PIN

1шт.

11100P

7/8 X 3-1/2" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (Not 12 x 7 & 13 x 7) 1/4" x 1 1/2"

1шт.

21753R1

WASHER

25/32 X 1-1/2 X 16 GA WASHER

2шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

13

526263R1

RETAINER

hyd cyl

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

651793R1

SUPPORT

hyd hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

2шт.
