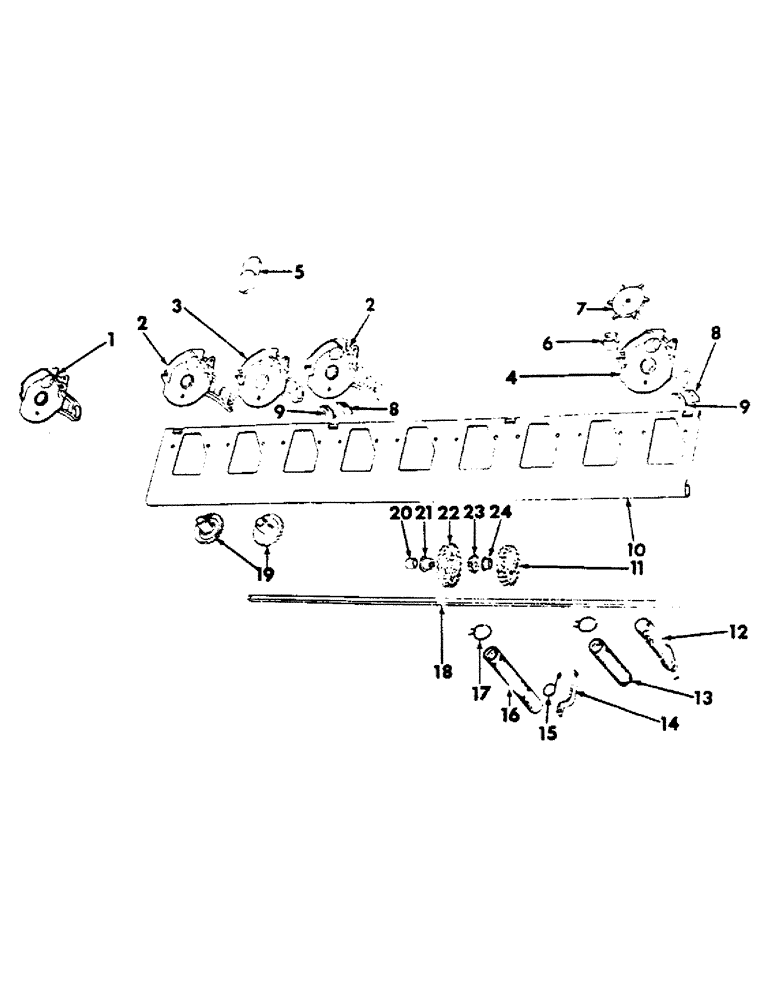

Запчасти Case IH 10 (A-28) - FERTILIZER FEEDSHAFT

1

603451R1

PLATE

bottom end LH (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 20 x 8 & 16 x 10)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" BOLT (2 used per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 used per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt or screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt & screw) 1/4"

1шт.

2

603454R1

PLATE

W/HANGER, intermediate (Note A) (2 used 12 x 7 & 13 x 7) (4 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" BOLT (2 used per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 used per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt or screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt & screw) 1/4"

1шт.

3

603453R1

PLATE

bottom intermediate (8 used 16 x 6, 12 x 7, 16 x 7, 16 x 8 & 16 x 10) (9 used 13 x 7) (10 used 18 x 7) (12 used 20 x 6 & 20 x8) (16 used 24 x 6)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" BOLT (2 used per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 used per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt or screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt & screw) 1/4"

1шт.

4

603452R1

PLATE

bottom end RH (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" BOLT (2 used per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 used per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt or screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt & screw) 1/4"

1шт.

5

603593R1

BLOCK

SHUT-OFF, fertilizer feed (1 per feed)

1шт.

6

603457R1

SPACER

7" bottom plate (11 used 12 x 7) (12 used 12 x 7) (14 used 16 x 7) (16 used 18 x 7)

1шт.

6

604377R1

SPACER

8" bottom plate (14 used 16 x 8) (18 used 20 x 8)

1шт.

6

605153R1

SHIM

SPACER, 10" bottom plate, 14 used 16 x 10

1шт.

10 Drill

1шт.

7

602554R11

DRIVE SPROCKET

WHEEL, star feed (Includes N62414, pin)(1 required per each feed)

1шт.

N62414

PIN,3.96mm OD x 28mm L

WHEEL SHEAR PIN (1 per wheel)

1шт.

8

604403R1

CLAMP

STOP, front hinge (5 used 12 x 7 & 13 x 7) (6 used 16 x 6) (8 used 20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 8) (10 used 20 x 8 & 16 x 10)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

9

603517R1

PLATE, drop bottom, 1959

1шт.

10 Drill

1шт.

18626R11

1/4 X 1/2" CRG BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

604404R1

CLAMP

HINGE, drop bottom (1960 & since) (5 used 12 x 7 & 13 x 7) (6 used 16 x 6) (8 used 20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 8) (10 used 20 x 8 & 16 x 10)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

2шт.

10 Drill

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4 X 1" CRG BOLT

1шт.

10 Combination Drill

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

NOTE: For service of drop bottom less hinge rod, order the new bottom of applicable size, plus the necessary quantity of reference no.'s 8 & 9.

1шт.

10

603524R11

BOTTOM, 12 x 7 drop

1шт.

10

603525R11

BOTTOM, 13 x 7 drop

1шт.

10

603518R11

BOTTOM, 16 x 6 drop LH

1шт.

10

603520R11

BOTTOM, 20 x 6 drop LH

1шт.

10

603522R11

BOTTOM, 24 x 6 drop LH

1шт.

10

603526R11

BOTTOM, 16 x 7 drop LH

1шт.

10

603528R11

BOTTOM, 18 x 7 drop LH

1шт.

10

604382R11

BOTTOM, 16 x 8 drop LH

1шт.

10

606394R11

BOTTOM, 20 x 8 drop LH

1шт.

10

605160R11

BOTTOM, 16 x 10 drop LH

1шт.

10

603519R11

BOTTOM, 16 x 6 drop RH

1шт.

10

603521R11

BOTTOM, 20 x 6 drop RH

1шт.

10

603523R11

BOTTOM, 24 x 6 drop RH

1шт.

10

603527R11

BOTTOM, 16 x 7 drop RH

1шт.

10

603529R11

BOTTOM, 18 x 7 drop RH

1шт.

10

604383R11

BOTTOM, 16 x 8 drop RH

1шт.

10

606395R11

BOTTOM, 20 x 8 drop RH

1шт.

10

605161R11

BOTTOM, 16 x 10 drop RH

1шт.

11

603465R2

GEAR

20T feedshaft drive, 1 used 12 x 7 & 13 x 7, 2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10

1шт.

10 Drill

1шт.

11

607221R2

GEAR, 12T feedshaft drive

1шт.

10 Combination Drill

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 X 3/8" SQ-HD CUP-PT SET SCREW (1 used per gear)

1шт.

12

603572R2

TUBE,1.812" ID, 1.25" OD, 10.25" Length

combined delivery

1шт.

10 Drill

1шт.

12

607289R2

TUBE,1.25" OD, 7" Length

combined delivery

1шт.

10 Combination Drill

1шт.

13

603588R3

TUBE,1.25" ID, 1.687" OD, 51, 3" Length

double disk separate delivery

1шт.

14

603722R2

BRACKET

single disk separate delivery tube

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

603592R1

SPRING CLIP

CLAMP, single disk separate delivery tube lower

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

603589R3

TUBE

single disk separate delivery

1шт.

16

594245R1

TUBE

separate placement separate delivery

1шт.

17

603591R1

SPRING

tube upper

1шт.

18

NOTE: For service of feedshaft (Except 12 x 7 & 13 x 7) dealer to order 1 - 604145R1, feedshaft and cut to applicable length. For 12 x 7, order 1 - 603491R2 and cut to required length. For 13 x 7, order 1 - 603491R2, feedshaft)

1шт.

18

603491R2

BAR

FEEDSHAFT, 13 x 7 - 86-1/4" long

1шт.

18

FEEDSHAFT, 12 x 7 - 79-1/4" long

1шт.

18

FEEDSHAFT, 20 x 8 - 74-1/4" long

2шт.

18

FEEDSHAFT, 16 x 10- 72-1/8" long

2шт.

18

FEEDSHAFT, 24 x 6 - 68-1/4" long

2шт.

18

FEEDSHAFT, 18 x 7 & 16 x 8 - 58-1/4" long

2шт.

18

FEEDSHAFT, 20 x 6 - 56-1/4" long

2шт.

18

FEEDSHAFT, 16 x 7 - 51-1/4" long

2шт.

18

FEEDSHAFT, 16 x 6 - 44-1/4" long

2шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 X 7/8" SQ-END PIN (1 used per feedshaft)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 used per feedshaft 3/16" x 1"

1шт.

19

F282C

GEAR

feedshaft bevel (1 per feed)

1шт.

20

C13756

SPACER

1 used 12 x 7 & 13 x 7, 2 used 16 x 7 & 18 x 7

1шт.

10 Drill

1шт.

20

256815R1

SPACER, 16 x 8, 20 x 8

2шт.

10 Drill

1шт.

20

513656R1

SPACER, 16 x 10

2шт.

10 Drill

1шт.

20

355682R1

SPACER,3/4" Pipe x 3/4"

16 x 8

1шт.

10 Combination Drill

1шт.

21

603461R1

TRUNNION

spur gear, 1 used 12 x 7 & 13 x 7, 2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10

1шт.

10 Drill

1шт.

22

603466R1

GEAR

10T & 20T spur, 1 used 12 x 7 & 13 x 7, 2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10

1шт.

10 Drill

1шт.

N11791

WASHER

SPACER WASHER

1шт.

23

603463R1

GEAR

PINION, 12T bevel gear (1 per feed)

1шт.

24

603462R1

TRUNNION

bevel pinion (1 per feed)

1шт.

N11791

WASHER

SPACER WASHER

1шт.
