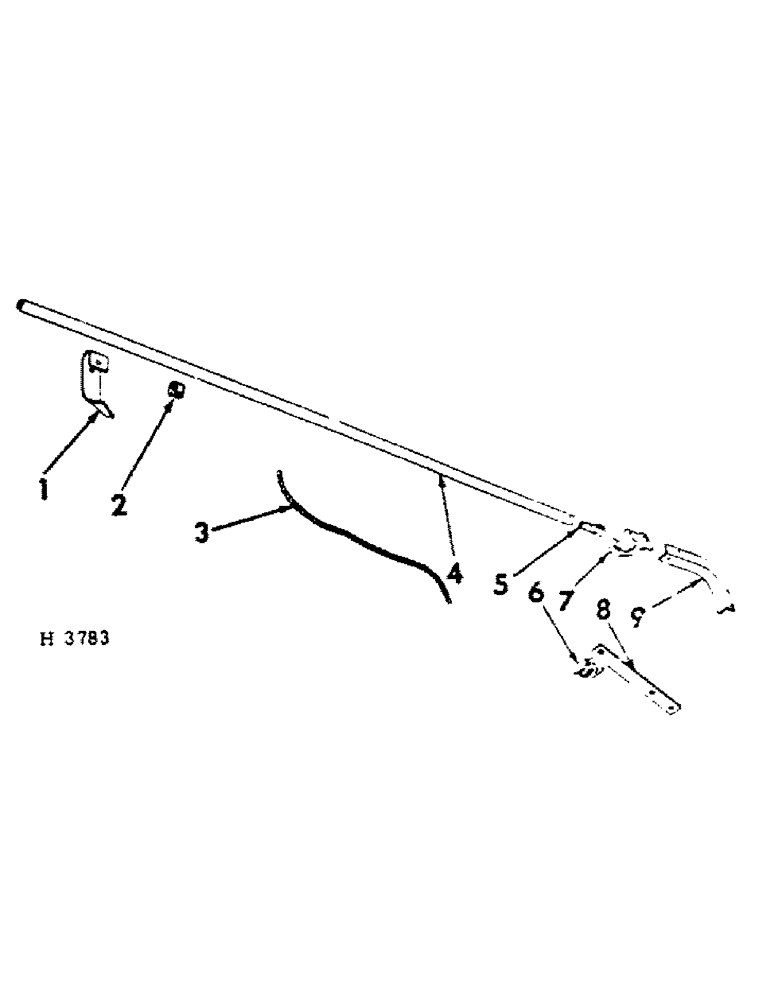

Запчасти Case IH 10 (A-27) - AUTOMATIC BAR MARKER

1

13006A

SHOE, marker LH

1шт.

1

13005A

SHOE, marker RH (Shown)

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16" X 2" BOLT

2шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

2

P140W

CLAMP, marker rope

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

ROPE, 5/16" sisal x 21 ft marker (Dealer to purchase locally)

1шт.

4

N32143

PIPE, bar marker

2шт.

5

1839A

HINGE, marker pipe

2шт.

112092

5/16 X 1-1/4" STRAIGHT PIN

2шт.

6

PA246W

GUIDE, rope

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT

2шт.

138372R1

13/32 X 1-1/4 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

1838A

CAM, marker LH

1шт.

7

1837A

CAM, marker RH (Shown)

1шт.

U5362

AXLE PIN

7/16 X 2-5/8" STD-HD-DLD PIN

2шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

2шт.

Q5028

WASHER

15/32 X 1 X 11 GA WASHER

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

603683R1

BRACKET, marker front

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

603681R1

BRACKET, rear support LH

1шт.

9

603682R1

BRACKET, rear support RH (Shown)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT

2шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8 X 2" CRG BOLT

2шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

3/8 X 2-1/2" CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.
