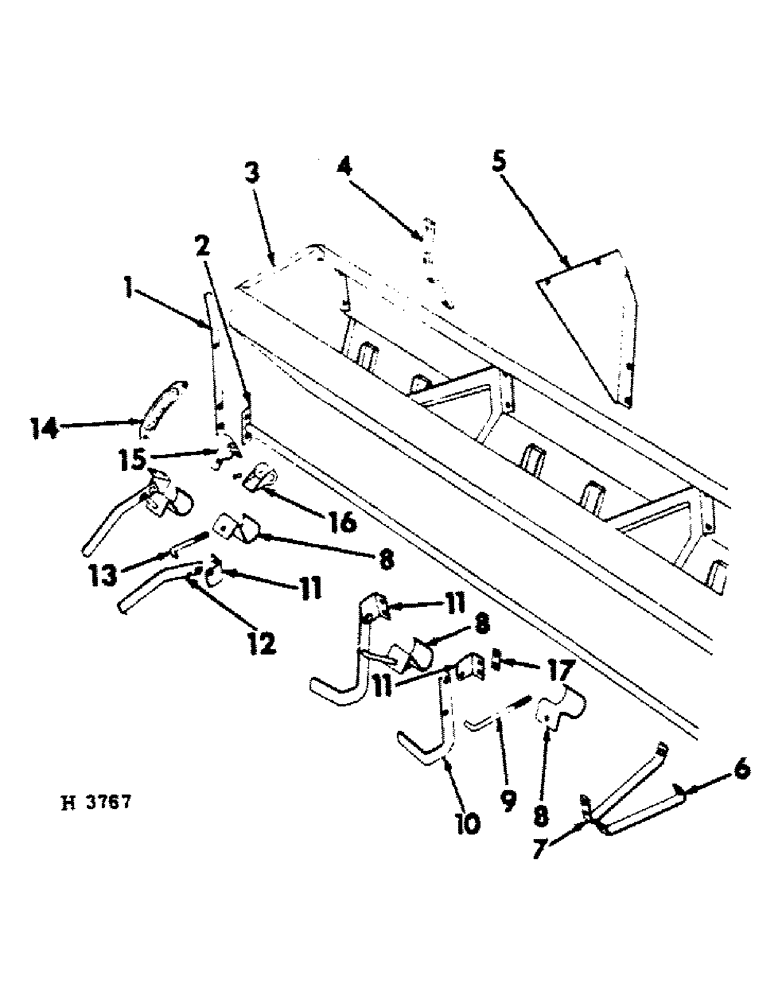

Запчасти Case IH 10 (A-26) - FERTILIZER HOPPER

1

605116R1

LEVER

fertilizer indicator (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT (2 used per lever)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT (1 used per lever)

1шт.

129-419

WING NUT,5/16"-18

5/16" WING NUT,WASHER, LOCk (1 used per bolt)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

2

NOTE: For service of rod w/welded lever, order new rod of applicable size & 1 - 605116R1, lever.

1шт.

2

605117R91

ROD, 16 x 6 gate

2шт.

2

605118R91

ROD, 20 x 6 gate

2шт.

2

605119R91

ROD, 24 x 6 gate

2шт.

2

605120R91

ROD, 12 x 7 gate

1шт.

2

605121R91

ROD, 13 x 7 gate

1шт.

2

605122R91

ROD, 16 x 7 gate

2шт.

2

605123R91

ROD, 18 x 7 gate

2шт.

2

605124R91

ROD, 16 x 8 gate

2шт.

2

606397R91

ROD, 20 x 8 gate

2шт.

2

605169R91

ROD, 16 x 10 gate

2шт.

3

NOTE: For the applicable hopper for 10 combination drill refer to "Hopper Unit".

1шт.

3

603580R91

HOPPER, 16 x 6 fertilizer

1шт.

10 Drill

1шт.

3

603581R91

HOPPER, 20 x 6 fertilizer

1шт.

10 Drill

1шт.

3

603582R91

HOPPER, 24 x 6 fertilizer

1шт.

10 Drill

1шт.

3

603583R91

HOPPER, 12 x 7 fertilizer

1шт.

10 Drill

1шт.

3

603584R91

HOPPER, 13 x 7 fertilizer

1шт.

10 Drill

1шт.

3

603585R91

HOPPER, 16 x 7 fertilizer

1шт.

10 Drill

1шт.

3

603586R91

HOPPER, 18 x 7 fertilizer

1шт.

10 Drill

1шт.

3

604390R91

HOPPER, 16 x 8 fertilizer

1шт.

10 Drill

1шт.

3

606406R91

HOPPER, 20 x 8 fertilizer

1шт.

10 Drill

1шт.

3

605171R91

HOPPER, 10 x 10 fertilizer

1шт.

10 Drill

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-3/8" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

603484R1

SPACER, hopper support, 4 used 16 x 6, 12 x 7, 13 x 7 & 16 x 7, 6 used 20 x 6, 18 x 7 & 16 x 78, 7 used 24 x 6, 20 x 6 & 1 x 10

1шт.

10 Drill

1шт.

5

607279R1

SUPPORT, hopper end

2шт.

Combination Drill

1шт.

5

603536R1

SUPPORT, hopper end LH

1шт.

10 Drill

1шт.

5

603537R1

SUPPORT, hopper end RH

1шт.

10 Drill

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

6

603538R1

BRACKET

BRACE, hopper center, 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10

1шт.

10 Drill

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

7

603594R1

BRACE, hopper inside, 1 used 16 x 6, 20 x 6, 12 x 7, 13 x 7, 18 x 7 & 16 x 8, 3 used 16 x 7, 4 used 20 x 8 & 16 x 10

1шт.

10 Drill

1шт.

12872R11

BOLT

5/16 X 1" CRG BOLT W/NUT

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT (1 per brace)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

8

603497R1

CATCH

drop bottom rod (5 used 16 x 6, 12 x 7 & 13 x 7) (7 used 20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 9) (9 used 20 x 8 & 16 x 10)

1шт.

9

603470R1

BOLT,3/8" - 16 x 5.1", Steel

ROD, drop bottom long (1 used 12 x 7 & 13 x 8) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per rod) 3/8"-16, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (1 used per rod) 3/32" x 5/8"

1шт.

10

603501R1

LEVER

drop bottom long (1 used 12 x 7 & 13 x 7) (2 used 16 x , 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/16 X 9/16" FT-HD RIVET (1 per lever)

1шт.

11

603498R1

ANGLE

BRACKET, drop bottom lever (5 used 16 x 6, 12 x 7 & 13 x 7) (7 used 20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 8) (9 used 20 x 8 & 16 x 10)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

603500R1

LEVER

drop bottom short (Used 16 x 6) (4 used 12 x 7 & 13 x 7) (5 used 20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 8) (7 used 20 x 8 & 16 x 10)

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 X 9/16" FT-HD RIVET (1 per lever)

1шт.

13

603469R1

BOLT,3/8" - 16 x 3.3", Steel

ROD, drop bottom short (3 used 16 x 6) (4 used 12 x 7 & 13 x 7) (5 used 20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 8) (7 used 20 x 8 & 16 x 10)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per rod) 3/8"-16, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (1 used per rod) 3/32" x 5/8"

1шт.

14

603458R1

PLATE, feed indicator LH

1шт.

14

603459R1

PLATE, feed indicator RH (Not 12 x 7 & 13 x 7)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(2 used per plate) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

15

603455R1

LEVER GUIDE

BEARING, gate rod center (Note A) (Not 12 x 7 & 13 x 7)

1шт.

15

607276R2

SUPPORT

BEARING, gate rod (5 used 12 x 7) (6 used 16 x 6, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (8 used 20 x 6, 24 x 6, 20 x 8 & 16 x 10)

1шт.

603571R1

OUTER BRG SPECIAL BOLT (Outer brg)

2шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4 X 1" CRG BOLT (1 used per brg)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT (Note A) (24 x 6, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120376

NUT,5/16"-18, G5

1/4" NUT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

16

603456R1

PANEL

GATE, fertilizer feed (1 per feed)

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

5/16 X 1/2" SQ-HD CUP-PT SET SCREW

1шт.

17

603587R1

BAR

PLATE, drop lever backing (Note A) (12 x 7 & 13 x 7)

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
