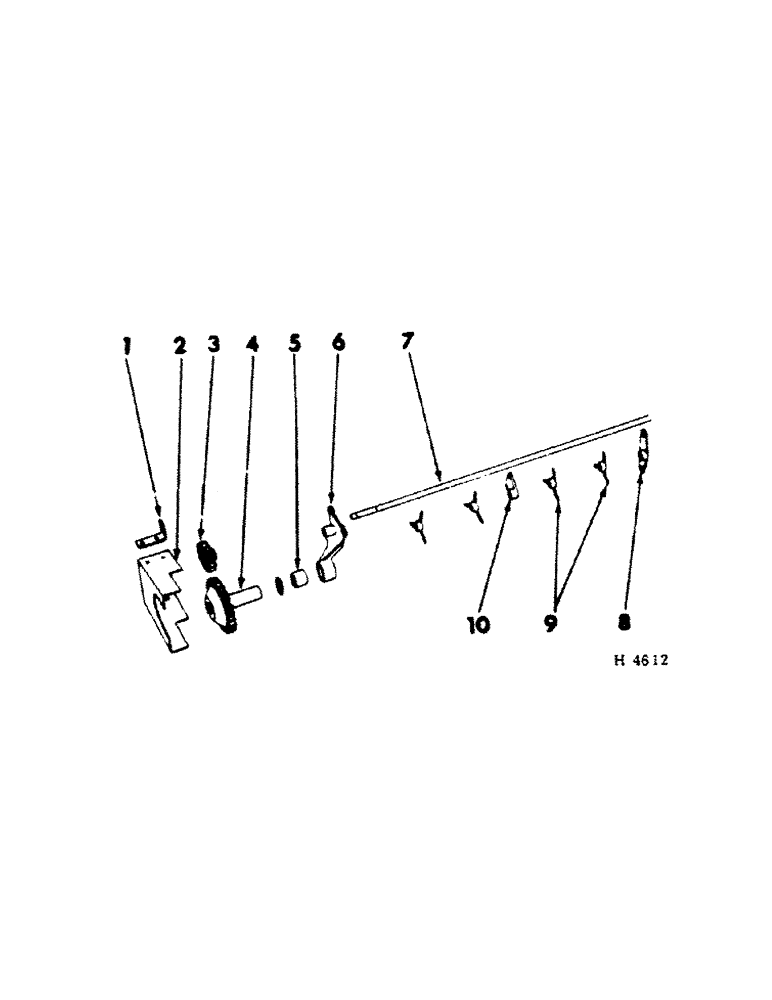

Запчасти Case IH 10 (A-25) - GRAIN AGITATOR, SPECIAL

1

604468R1

BRACKET, agitator guard

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

604469R1

GUARD, agitator

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

6044557R1

GEAR, 13T agitator

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

4

604458R1

GEAR, 24T agitator

1шт.

608700R1

WASHER

1-9/32 X 2 X 16 GA WASHER

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

5

604470R1

BUSHING, agitator bracket

1шт.

6

604459R1

BRACKET, agitator

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

7

604460R1

SHAFT, 16 x 6 agitator (1959-1962)

1шт.

7

604461R1

SHAFT, 20 x 6 agitator (1959-1962)

1шт.

7

604462R1

SHAFT, 24 x 6 agitator (1959-1962)

1шт.

7

604463R1

SHAFT, 12 x 7 agitator

1шт.

7

604464R1

SHAFT, 13 x 7 agitator

1шт.

7

604465R1

SHAFT, 16 x 7 agitator

1шт.

7

604466R1

SHAFT, 18 x 7 agitator

1шт.

7

604467R1

SHAFT, 16 x 8 agitator

1шт.

7

606411R1

SHAFT, 20 x 8 agitator

1шт.

7

605184R1

SHAFT, 16 x 10 agitator

1шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

8

604456R1

BEARING, agitator shaft end

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

F900

FINGER, agitator (1 used per feed cup)

1шт.

102870

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

(1 used per finger) Sq Hd, 1/4"-20 x 1/2"

1шт.

10

604455R1

BEARING, agitator shaft (2 used 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (4 used 16 x 10 & 20 x 8)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

5/16 X 3/4" CRG BOLT (2 used per brg)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120376

NUT,5/16"-18, G5

(1 used per bolt) 5/16"-18, G5

1шт.
