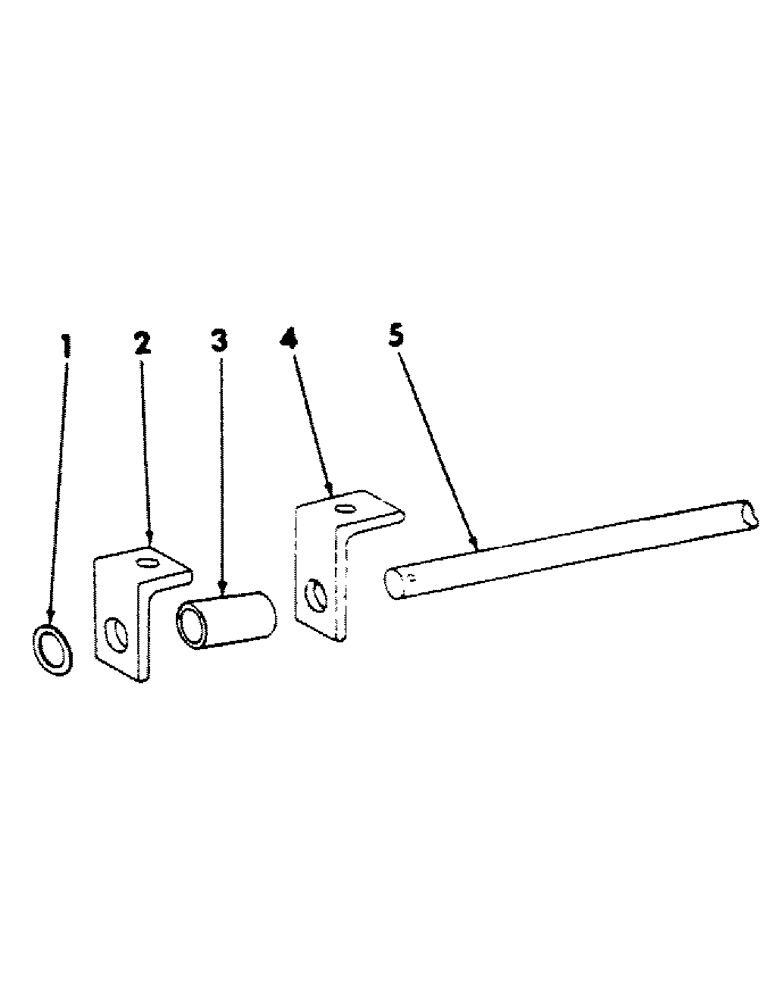

Запчасти Case IH 10 (A-24) - FURROW OPENER DRAWBAR PIVOT SHAFT

1

Q3501

WASHER

25/32 x 1-1/4 x 16 ga (2 per shaft)

1шт.

2

603149R1

BRACKET, pivot shaft outer

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

C13756

SPACER

pivot shaft (14 used 16 x 6 machine) (18 used 20 x 6 machine) (22 used 24 x 6 machine)

1шт.

3

603262R1

SPACER

pivot shaft (11 used 12 x 7 machine) (12 used 13 x 7 machine) ( 14 used 16 x 7 machine) (16 used 18 x 7 machine)

1шт.

3

652415R1

SPACER

pivot shaft (3/4 x 3") (12 used 16 x 8 machine) (14 used 20 x 8 machine)

1шт.

3

578725R1

SPACER, pivot shaft (2 used 16 x 8 machine) ( 4 used 20 x 8 machine)

1шт.

3

603079R1

SPACER, pivot shaft (3/4 x 5/16") (4 used 16 x 8 machine) (4 used 16 x 10 machine) (6 used 20 x 8 machine)

1шт.

3

605141R1

SPACER

pivot shaft (3/4 x 5") (12 used 16 x 10 machine)

1шт.

3

604337R1

SPACER, pivot shaft (3/4 x 4-3/4") (2 used 16 x 10 machine)

1шт.

4

603148R1

BRACKET, pivot shaft intermediate (4 used 12 x 7 & 13 x 7 machine) (6 used 16 x 7, 18 x 7, 16 x 8 & 16 x 6) (8 used 20 x 6, 24 x 6, 20 x 8 & 16 x 10)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT (1 per bracket)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

5

603153R1

SHAFT, drawbar pivot (16 x 6)

2шт.

5

603154R1

SHAFT, drawbar pivot (20 x 6)

2шт.

5

603155R1

SHAFT, drawbar pivot (24 x 6)

1шт.

5

603156R1

SHAFT, drawbar pivot (12 x 7)

1шт.

5

603157R1

ROD

SHAFT, drawbar pivot (13 x 7)

1шт.

5

603158R1

SHAFT, drawbar pivot (16 x 7)

2шт.

5

603159R1

SHAFT, drawbar pivot (18 x 7)

2шт.

5

603159R1

SHAFT, drawbar pivot (16 x 8 prior to 1961 season)

2шт.

5

606158R1

SHAFT, drawbar pivot (16 x 8 - 1961 season and since)

2шт.

5

606377R1

SHAFT, drawbar pivot (20 x 8)

2шт.

5

SHAFT, drawbar pivot (16 x 10) (Prior to 1961 season order 1 - 606159R1, shaft & 1 - 603079R1, spacer)

2шт.

5

609159R1

SHAFT, drawbar pivot (16 x 10) (1961 season and since)

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

3/16 X 1-1/2" C-PIN (2 per shaft)

1шт.

178375R1

WASHER

25/32 X 1-1/4 X 16 GA WASHER (2 used per shaft)

1шт.
