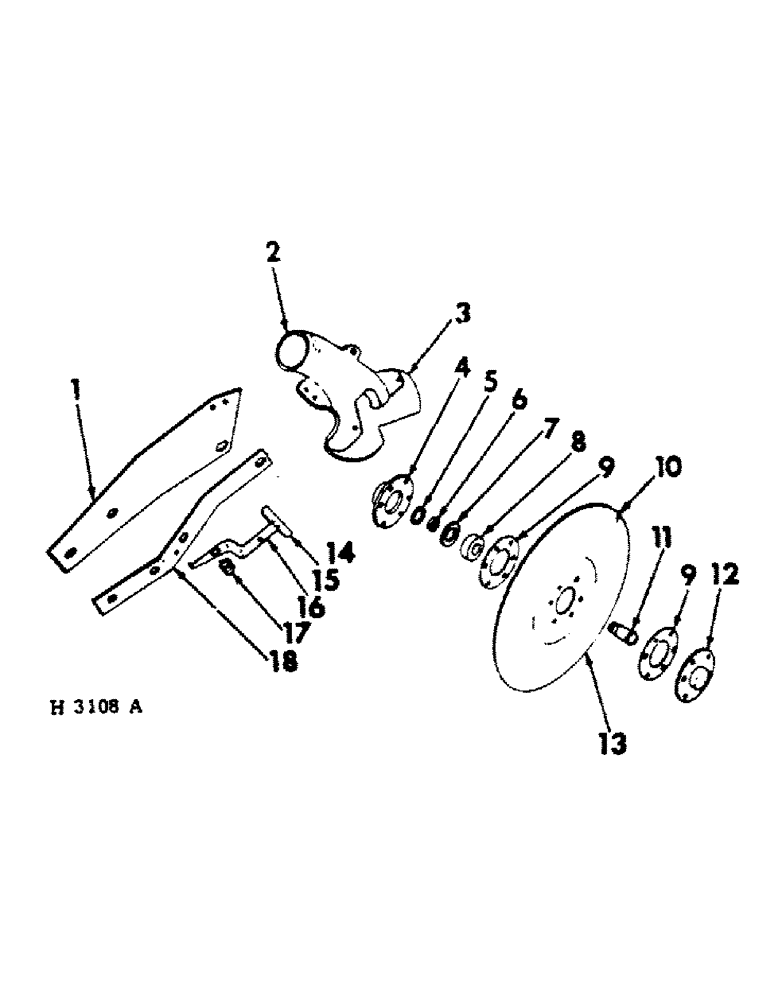

Запчасти Case IH 10 (A-22) - SEPARATE PLACEMENT FERTILIZER FURROW OPENER, SINGLE DISK SEALED BEARING TYPE

1

594237R1

BRACE, drawbar inner LH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2 X 3" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

594238R1

BRACE, drawbar inner RH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2 X 3" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

594249R91

BOOT

deep seeding notched landside LH (Includes 1 - 606154R1, landside & 2 - 106913, rivet)

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

594250R91

BOOT

deep seeding notched landside RH (Includes 1 - 606155R1, landside & 2 - 106913, rivets)

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

606154R1

LANDSIDE

deep seeding notched LH

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

5/16 X 5/8" TRUSS-HD RIVET

2шт.

3

606155R1

LANDSIDE

deep seeding notched RH

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

5/16 X 5/8" TRUSS-HD RIVET

2шт.

4

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

REATINER, brg

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" SMALL BT-HD SOLID RIVET

6шт.

5

602993R1

WASHER

SEAL, brg dirt

1шт.

6

602998R1

SPACER, seal retainer

1шт.

7

602994R1

FLANGE

brg seal

1шт.

8

602996R91

BEARING

single disk

1шт.

9

602992R1

GASKET

brg retainer

2шт.

10

603004R1

BLADE

DISK, single

1шт.

11

602987R1

BOLT

BOLT, single disk

1шт.

425-1110

NUT,5/8"-18, G5

5/8" NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

591714R1

WASHER

23/32 X 1-1/4 X 16 GA WASHER

1шт.

12

602992R1

GASKET

CAP, disk

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" SMALL BT-HD SOLID RIVET

6шт.

13

603005R91

DISC

DISK ASSEMBLY, single, Composed of

1шт.

602996R91

BEARING

1шт.

603004R1

BLADE

1шт.

602987R1

BOLT

BOLT

1шт.

602990R1

CAP

1шт.

602994R1

FLANGE

1шт.

602992R1

GASKET

2шт.

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

14

591714R1

WASHER

23/32 x 1-1/4 x 16 ga

1шт.

15

W7008

BLADE

SCRAPER, disk dirt

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

16

603620R11

BLADE

SCRAPER, single disk LH (Includes 1 - W7008, scraper & 2 - 106883, rivets)

1шт.

W4435

PIN

3/8 X 1-3/8" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

16

603621R11

PACKAGE

SCRAPER, single disk RH (Includes 1 - W7008, scraper & 2 - 106883, rivets)

1шт.

W4435

PIN

3/8 X 1-3/8" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

17

N32176

SPRING

disk scraper

1шт.

18

594235R1

BRACE, drawbar outer LH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2 X 3" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

594236R1

BRACE, drawbar outer RH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2 X 3" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
