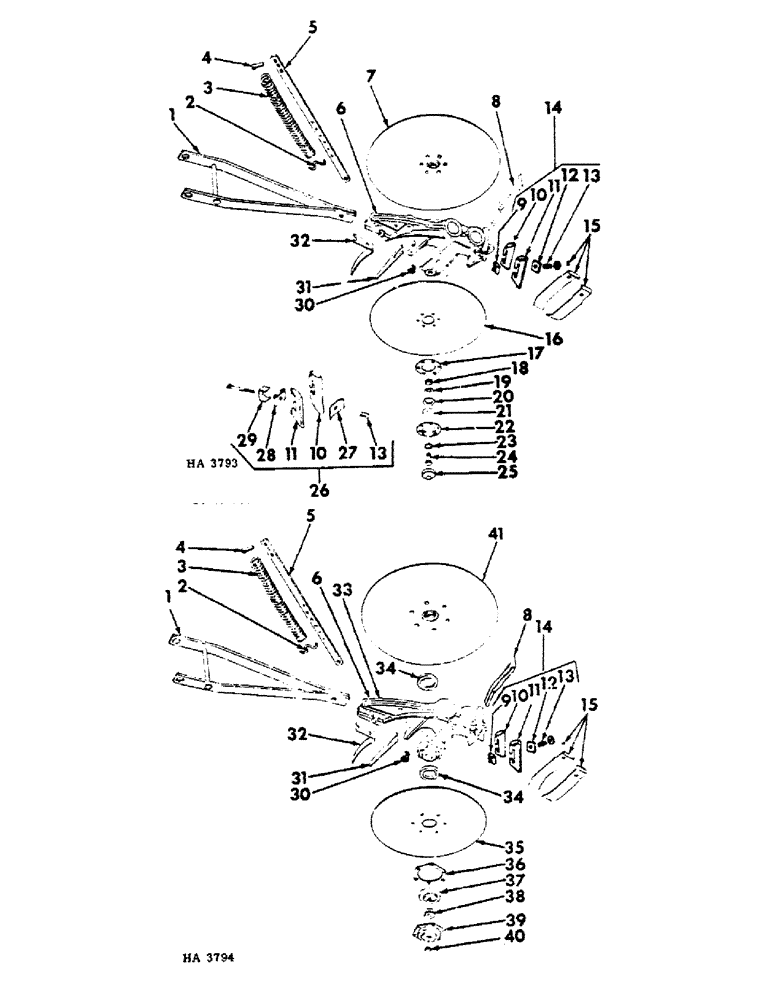

Запчасти Case IH 10 (A-20) - SEALED AND PLAIN BEARING DOUBLE DISK FURROW OPENER

1

603668R91

DRAWBAR, front rank

1шт.

1

603669R91

DRAWBAR, rear rank

1шт.

2

F6366

LOCK

pressure spg

1шт.

3

N42899

SPRING

pressure rod

1шт.

4

605964R1

CLIP

flat cotter

1шт.

5

603666R1

ROD

front rank pressure spg

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

1шт.

5

603667R1

ROD

rear rank pressure spg

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

1шт.

6

603663R2

BOOT

double disk

1шт.

Sealed Bearing Furrow Opener

1шт.

6

603662R1

BOOT, double disk

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

6

594239R1

BOOT

double disk

1шт.

Machines equipped w/separate placement furrow opener

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

1-3/8" BUTTON PLUG

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

1шт.

271501

SOCKET

7/16" NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

6

598933R91

BOOT

ASSEMBLY, double disk, Includes applicable boot & 1 - 603822R92, scraper

1шт.

Sealed Bearing Furrow Opener

1шт.

6

598934R91

BOOT

ASSEMBLY, double dis, Includes applicable boot & 1 - 603822R92, scraper

1шт.

Machines equipped w/separate placement furrow opener

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

1-3/8" BUTTON PLUG

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

1шт.

NLS

NO LONGER SERVICED

7/16" NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

602996R91

BEARING

1шт.

603013R2

PLOW DISC

BLADE

1шт.

602994R1

FLANGE

1шт.

602992R1

GASKET

1шт.

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

6шт.

8

603590R1

DEFLECTOR

fertilizer (Special)

1шт.

9

N62537

HINGE

inside scraper

1шт.

13375R1

5/16 X 2-1/2" SQ-HD MACH. BOLT

1шт.

230-4115

LOCK NUT,5/16"-18, GA

11/32 X 7/8 X 16 GA WASHER

1шт.

Q398

WASHER

11/32 X 7/8 X 16 GA WASHER

1шт.

10

605974R1

BLADE

SCRAPER, disk inside RH

1шт.

11

605975R1

BLADE

SCRAPER, disk inside LH

1шт.

12

N62538

KNIFE ASSY

SPREADER, inside scraper (1960 & since)

1шт.

13

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

14

603822R92

BLADE

SCRAPER ASSEMBLY, disk inside, Composed of

1шт.

13375R1

BOLT

1шт.

N62537

HINGE

1шт.

230-4115

LOCK NUT,5/16"-18, GA

NUT

1шт.

605974R1

BLADE

SCRAPER

1шт.

605675R1

SCRAPER

1шт.

N62536

VALVE SPRING

SPRING

1шт.

N62538

KNIFE ASSY

SPREADER

1шт.

Q398

WASHER

1шт.

15

598935R91

STRIPPER PACKAGE

PACKAGE, disk outside scraper

1шт.

16

603013R2

PLOW DISC

BLADE, furrow opener

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" B-HD RIVET

12шт.

17

602992R1

GASKET

paper

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

18

602988R1

SPACER

seal retainer

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

19

602994R1

FLANGE

brg seal

1шт.

Sealed Bearing Furrow Opener

1шт.

20

602993R1

WASHER

SEAL, dirt

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

21

602996R91

BEARING

disk ball

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

22

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

ball brg

2шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" B-HD RIVET

12шт.

23

141706

WASHER

11/16" int-t lk

2шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

24

603010R1

BOLT (SPREADER)

BOLT, LH thread disk

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

24

603011R1

BOLT (SPREADER)

BOLT, RH thread disk

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

25

603012R1

DUST CAP

CAP, brg dirt

2шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

26

598443R91

SPACER

PACKAGE, double disk furrow opener disk spacer, Composed of

1шт.

598420R1

CHANNEL

1шт.

614323R2

CLAMP

CLIP

1шт.

598419R1

CHANNEL

HINGE

1шт.

N62536

VALVE SPRING

SPRING

1шт.

598421R1

WASHER

1шт.

598422R1

WASHER

1шт.

22258R1

WASHER

2шт.

27

614323R2

CLAMP

CLIP, scraper spreader

1шт.

28

598419R1

CHANNEL

HINGE, scraper

1шт.

29

598420R1

CHANNEL, hinge scraper

1шт.

30

598421R1

WASHER

tapered LH (Special)

1шт.

30

598422R1

WASHER

tapered RH (Special)

1шт.

22258R1

WASHER

21/32 X 1 X 22 GA WASHER

2шт.

31

N62294

DEFLECTOR

grain

1шт.

NA62293

GUARD ASSY.

GUARD, disk blade

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

5/16 X 3/4" BOLT

1шт.

Sealed Bearing Furrow Opener

1шт.

Machines equipped w/separate placement furrow opener

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

603671R92

BOOT ASSEMBLY , composed of

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

603662R1

BOOT

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

598935R91

STRIPPER PACKAGE

PACKAGE

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

1-3/8" BUTTON PLUG

1шт.

271501

SOCKET

7/16" NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

34

NA62299

BOOT

WASHER, dust seal

2шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

35

N42360

DISC

BLADE, furrow opener

2шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" B-HD RIVET

12шт.

36

600761R1

GASKET

paper

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

37

NA2623

BLOCK

disk brg

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

38

N2509

PLUG

LH thread block

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

38

N2508

PLUG

RH thread block

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

39

600760R1

HUB

disk

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 9/16" B-HD RIVET

6шт.

40

N62494

PLUG

hub screw

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

41

NC52470

DISC

DISK ASSEMBLY, RH, composed of

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

N42360

DISC

BLADE

1шт.

NA2623

BLOCK

1шт.

600761R1

GASKET

1шт.

600760R1

HUB

1шт.

N2508

PLUG

1шт.

N62494

PLUG

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

6шт.

41

NC52471

DISC

DISK ASSEMBLY, LH, composed of

1шт.

Plain Bearing Furrow Opener, prior to 1964

1шт.

N42360

DISC

BLADE

1шт.

NA2623

BLOCK

1шт.

600761R1

GASKET

1шт.

600760R1

HUB

1шт.

N2509

PLUG

1шт.

N62494

PLUG

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

6шт.
