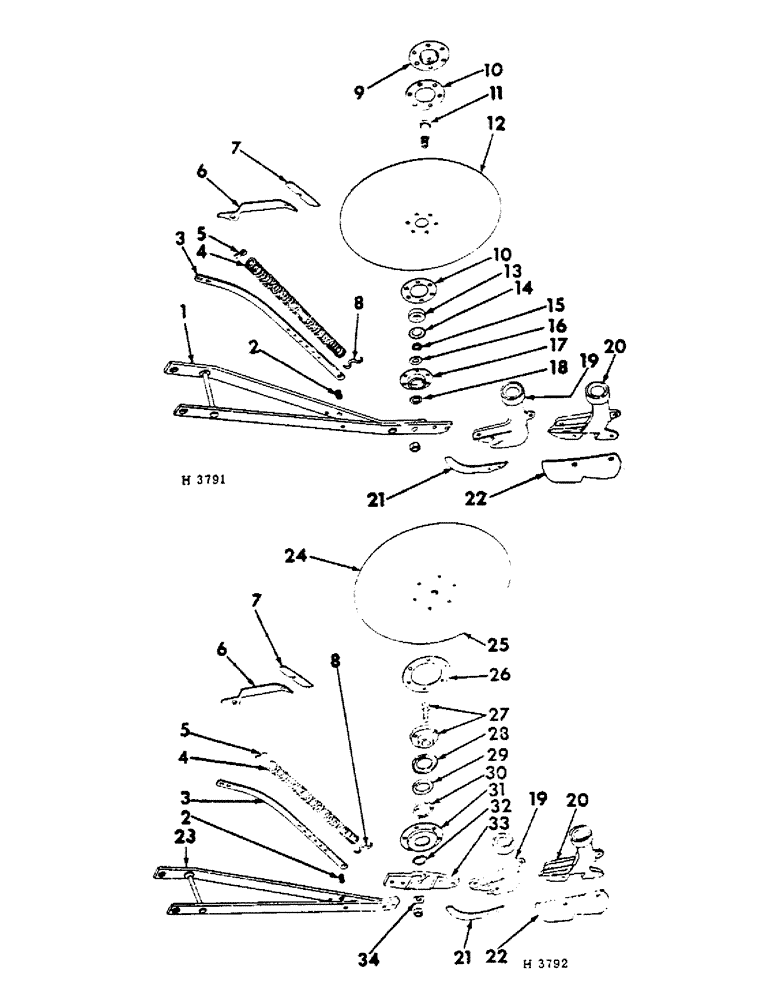

Запчасти Case IH 10 (A-18) - SINGLE DISK FURROW OPENER, SEALED AND PLAIN BEARING
№
Артикул
Название
Примечание
Количество
1
603633R91
DRAWBAR, front rank LH, Includes 1 - 106930, rivet
1шт.
Sealed Bearing Furrow Opener
1шт.
1
603634R91
DRAWBAR, front rank RH, Includes 1 - 106930, rivet
1шт.
Sealed Bearing Furrow Opener
1шт.
1
603635R91
DRAWBAR, rear rank LH, Includes 1 - 106930, rivet
1шт.
Sealed Bearing Furrow Opener
1шт.
1
603636R91
DRAWBAR, rear rank RH, Includes 1 - 106930, rivet
1шт.
Sealed Bearing Furrow Opener
1шт.
106930
RIVET,Tr Hd, 3/8" x 1"
3/8 X 1" TRUSS-HD RIVET
1шт.
2
N32176
SPRING
disk scraper
1шт.
3
603618R1
ROD
pressure spg front rank
1шт.
3
603619R1
ROD
pressure spg rear rank, semi-deep notched landside
1шт.
Sealed Bearing Furrow Opener
1шт.
603632R1
HEADED PIN,9.53mm OD x 76.2mm L
3/8 X 3" STD-HD-DLD PIN
1шт.
Plain Bearing Furrow Opener, front
1шт.
Sealed Bearing Furrow Opener
1шт.
604357R1
3/8 X 2-7/8" STD-HD-DLD PIN
1шт.
Plain Bearing Furrow Opener, rear
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
4
6626
SPRING
pressure rod
1шт.
4
6638
SPRING
pressure rod, semi-deep notched landside
1шт.
Sealed Bearing Furrow Opener
1шт.
5
605964R1
CLIP
flat cotter type pressure rod
1шт.
6
603620R11
BLADE
SCRAPER, disk LH (Includes 2 - 106883, rivets & 1 - W7008, scraper)
1шт.
6
603621R11
PACKAGE
SCRAPER, disk RH (Includes 2 - 106883, rivets & 1 - W7008, scraper)
1шт.
603632R1
HEADED PIN,9.53mm OD x 76.2mm L
3/8 X 3" STD-HD-DLD PIN
1шт.
Plain Bearing Furrow Opener, front
1шт.
604357R1
3/8 X 2-7/8" STD-HD-DLD PIN
1шт.
Plain Bearing Furrow Opener
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
106883
RIVET,Truss Hd, 3/16" x 3/8"
2шт.
8
F6366
LOCK
pressure spg
1шт.
9
602990R1
CAP
disk blade
1шт.
Sealed Bearing Furrow Opener
1шт.
104081
RIVET,But Hd, 1/4" x 1/2"
1/4 X 1/2" B-HD RIVET
6шт.
10
602992R1
GASKET
paper
2шт.
Sealed Bearing Furrow Opener
1шт.
11
602987R1
BOLT
BOLT, disk blade
1шт.
Sealed Bearing Furrow Opener
1шт.
425-110
5/8" - NF NUT
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
12
603004R1
BLADE
disk
1шт.
Sealed Bearing Furrow Opener
1шт.
12
603005R91
DISC
DISK ASSEMBLY, blade, composed of
1шт.
Sealed Bearing Furrow Opener
1шт.
602996R91
BEARING
1шт.
603004R1
BLADE
1шт.
602987R1
BOLT
BOLT
1шт.
602990R1
CAP
1шт.
602994R1
FLANGE
1шт.
602992R1
GASKET
2шт.
602989R1
FLANGE,1.41" ID x 3.25" OD x 0.63"
1шт.
104081
RIVET,But Hd, 1/4" x 1/2"
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
121358
YOKE
1шт.
13
602996R91
BEARING
disk ball
1шт.
Sealed Bearing Furrow Opener
1шт.
14
602994R1
FLANGE
bearing seal
1шт.
Sealed Bearing Furrow Opener
1шт.
15
602988R1
SPACER
seal retainer
1шт.
Sealed Bearing Furrow Opener
1шт.
16
602993R1
WASHER
SEAL, dirt
1шт.
Sealed Bearing Furrow Opener
1шт.
17
602989R1
FLANGE,1.41" ID x 3.25" OD x 0.63"
disk bearing
1шт.
Sealed Bearing Furrow Opener
1шт.
18
575811R1
WASHER
23/32 x 1-1/4 x 16 ga
1шт.
Sealed Bearing Furrow Opener
1шт.
18
575812R1
WASHER
23/32 x 1-1/4 x 11 ga (Notched landside only)
1шт.
19
603637R91
BOOT
single disk LH, Includes 1 - 13933 R1 & 1 - 13943R1, rivets & 1 - 603630R1, scraper
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
3/8 X 1-1/2" CRG BOLT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
19
603638R91
BOOT
single disk RH, Includes 1 - 13933R1 & 1 - 13943R1, rivets & 1 - 603631R1, scraper
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
3/8 X 1-1/2" CRG BOLT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
20
603639R91
BOOT
notched landside LH, Includes 2 - 106913, rivets & 1 - 603679R1, landside
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
3/8 X 1-1/2" CRG BOLT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
20
606156R92
BOOT
semi-deep notched landside LH, Includes 2 - 106913, rivets & 1 - 606154R1, landside
1шт.
Sealed Bearing Furrow Opener
1шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
3/8 X 1-1/2" CRG BOLT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
20
603640R91
BOOT
notched landside RH, Includes 2 - 106913, rivets & 1 - 6306810R1, landside
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
3/8 X 1-1/2" CRG BOLT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
20
606157R92
NO LONGER SERVICED
BOOT, semi-deep notched landside RH, Inlcudes 2 - 106913, rivets & 1 - 606157R92, landside
1шт.
Sealed Bearing Furrow Opener
1шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
3/8 X 1-1/2" CRG BOLT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
21
603630R1
LANDSIDE
SCRAPER, boot toe LH
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
21
603631R1
SHOE
SCRAPER, boot toe RH
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
13933R1
RIVET,Countersunk, 4.75mm OD x 12.7mm L
3/16 X 1/2" - 74 DEGREE CSK-HD RIVET
1шт.
13943R1
RIVET,Csk, 3/16" x 5/8"
3/16 X 5/8" - 74 DEGREE CSK-HD RIVET
1шт.
22
603679R1
LANDSIDE
notched LH
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
22
606154R1
LANDSIDE
semi-deep notch LH
1шт.
Sealed Bearing Furrow Opener
1шт.
22
603680R1
LANDSIDE
notched RH
1шт.
Plain Bearing Furrow Opener
1шт.
Sealed Bearing Furrow Opener
1шт.
22
606155R1
LANDSIDE
semi-deep RH
1шт.
Sealed Bearing Furrow Opener
1шт.
106913
RIVET,Truss Hd, 5/16" x 5/8"
5/16 X 5/8" TR-HD RIVET (2 per landside)
1шт.
23
604078R91
DRAWBAR, front rank LH
1шт.
Plain Bearing Furrow Opener
1шт.
23
604079R91
DRAWBAR, front rank RH
1шт.
Plain Bearing Furrow Opener
1шт.
23
604080R91
DRAWBAR, rear rank LH
1шт.
Plain Bearing Furrow Opener
1шт.
23
604081R91
DRAWBAR, rear rank RH
1шт.
Plain Bearing Furrow Opener
1шт.
24
N42902
BLADE
14" dia disk
1шт.
24
NB42351
DISC
BLADE, disk (Includes 1 - 42900, plug)
1шт.
Plain Bearing Furrow Opener
1шт.
N42900
DISK BLADE PLUG
1шт.
13945R1
RIVET,Csk, 1/4" x 5/8"
1/4 X 5/8" - 74 DEGREE CSK-HD RIVET
6шт.
25
N52729
DISC
DISK, furrow opener (Note B) Composed of
1шт.
NB42351
DISC
BLADE
1шт.
N2614
BLOCK
1шт.
620155R11
BOLT
1шт.
N62375
GASKET
1шт.
N2615
HUB
1шт.
12345R1
RIVET
6шт.
120371
NUT,1/2"-20, G5
1шт.
26
N62375
GASKET
paper
1шт.
Plain Bearing Furrow Opener
1шт.
27
N2614
BLOCK
blade brg
1шт.
Plain Bearing Furrow Opener
1шт.
620155R1
BOLT (SPREADER)
1/2-NF X 1-5/8" SQ-HD BOLT
1шт.
120371
NUT,1/2"-20, G5
1шт.
28
N2616
WASHER
RING, dust
1шт.
29
M10
FELT
WASHER, dust seal felt
1шт.
Plain Bearing Furrow Opener
1шт.
30
620075R1
RETAINER
felt LH
1шт.
Plain Bearing Furrow Opener
1шт.
30
620076R1
RETAINER
felt RH
1шт.
Plain Bearing Furrow Opener
1шт.
31
N2615
HUB
disk
1шт.
Plain Bearing Furrow Opener
1шт.
13945R1
RIVET,Csk, 1/4" x 5/8"
1/4 X 5/8" - 74 DEGREE CSK-HD RIVET
6шт.
32
615991R1
WASHER
1-3/32 x 1-1/2 x 26 ga
1шт.
Plain Bearing Furrow Opener
1шт.
33
604066R2
HANGER, front LH
1шт.
Plain Bearing Furrow Opener
1шт.
33
604067R2
HANGER, front RH
1шт.
Plain Bearing Furrow Opener
1шт.
33
604068R2
HANGER, rear LH
1шт.
Plain Bearing Furrow Opener
1шт.
33
604069R2
HANGER, rear LH
1шт.
Plain Bearing Furrow Opener
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
34
N32572
CLIP
bolt nut locking
1шт.
